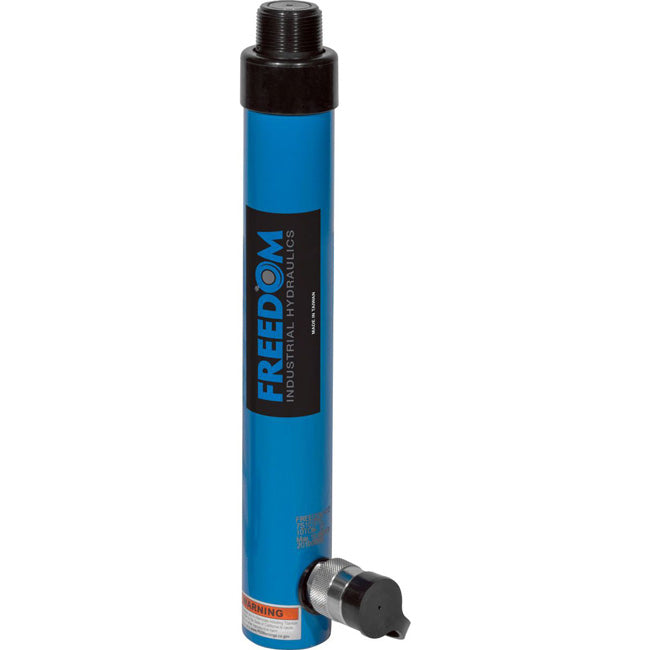

Freedom Hydraulics S1010TH – 10 Ton 10 in. Threaded Cylinder
Freedom Hydraulics S1010TH – 10 Ton 10 in. Threaded Cylinder
Ships within (1 - 3 Business Days)
SKU: S1010TH
Couldn't load pickup availability
Description
10 Ton Threaded Cylinder, 10.00in. Stroke.
Model: S1010TH
- Ideal for frame pulling machines
- Threaded rod and base allows for the use of threaded attachments
- Internal spring for fast return
- 10,000 psi/700 bar maximum working pressure
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Capacity (tons): 10
- Stroke (in.): 10.12
- Model #: S1010TH
- Cylinder Effective Area (in.2): 2.46
- Oil Capacity (in.3): 24.9
- Collapsed Height (in.): 15.87
- Extended Height (in.): 25.98
- Outside Diameter (in.): 2.24
- Cylinder Bore Dia. (in.): 1.77
- Plunger Diameter (in.): 1.49
- Base to Coupler Port (in.): 1.67
- Saddle Distance above Cyl. (in.): 1.25
- Collar Thread: 2 1/4in.-14UN
- Collar Thread Length (in.): 1.26
- Base Thread: 1/1/4in.-11 1/2 NPT
- Rod Thread: 1/1/4in.-11 1/2 NPT
- Saddle Diameter (in.): 1.25
- Weight (lbs.): 15
Documents
Shipping
This item Qualifies for FREE SHIPPING it only applies to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
This Free Shipping service is the slowest cheapest way of shipping and is not time sensitive , However you may upgraded to a faster service at check-out for an additional price which is calculated upon check-out according to Zip and State.
*Note:
If you are having trouble checking out or need additional help please call us at (321)-423-5290 so we can give you an updated shipping quote. (321)-423-5290
OR
If you have a special shipping need you need arranged please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
LIMITED LIFETIME WARRANTY
FREEDOM products and parts are warranted against defects in materials and workmanship for the life of the product or the part.
This warranty is expressly limited to persons who purchase FREEDOM products or parts for the purpose of resale or use in the ordinary course of the buyer’s business.
This warranty does not cover any product or part that has been abused, misused, worn out, neglected, ground or otherwise altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with any instructions regarding its use. In addition, this warranty does not cover any chains, batteries or electric motors, which are sold with FREEDOM products. All electric motors are separately warranted by their manufacturer under the conditions stated in the separate warranty.
THIS WARRANTY IS EXCLUSIVE AND FREEDOM MAKES NO OTHER WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE SPECIFIED PRODUCTS OR PARTS MANUFACTURED AND/OR SOLD BY IT, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER. No agent, employee or representative of FREEDOM, or any other person, has authority to bind FREEDOM to any affirmation, representation or warranty concerning FREEDOM products or parts except as set forth herein.
If any FREEDOM product or part is determined by FREEDOM, in its sole judgment, to be defective, FREEDOM will, at its option, either repair or replace such defective product or part. THIS REMEDY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE FOR ANY DEFECTIVE FREEDOM PRODUCT OR PART AND FOR ALL DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER, INCLUDING, WITHOUT LIMITATION, FREEDOM’S NEGLIGENCE. IN NO EVENT SHALL FREEDOM BE LIABLE TO ANY BUYER OR OTHER PERSON FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES OF ANY KIND OR NATURE WHATSOEVER, WHETHER FOR DEFECTIVE OR NONCONFORMING GOODS, OR UNDER ANY THEORY OF LIABILITY, INCLUDING, BUT NOT LIMITED TO, BREACH OF CONTRACT (EXPRESS OR IMPLIED), NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. The purpose of this exclusive remedy shall be to provide the buyer with repair or replacement of FREEDOM products or parts determined by FREEDOM to be defective in material or workmanship. This exclusive remedy shall not be deemed to have failed of its essential purpose so long as FREEDOM is willing and able to repair or replace said defective product or part in the prescribed manner.
Warranty Registration should be done direct on the Manufacturers website .
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Freedom Hydraulics directly.
