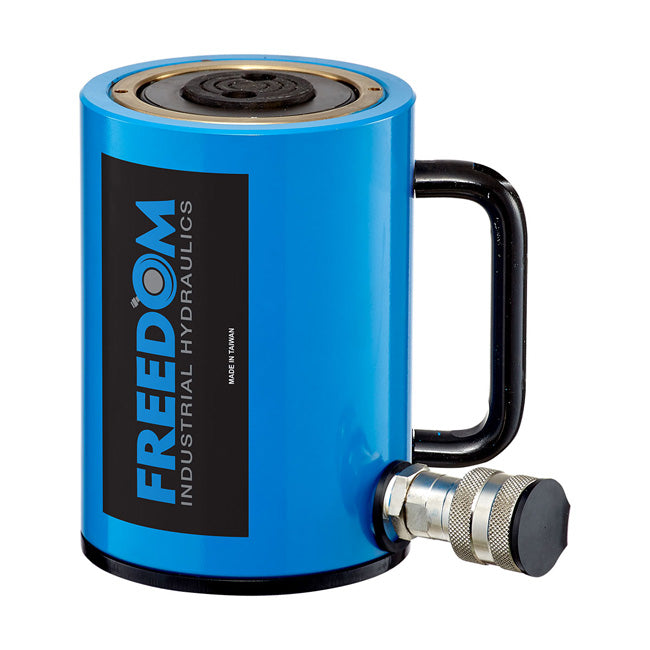

Freedom Hydraulics SA502 – 50 Ton Single Acting Aluminum Cylinder, 2.00 in. Stroke
Freedom Hydraulics SA502 – 50 Ton Single Acting Aluminum Cylinder, 2.00 in. Stroke
Ships within (1 - 3 Business Days)
SKU: SA502
Couldn't load pickup availability
Description
50 Ton Single Acting Aluminum Cylinder, 2.00in. Stroke.
Model: SA502
- Lightweight aluminum body allows for easy carrying and positioning
- Plunger wiper seal keeps out contamination and debris
- Bearing reduces side loading issues and increases life
- Single acting spring load return
- Steel base plate protects the cylinder base
- Stop ring prevents piston from being overextended
- 3/8in. NPTF female coupler and dust cap on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Rated Capacity (tons): 50
- Stroke (in.): 2.02
- Model #: SA502
- Cylinder Effective Area (in.2): 10.99
- Oil Capacity (in.3): 22.2
- Collapsed Height (in.): 7.29 (A)
- Extended Height (in.): 9.31 (B)
- Outside Diameter (in.): 5.12 (C)
- Cylinder Bore Dia. (in.): 3.74 (D)
- Plunger Diameter (in.): 3.15 (E)
- Base to Coupler Port (in.): 0.95 (F)
- Saddle Distance above Cyl. (in.): 0.12 (G)
- Piston Thread Length (in.): 0.59 (I)
- Bolt Bolt Circle (in.): 4.33 (J)
- Thread: M8 x P1.25 (K)
- Thread Depth (in.): 0.47 (L)
- Saddle Diameter (in.): 1.97 (O)
- Weight (lbs.): 19
