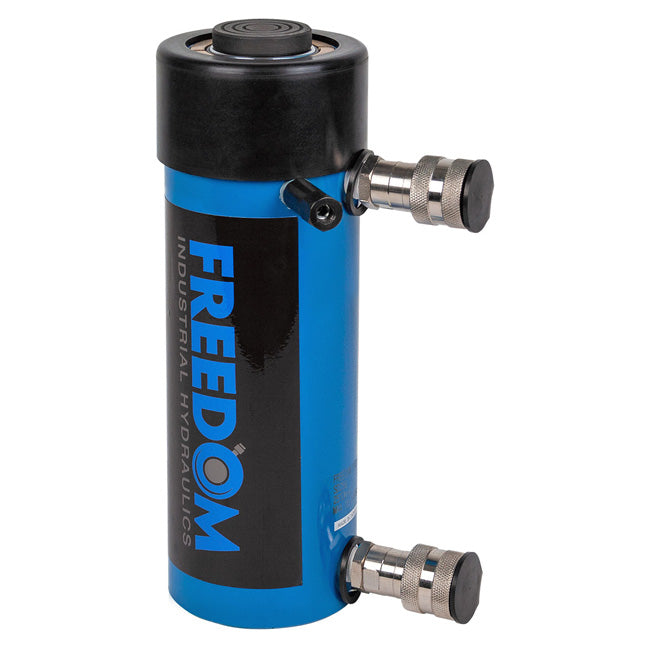

Freedom Hydraulics SD256 – 25 Ton Double Acting Cylinder, 6.00 in. Stroke
Freedom Hydraulics SD256 – 25 Ton Double Acting Cylinder, 6.00 in. Stroke
Ships within (1 - 3 Business Days)
SKU: SD256
Couldn't load pickup availability
Description
25 Ton Double Acting Cylinder, 6.00in. Stroke.
Model: SD256
- Ideal for push and pull applications
- Ideal for applications requiring rapid retraction
- Upper and lower bronze bearings for minimal wear ofcylinder rod and maximizing lifetime of cylinder
- Industrial grade steel construction will withstandeven the most demanding applications
- Chrome plated piston rod eliminates corrosion and rust
- Built in safety valve prevents over-pressurizationwhen retracting cylinder
- 3/8in. NPTF female couplers and dust caps on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Capacity (tons): 25
- Stroke (in.): 6.26
- Model #: SD256 5
- Cylinder Effective Area (in.2): 5.14
- Oil Capacity (in.3): 32.2
- Collapsed Height (in.): 12.42 (A)
- Extended Height (in.): 18.68 (B)
- Outside Diameter (in.): 4 (C)
- Cylinder Bore Dia. (in.): 2.56 (D)
- Plunger Diameter (in.): 2.17 (E)
- Base to Coupler Port (in.): 1 (F)
- Saddle Distance above Cyl. (in.): 0.39 (G)
- Piston Internal Thread (in.): 1 1/2-16UNC (H)
- Piston Thread Length (in.): 1 (I)
- Base Mounting Holes: –
- Bolt Circle (in.): – (J)
- –: – (K)
- Thread Depth (in.): – (L)
- Collar Thread (in.): 4in.-12UNC (M)
- Collar Thread Length (in.): 1.61 (N)
- Saddle Diameter (in.): 2 (O)
- Weight (lbs.): 42
