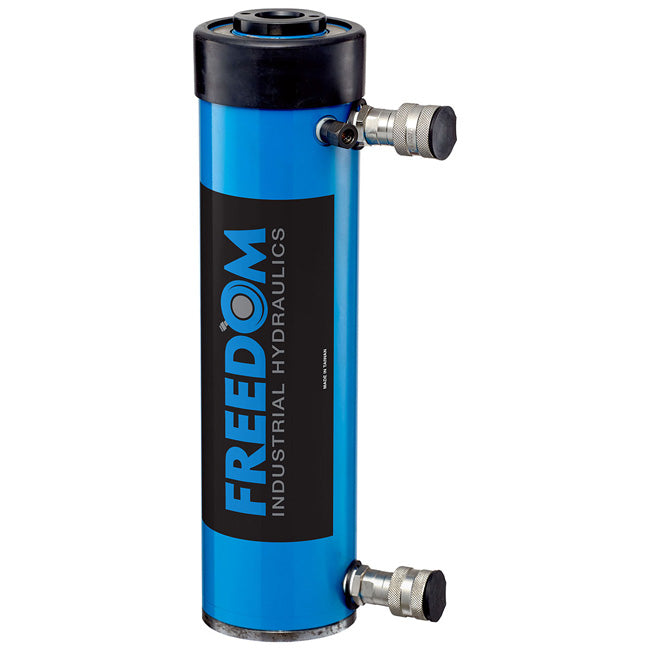

Freedom Hydraulics SHD3010 – 30 Ton Double Acting Hollow Hole Cylinder, 10.00 in. Stroke

• Rated Capacity (tons): 30
• Max. Capacity (Push): 37.0
• Max. Capacity  (Pull): 24.0
• Stroke (in.): 10.06
• Model #: SHD3010
• Cylinder Effective Area (in.2) Adv.: 7.39
• Cylinder Effective Area (in.2) Ret.: 4.71
• Oil Capacity (in.3) Adv.: 74.8
• Oil Capacity (in.3) Ret.: 47.1
• Collapsed Height (in.): 17.1 (A)
• Extended Height (in.): 27.16 (B)
• Outside Diameter (in.): 4.50 (C)
• Cylinder Bore Dia. (in.): 3.54 (D)
• Plunger Diameter (in.): 2.55 (E)
• Center Hole Dia.: 1.31 (F)
• Base to Coupler Port.: 1.00 (G)
• Saddle Distance above Cyl. (in.): 0.37 (H)
• Piston Internal Thread (in.): 1-13/16in.-16 (I)
• Piston Thread Length (in.): 0.78 (J)
• Bolt Bolt Circle (in.): 3.63 (K)
• Thread: 3/8in.-16 (L)
• Thread Depth (in.): 0.62 (M)
• Collar Thread (in.): 4-1/2in.-12 (N)
• Collar Thread Length (in.): 1.69 (O)
• Saddle Diameter (in.): 2.55 (P)
• Weight (lbs.): 58
