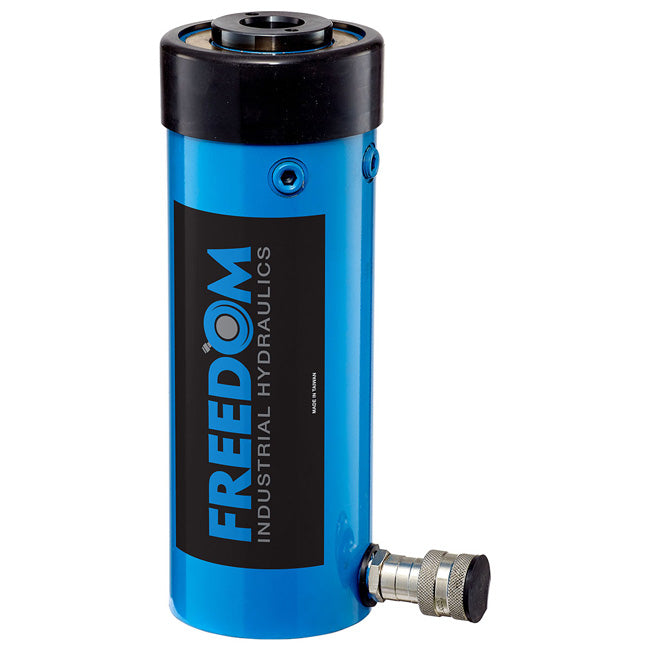

Freedom Hydraulics SHS306 – 30 Ton Single Acting Hollow Hole Cylinder, 6.00 in. Stroke

• Rated Capacity (tons): 30
• Max. Capacity (tons): 37.0
• Stroke (in.): 6.09
• Model #: SHS306
• Cylinder Effective Area (in.2): 7.39
• Oil Capacity (in.3): 45.24
• Collapsed Height (in.): 13.00 (A)
• Extended Height (in.): 19.09 (B)
• Outside Diameter (in.): 4.50 (C)
• Cylinder Bore Dia. (in.): 3.54 (D)
• Plunger Diameter (in.): 2.48 (E)
• Center Hole Dia.: 1.31 (F)
• Base to Coupler Port.: 0.85 (G)
• Saddle Distance above Cyl. (in.): 0.39 (H)
• Piston Internal Thread (in.): 1-13/16in.-16 (I)
• Piston Thread Length (in.): 40.9 (J)
• Bolt Circle (in.): 3.62 (K)
• Thread: 3/8in.-16 (L)
• Thread Depth (in.): 0.55 (M)
• Collar Thread (in.): 4-1/2in.-12 (N)
• Collar Thread Length (in.): 1.65 (O)
• Saddle Diameter (in.): 2.48 (P)
• Weight (lbs.): 43
