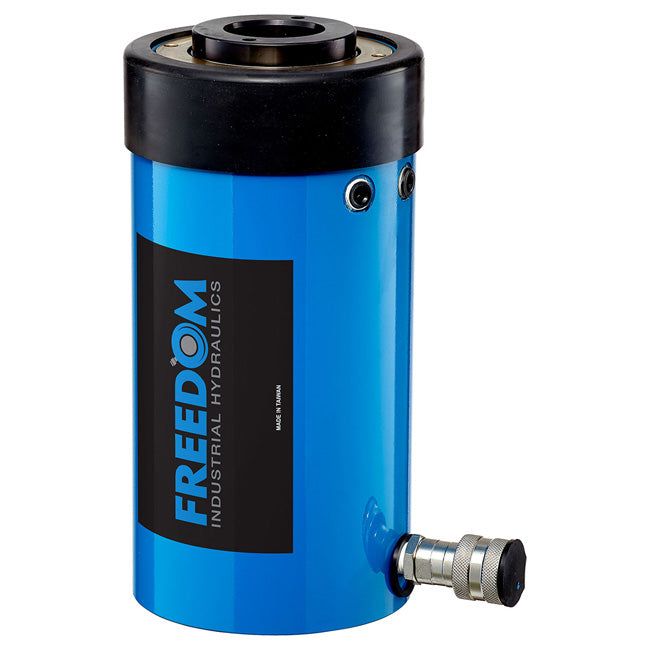

Freedom Hydraulics SHS606 – 60 Ton Single Acting Hollow Hole Cylinder, 6.00 in. Stroke
Freedom Hydraulics SHS606 – 60 Ton Single Acting Hollow Hole Cylinder, 6.00 in. Stroke
Ships within (1 - 3 Business Days)
SKU: SHS606
Couldn't load pickup availability
Description
60 Ton Single Acting Hollow Hole Cylinder, 6.00in. Stroke.
Model: SHS606
- Hollow Hole design allows for both push and pull applications
- Chrome plated piston rod eliminates corrosion and rust
- Dual wiper seals keep out contamination and debris
- Single acting spring load return
- Collar threads for easy fixturing
- 3/8in. NPTF female coupler and dust cap on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Rated Capacity (tons): 60
- Max. Capacity (tons): 69.0
- Stroke (in.): 5.90
- Model #: 0 SHS606
- Cylinder Effective Area (in.2): 13.87
- Oil Capacity (in.3): 83.52
- Collapsed Height (in.): 12.75 (A)
- Extended Height (in.): 18.65 (B)
- Outside Diameter (in.): 6.25 (C)
- Cylinder Bore Dia. (in.): 4.92 (D)
- Plunger Diameter (in.): 3.54 (E)
- Center Hole Dia.: 2.12 (F)
- Base to Coupler Port.: 1.26 (G)
- Saddle Distance above Cyl. (in.): 0.50 (H)
- Piston Internal Thread (in.): 2-3/4in.-16 (I)
- Piston Thread Length (in.): 0.87 (J)
- Bolt Circle (in.): 5.13 (K)
- Thread: 1/2in.-13 (L)
- Thread Depth (in.): 0.55 (M)
- Collar Thread (in.): 6-1/4in.-12 (N)
- Collar Thread Length (in.): 1.91 (O)
- Saddle Diameter (in.): 3.54 (P)
- Weight (lbs.): 93
