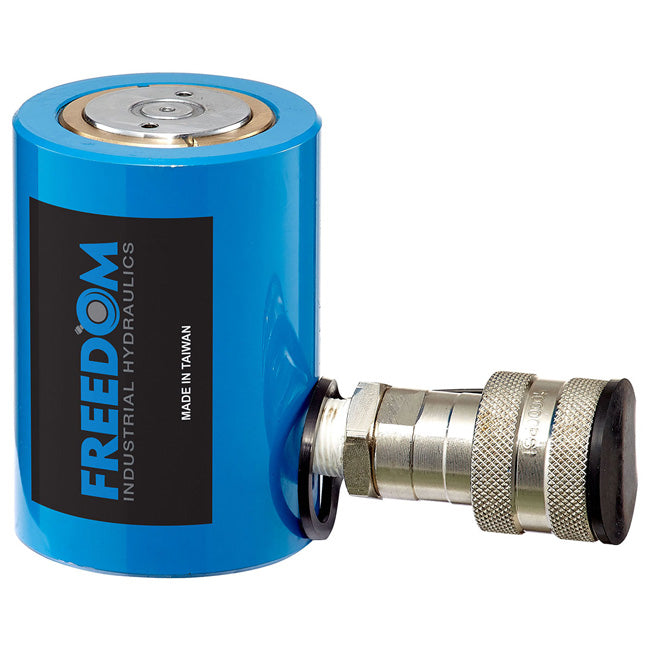

Freedom Hydraulics SL101 – 10 Ton Low Profile, 1.50 in. Stroke
Freedom Hydraulics SL101 – 10 Ton Low Profile, 1.50 in. Stroke
Ships within (1 - 3 Business Days)
SKU: SL101
Couldn't load pickup availability
Description
10 Ton Low Profile Cylinder, 1.50in. Stroke.
Model: SL101
- Designed for use in confined spaces
- Plunger wiper seal keeps out contamination and debris
- Upper and lower bronze bearings for minimal wear ofcylinder rod and maximizing lifetime of cylinder
- Industrial grade spring for increased spring performance and lifetime
- Industrial grade steel construction withstands eventhe most demanding of applications
- • Chrome plated piston rod eliminates corrosion and rust
- 3/8in. NPTF female coupler and dust cap on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Rated Capacity (tons): 10
- Stroke (in.): 1.51
- Model #: SL101
- Cylinder Effective Area (in.2): 2.47
- Oil Capacity (in.3): 3.7
- Collapsed Height (in.): 3.5 (A)
- Extended Height (in.): 5.01 (B)
- Outside Diameter (in.): 2.76 (C)
- Cylinder Bore Dia. (in.): 1.77 (D)
- Plunger Diameter (in.): 1.57 (E)
- Base to Coupler Port: 0.61 (F)
- Saddle Distance above Cylinder: 0.04 (G)
- Piston Thread Length: 0.28 (H)
- Saddle Diameter: 1.42 (I)
- Weight (lbs.): 7
