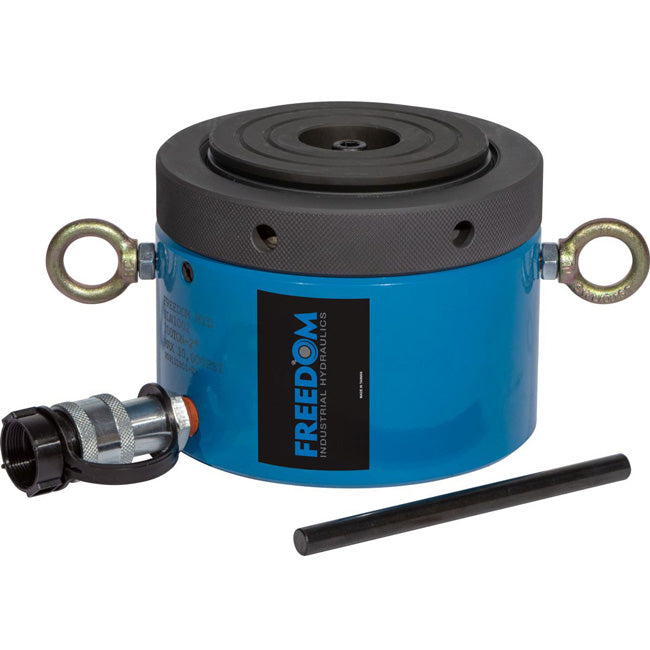

Freedom Hydraulics SLN1002 – 100 Ton Low Profile Locknut Cylinder, 2.00 in. Stroke
Freedom Hydraulics SLN1002 – 100 Ton Low Profile Locknut Cylinder, 2.00 in. Stroke
Ships within (1 - 3 Business Days)
SKU: SLN1002
Couldn't load pickup availability
Description
100 Ton Low Profile Locknut Cylinder, 2.00in. Stroke.
Model: SLN1002
- Single acting cylinder with mechanical safety lock nut
- Designed to support and hold loads without hydraulic pressure
- Designed for use in confined spaces
- Load return
- 10,000 psi/700 bar maximum working pressure
- 3/8in. NPTF female coupler and dust cap on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Rated Capacity (tons): 100
- Stroke (in.): 2.49
- Model #: SLN1002
- Cylinder Effective Area (in.2): 22.73
- Oil Capacity (in.3): 56.6
- Collapsed Height (in.): 5.41
- Extended Height (in.): 7.9
- Outside Diameter (in.): 6.9
- Cylinder Bore Dia. (in.): 5.38
- Plunger Diameter (in.): 5.315
- Base to Coupler Port (in.): 0.85
- Saddle Distance above Cylinder (in.): 0.3
- Saddle Diameter (in.): 4.95
- Weight (lbs.): 58
