Freedom Industrial Hydraulics SF10K 10 Ton Flat Body Cylinder Kit
Part No. SF10K
The Freedom Industrial Hydraulics SF10K Flat Body Cylinder Kit provides 10 tons of hydraulic lifting force in a compact, low-profile design for industrial maintenance, equipment service, machinery positioning, and applications where working clearance is limited. Featuring a 0.40-inch cylinder stroke, this kit is designed for controlled, short-stroke lifting and positioning operations.
The SF10K flat body cylinder configuration allows hydraulic force to be applied in restricted spaces where conventional hydraulic cylinders may be too tall. Its compact design makes it a practical solution for equipment adjustment, machinery maintenance, and industrial applications requiring substantial lifting force with minimal available clearance.
A key advantage of the SF10K is its stackable magnetic shim system. The included magnetic shims provide adjustable working height and help eliminate the need for dangerous improvised cribbing. Their magnetic design helps maintain alignment during setup and positioning.

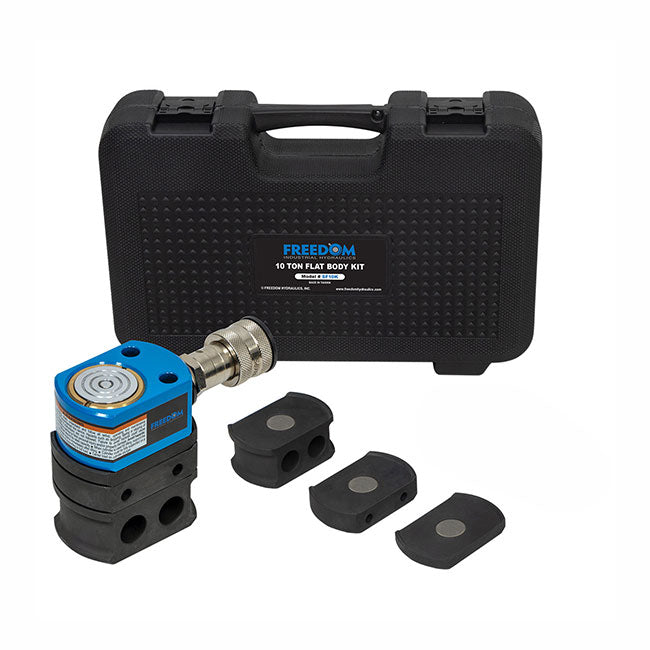

The SF10K kit includes three stackable magnetic shims and a durable blow-molded carrying case for organized storage and convenient transportation between work locations.
Features:
- 10-ton hydraulic cylinder capacity
- Compact flat body design for limited-clearance applications
- 0.40-inch hydraulic cylinder stroke
- Stackable magnetic shims for adjustable working height
- Magnetic shim system helps eliminate dangerous improvised cribbing
- Suitable for industrial maintenance, equipment lifting, and machinery positioning
- Three magnetic shims included
- Blow-molded carrying case for storage and transportation
Kit Includes:
- Freedom SF10K 10 Ton Flat Body Hydraulic Cylinder
- Three stackable magnetic shims
- Blow-molded carrying case
Note: Use the hydraulic cylinder and magnetic shims only within the manufacturer's rated capacities and operating instructions. Hydraulic pump, hose, and coupler inclusion are not specified in the manufacturer's flyer; confirm requirements before ordering.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SF10K Kit Specifications
- Manufacturer: Freedom Industrial Hydraulics
- Kit Model: SF10K
- Product Type: Flat Body Hydraulic Cylinder Kit
- Rated Capacity: 10 Ton
- Cylinder Model: SF10
- Magnetic Shims Included: 3
- Carrying Case: Blow Molded
SF10 Hydraulic Cylinder Specifications & Dimensions
- Rated Capacity: 10 Tons
- Model Number: SF10
- Stroke: 0.40 in.
- Cylinder Effective Area: 2.25 sq. in.
- Oil Capacity: 0.9 cu. in.
- Collapsed Height (A): 1.70 in.
- Extended Height (B): 2.10 in.
- Outside Diameter (C): 3.27 in.
- Cylinder Bore Diameter (D): 1.69 in.
- Plunger Diameter (E): 1.50 in.
- Base to Coupler Port (F): 0.75 in.
- Saddle Diameter (P): 1.50 in.
- Cylinder Weight: 3.31 lbs.
Click image to enlarge cylinder dimensions
Magnetic Shim Dimensions and Weights
| Shim Model | A (in.) | B (in.) | C (in.) | D (in.) | Weight (lbs.) |
|---|---|---|---|---|---|
| SF10K-1 | 0.394 | 2.205 | 3.543 | 3.228 | 0.791 |
| SF10K-2 | 0.787 | 2.205 | 3.543 | 3.228 | 1.515 |
| SF10K-3 | 1.575 | 2.205 | 3.543 | 3.228 | 2.403 |
Click image to enlarge magnetic shim dimensions
