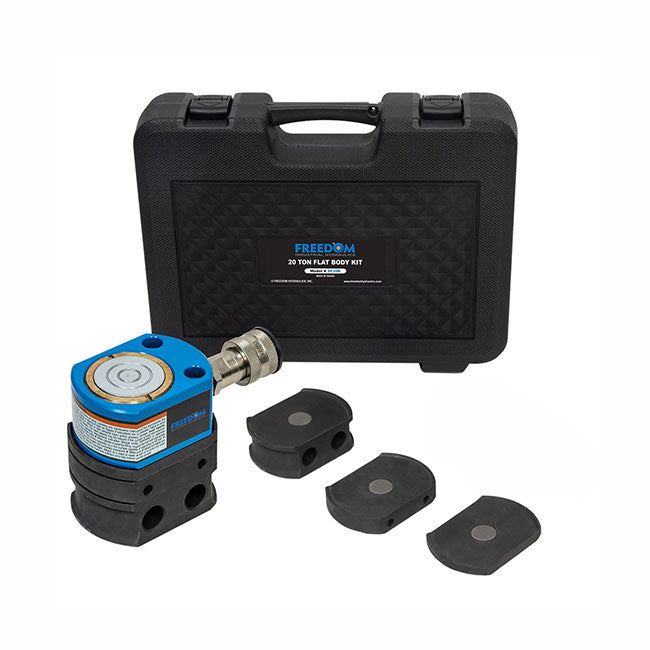

Freedom Industrial Hydraulics SF20K 20 Ton Flat Body Cylinder Kit
Part No. SF20K
The Freedom Industrial Hydraulics SF20K Flat Body Cylinder Kit delivers 20 tons of hydraulic lifting force in a compact, low-profile configuration. Designed for demanding industrial maintenance, heavy-equipment service, machinery positioning, and applications where operating clearance is limited, the SF20K provides substantial lifting capability without the height requirements of conventional hydraulic cylinders.
Featuring a 0.43-inch cylinder stroke, the SF20K is designed for controlled, short-stroke lifting, equipment adjustment, and machinery positioning. Its flat body design makes it especially useful in applications requiring high hydraulic force within confined working spaces.
The SF20K incorporates Freedom's stackable magnetic shim system, allowing operators to adjust working height while reducing reliance on dangerous improvised cribbing. The magnetic shims are designed to stack together, helping simplify setup and positioning during industrial lifting applications.
The kit includes three stackable magnetic shims and a durable blow-molded carrying case for convenient storage, organization, and transport. With its 20-ton capacity, the SF20K is the highest-capacity model in Freedom's SF5K, SF10K, and SF20K flat body cylinder kit lineup.
Features:
- 20-ton hydraulic cylinder capacity
- Heavy-duty flat body design for restricted-clearance applications
- 0.43-inch hydraulic cylinder stroke
- Designed for short-stroke industrial lifting and positioning operations
- Stackable magnetic shims provide adjustable working height
- Magnetic shim system helps eliminate dangerous improvised cribbing
- Suitable for industrial equipment maintenance and machinery positioning
- Three magnetic shims included
- Durable blow-molded carrying case for storage and transportation
Kit Includes:
- Freedom SF20K 20 Ton Flat Body Hydraulic Cylinder
- Three stackable magnetic shims
- Blow-molded carrying case
Note: Use the hydraulic cylinder and magnetic shims only within the manufacturer's rated capacities and operating instructions. Hydraulic pump, hose, and coupler inclusion are not specified in the manufacturer's flyer; confirm requirements before ordering.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SF20K Kit Specifications
- Manufacturer: Freedom Industrial Hydraulics
- Kit Model: SF20K
- Product Type: Flat Body Hydraulic Cylinder Kit
- Rated Capacity: 20 Ton
- Cylinder Model: SF20
- Magnetic Shims Included: 3
- Carrying Case: Blow Molded
SF20 Hydraulic Cylinder Specifications & Dimensions
- Rated Capacity: 20 Tons
- Model Number: SF20
- Stroke: 0.43 in.
- Cylinder Effective Area: 4.38 sq. in.
- Oil Capacity: 1.9 cu. in.
- Collapsed Height (A): 2.05 in.
- Extended Height (B): 2.48 in.
- Outside Diameter (C): 4.02 in.
- Cylinder Bore Diameter (D): 2.36 in.
- Plunger Diameter (E): 2.00 in.
- Base to Coupler Port (F): 0.77 in.
- Saddle Diameter (P): 2.00 in.
- Cylinder Weight: 5.95 lbs.
Click image to enlarge cylinder dimensions
Magnetic Shim Dimensions and Weights
| Shim Model | A (in.) | B (in.) | C (in.) | D (in.) | Weight (lbs.) |
|---|---|---|---|---|---|
| SF20K-1 | 0.394 | 2.992 | 4.331 | 4.016 | 1.310 |
| SF20K-2 | 0.787 | 2.992 | 4.331 | 4.016 | 2.508 |
| SF20K-3 | 1.575 | 2.992 | 4.331 | 4.016 | 4.134 |
Click image to enlarge magnetic shim dimensions
