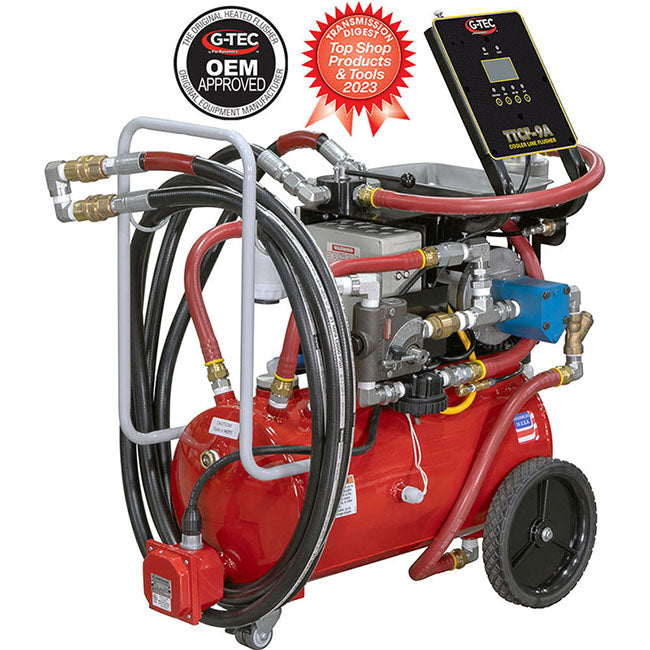

G-Tec 40400060 TTCF-9A Heated Cooler Transmission Line Flusher & Hydraulic System Flusher
G-Tec 40400060 TTCF-9A Heated Cooler Transmission Line Flusher & Hydraulic System Flusher
Ships From Manufacturer in 10 Business Days
SKU: 40400060
Add to cart to see discounted price.
Couldn't load pickup availability
Description
G-Tec 40400060 TTCF-9A by Flow Dynamics Heavy Duty Heated Component Flusher – Variable High Flow w/ Preprogrammed Flush Cycles, Transmission Cooler System & Hydraulic System Flusher
MODEL : TTCF-9A
PART NO: 40400060
The G-Tec 40400060 TTCF-9A is a high-performance hydraulic system flusher designed for heavy-duty transmission cooling systems. It features an adjustable flow rate of 1-8 GPM and offers multiple flush cycles ranging from 15-120 minutes. With a reusable 60 micron cleanable filter screen, the device can efficiently remove contaminants, sludge, varnish deposits, and particles from transmission coolers and lines.
Additionally, the TTCF-9A has a heating circulation mode that can heat up to 140°F in 45 minutes, making it fast and easy to use. It also includes two auto-selected GPM-dependent flush patterns designed to create an agitating scrubbing action that removes debris and waxy varnish.
The reverser valve allows for easy switching of flow direction without removing service hoses, while the control panel provides system monitoring and selection options for pump on/off, heater on/off, flush cycles, and manual air purge.
If you're looking for a reliable and efficient hydraulic system flusher, the G-Tec 40400060 TTCF-9A is the perfect choice for your heavy-duty transmission cooling system.
Available Adapter Kits-Sold Separately (NOT INCLUDED)
-
P/N 40201346 Allison Adapter Kit (Includes 2 each: Connection Hoses, -8 (1/2 JIC), -12 (3/4 JIC), -16 (1” JIC), -20 (1-1/4” JIC))
-
P/N 40300434 Automotive to TTCF Adapter Kit (Reduces heavy duty hose couplers to fit automotive adapters.)
Features
- Powerful 3/4 HP motor
- Requires a dedicated 20-amp or two separate 15-amp circuits
- 13’ heavy duty 3/4” service hoses
- 10 gallon transmission fluid capacity with easy to read level sight glass
- Adjustable flow rate of 1-8 GPM, specially developed for every type of vehicle, from automobiles to heavy duty transmission cooling systems requiring a higher flow rate
- Low fluid sensor shuts off heater and pump
- 60 micron cleanable screen filter with “T” handle simplifies verification of cleanliness
- Reverser valve allows easy flow reversal without removing service hoses
- Two auto-selected GPM-dependent flush patterns designed to specifically inject the optimal amount of air creating an agitating scrubbing action to remove trapped debris and solidified waxy varnish
- Selectable flush times; choose from continuous or 15-120 minutes, with or without air injection
- Auto stop and alert at flush cycle end with flush cycle results displayed
- Air purge allows for easy fluid removal from system and service hoses
- Spin-on filter timer displays hours used
- Two non-bypass spin-on magnetic replaceable system filters (P/N 40300272)
Side-by-side comparison table of the features and specifications for Flo-Dynamics TTCF-9A and TTCF-9B models.
| Features | TTCF-9A | TTCF-9B |
|---|---|---|
| Motor Power | 1 HP | 3/4 HP |
| Electrical | 120V, 60Hz, 20A or two separate 15A circuits | 120V, 60Hz, requires dedicated 20A or two separate 15A circuits |
| Service Hoses | 13’ heavy duty 3/4” service hoses | 13’ heavy duty 3/4” service hoses |
| Fluid Capacity | 20 gallon | 10 gallon |
| Flow Rate | Adjustable from 1-8 GPM | 8 GPM |
| Heater | Heating circulation mode with preset 140°F in 45 min | Preset heater that heats to 140°F in 45 minutes with low fluid cutoff |
| Filter Screen | Reusable 60 micron cleanable screen filter | Reusable 60 micron cleanable screen filter |
| Flush Patterns | Two auto-selected GPM-dependent flush patterns | Select from two preset flush patterns or manual air purge |
| Reverser Valve | Yes, allows easy flow reversal during flush cycles | Yes, allows easy flow reversal without changing service hoses |
| Magnetic Filters | Two non-bypass spin-on magnetic replaceable system filters (P/N 40300272) | N/A |
| Hour Meter | Yes | Yes |
| Temperature Gauge | Yes | Yes |
| Tires | 10” semi-pneumatic tires | 10” semi-pneumatic tires |
| Dimensions | 46” H x 28” W x 25” D | 43” H x 25” W x 24” D |
| Weight | 225 lbs. | 160 lbs. |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Model number: 40400060
- Model name: TTCF-9A
- Flow rate: Adjustable from 1-8 GPM
- Flush cycles: Multiple cycles from 15-120 minutes
- Filter screen: Reusable 60 micron cleanable filter screen
- Heating circulation mode: Can heat up to 140°F in 45 minutes
- Flush patterns: Two auto-selected GPM-dependent flush patterns
- Reverser valve: Allows for easy switching of flow direction without removing service hoses
- Control panel: Displays system flow, pressure, temperature, total hours run, filter timer, and allows for pump on/off, heater on/off, flush cycles, and manual air purge selection.
