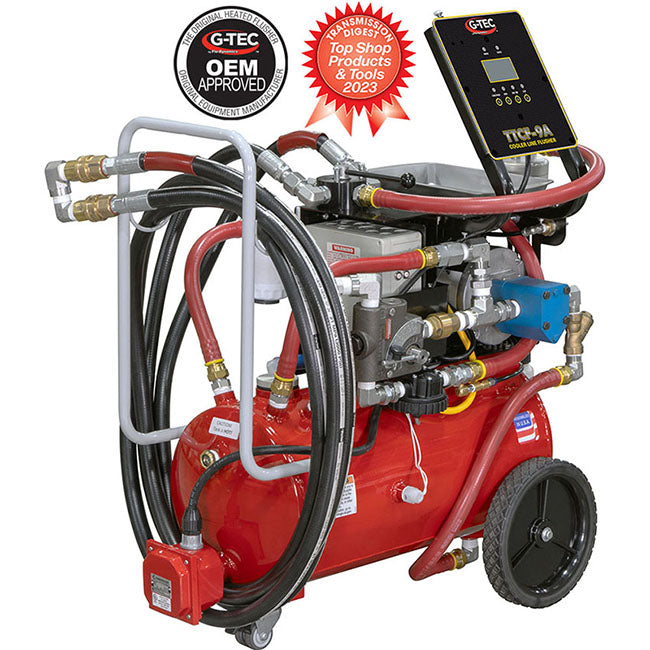

G-Tec 40400060 TTCF-9A Heated Cooler Transmission Line Flusher & Hydraulic System Flusher
- VENDOR:- G-Tec
- SKU# TTCF-9A
High-Performance Hydraulic System Flusher - G-Tec 40400060 TTCF-9A with Adjustable Flow Rate and Heating Circulation Mode
Looking for a high-performance hydraulic system flusher for your heavy-duty transmission cooling system? The G-Tec 40400060 TTCF-9A is the perfect choice. This device offers adjustable flow rates of 1-8 GPM, multiple flush cycles ranging from 15-120 minutes, and a reusable 60 micron cleanable filter screen. Its heating circulation mode heats up to 140°F in just 45 minutes, making it quick and easy to use.
The TTCF-9A also includes two auto-selected GPM-dependent flush patterns that agitate and scrub away debris and waxy varnish. The reverser valve allows for easy switching of flow direction without removing service hoses. Plus, the control panel provides system monitoring and selection options for pump on/off, heater on/off, flush cycles, and manual air purge.
Invest in the G-Tec 40400060 TTCF-9A hydraulic system flusher for efficient and reliable cleaning of your transmission coolers and lines. Say goodbye to contaminants, sludge, varnish deposits, and particles and enjoy uninterrupted performance from your heavy-duty transmission cooling system.
The G-Tec 40400060 TTCF-9A hydraulic system flusher is packed with features to make transmission cooling system maintenance easy and effective. Its powerful 3/4 HP motor requires a dedicated 20-amp or two separate 15-amp circuits to power its 13' heavy-duty 3/4" service hoses.
With a 10-gallon transmission fluid capacity and an easy-to-read level sight glass, you'll always know when it's time to refill. The adjustable flow rate of 1-8 GPM is specially developed for every type of vehicle, from automobiles to heavy-duty transmission cooling systems requiring a higher flow rate.
The TTCF-9A is equipped with a low fluid sensor that automatically shuts off the heater and pump to prevent damage to the system. A 60 micron cleanable screen filter with a convenient "T" handle simplifies verification of cleanliness, and a reverser valve allows easy flow reversal without removing service hoses.
Two auto-selected GPM-dependent flush patterns are designed to specifically inject the optimal amount of air, creating an agitating scrubbing action to remove trapped debris and solidified waxy varnish. Selectable flush times range from continuous to 15-120 minutes, with or without air injection.
When the flush cycle is complete, the TTCF-9A automatically stops and alerts you, displaying the flush cycle results. An air purge feature allows for easy fluid removal from the system and service hoses, while a spin-on filter timer displays hours used.
For added convenience, the TTCF-9A includes two non-bypass spin-on magnetic replaceable system filters (P/N 40300272). With all of these features and more, the G-Tec 40400060 TTCF-9A hydraulic system flusher is the ideal choice for maintaining your transmission cooling system.
Available Adapter Kits-Sold Separately (NOT INCLUDED)
P/N 40201346 Allison Adapter Kit (Includes 2 each: Connection Hoses, -8 (1/2 JIC), -12 (3/4 JIC), -16 (1” JIC), -20 (1-1/4” JIC))
P/N 40300434 Automotive to TTCF Adapter Kit (Reduces heavy duty hose couplers to fit automotive adapters.)
Side-by-side comparison table of the features and specifications for Flo-Dynamics TTCF-9A and TTCF-9B models.
|Motor Power||1 HP||3/4 HP|
|Electrical||120V, 60Hz, 20A or two separate 15A circuits||120V, 60Hz, requires dedicated 20A or two separate 15A circuits|
|Service Hoses||13’ heavy duty 3/4” service hoses||13’ heavy duty 3/4” service hoses|
|Fluid Capacity||20 gallon||10 gallon|
|Flow Rate||Adjustable from 1-8 GPM||8 GPM|
|Heater||Heating circulation mode with preset 140°F in 45 min||Preset heater that heats to 140°F in 45 minutes with low fluid cutoff|
|Filter Screen||Reusable 60 micron cleanable screen filter||Reusable 60 micron cleanable screen filter|
|Flush Patterns||Two auto-selected GPM-dependent flush patterns||Select from two preset flush patterns or manual air purge|
|Reverser Valve||Yes, allows easy flow reversal during flush cycles||Yes, allows easy flow reversal without changing service hoses|
|Magnetic Filters||Two non-bypass spin-on magnetic replaceable system filters (P/N 40300272)||N/A|
|Tires||10” semi-pneumatic tires||10” semi-pneumatic tires|
|Dimensions||46” H x 28” W x 25” D||43” H x 25” W x 24” D|
|Weight||225 lbs.||160 lbs.|
- Model number: 40400060
- Model name: TTCF-9A
- Flow rate: Adjustable from 1-8 GPM
- Flush cycles: Multiple cycles from 15-120 minutes
- Filter screen: Reusable 60 micron cleanable filter screen
- Heating circulation mode: Can heat up to 140°F in 45 minutes
- Flush patterns: Two auto-selected GPM-dependent flush patterns
- Reverser valve: Allows for easy switching of flow direction without removing service hoses
- Control panel: Displays system flow, pressure, temperature, total hours run, filter timer, and allows for pump on/off, heater on/off, flush cycles, and manual air purge selection.
