G-Tec TTCF-8 Heated Cooler Transmission Line Flusher PN# 40400038
G-Tec TTCF-8 Heated Cooler Transmission Line Flusher PN# 40400038
BRAND: G-Tec
SKU: 40400038
Ships From Manufacturer
Add to cart to see discounted price.
Couldn't load pickup availability
G-Tec TTCF-8 Heated Transmission Cooler Line Flusher - 40400038
Model: TTCF-8 | Part Number: 40400038
The G-Tec TTCF-8 Heated Transmission Cooler Line Flusher by Flo-Dynamics is a professional transmission cooling system cleaning machine designed to remove contaminants from automatic transmission cooler lines and heat exchangers before installing a rebuilt or replacement transmission.
During transmission failure, metal particles, clutch material, degraded automatic transmission fluid (ATF), and varnish deposits can accumulate in the cooling system. If these contaminants remain, they can circulate through the replacement transmission and contribute to premature wear or repeat transmission repairs.
The G-Tec TTCF-8 combines heated cleaning fluid, pulsating fluid circulation, filtration, air purging, and manual flow reversal to help loosen and remove contamination from transmission cooler circuits. Heating the cleaning fluid helps soften stubborn varnish deposits, while the flushing action carries loosened debris through the filtration system.
Designed for professional transmission repair shops, automotive service facilities, and transmission rebuilders, the TTCF-8 provides a comprehensive cooler flushing solution. Its 10-gallon steel tank, immersion heater, commercial-grade pump, flowmeter, and reusable 60-micron screen filter support thorough cleaning and inspection of transmission cooling systems.
The TTCF-8 also includes a broad selection of transmission cooler line adapters, allowing technicians to service many domestic and import vehicle applications. Adapter compatibility should be verified for the specific transmission and cooler line connection before use.
Features and Benefits
- Heated Transmission Cooler Flushing: Helps loosen varnish and contamination left behind after transmission failure.
- 10-Gallon Steel Tank: Durable reservoir for transmission cooling system flushing fluid.
- Immersion Heater: Heats cleaning fluid to assist in removing accumulated deposits.
- Commercial-Grade Pump: 1,750 RPM motor with 1/3 HP service factor.
- 60-Micron Reusable Screen Filter: Cleanable filter with T-handle access for inspecting collected contamination.
- Spin-On Filters: Provide additional filtration during the cleaning process.
- Integrated Flowmeter: Allows technicians to monitor fluid flow and identify potential cooler circuit restrictions.

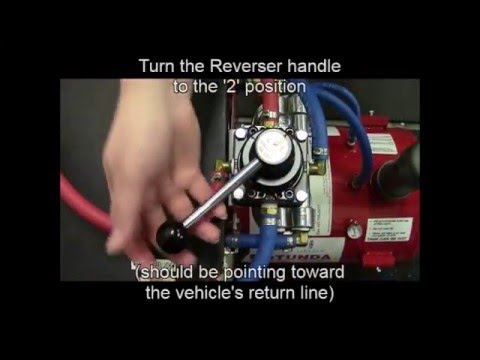

- Manual Reverse Valve: Changes flushing direction to help dislodge trapped debris.
- Air Purge System: Provides additional cleaning and purging capability.
- Fluid Purge Valve: Helps remove contaminated fluid from the flushing system.
- Vent Tower: Included as part of the flushing system.
- Hour Meter: Tracks machine operating time for service monitoring.
- Tool Tray: Provides convenient storage for transmission cooler adapters.
- Mobile Design: Pump and motor shroud, hose holders, and wheels support shop mobility.
- Extensive Adapter Selection: Includes multiple adapter families for domestic and imported vehicle applications.
Included Transmission Cooler Line Adapters
The G-Tec TTCF-8 includes an extensive assortment of transmission cooler line adapters for servicing a wide variety of vehicles.
- Domestic transmission cooler line adapters
- Banjo-style cooler line adapters
- Honda transmission adapters
- Audi / Volkswagen / Nissan adapters
- Honda / Acura puck-style cooler adapters
- Toyota / Lexus puck-style cooler adapters
- Early Super Duty transmission cooler adapters
- Push-on transmission cooler line adapters
Adapter Compatibility Note: Not every transmission cooler connection is supported by the supplied adapters. Some vehicle applications may require additional fittings. Refer to the G-Tec Adapter Sheet and confirm compatibility before connecting the machine.
Common Applications
- Transmission cooler line flushing before transmission replacement
- Cleaning transmission heat exchangers following transmission failure
- Removing residual ATF contamination and debris from cooler circuits
- Professional automatic transmission rebuilding operations
- Automotive transmission service and repair facilities
- Fleet maintenance and commercial vehicle service shops
Important: Follow the G-Tec TTCF-8 operating manual, approved flushing procedures, and vehicle manufacturer's service requirements. Some transmission cooling system components may require replacement rather than flushing.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Manufacturer: G-Tec by Flo-Dynamics
- Model: TTCF-8
- Part Number: 40400038
- Product Type: Heated Transmission Cooler Line Flusher
- Tank Capacity: 10 Gallons
- Tank Construction: Steel
- Heating System: Immersion Heater
- Power Requirements: 110V AC, 20A
- Pump Motor Speed: 1,750 RPM
- Motor: Commercial Grade, 1/3 HP Service Factor
- Screen Filter: 60-Micron Reusable Filter with T-Handle
- Additional Filtration: Spin-On Filters
- Flowmeter: Included
- Manual Reverse Valve: Included
- Air Purge System: Included
- Fluid Purge Valve: Included
- Vent Tower: Included
- Hour Meter: Included
- Adapter Storage Tray: Included
- Length: 34.125 Inches
- Width: 18 Inches
- Height: 33.5 Inches
- Machine Weight: 163 lbs.
G-Tec TTCF-8 Heated Transmission Cooler Line Flusher Videos
