Mahle ATX-3+Boost FluidPRO w/Dipstick Tube-Cooler Line Option

Description

This item is no longer available replaced by ATX-280

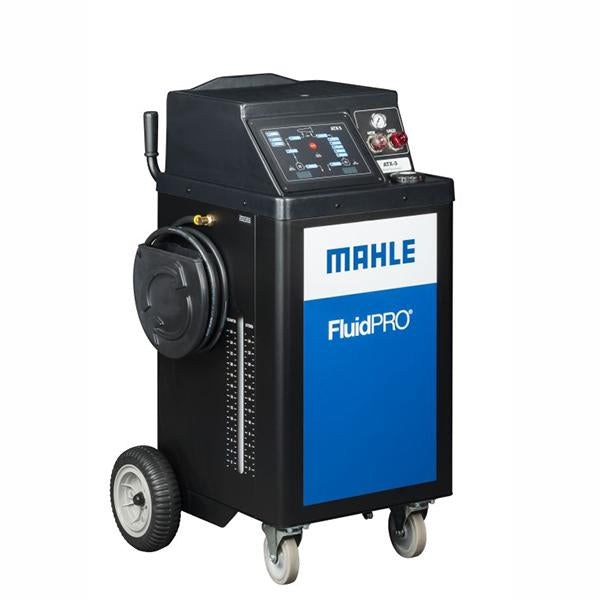

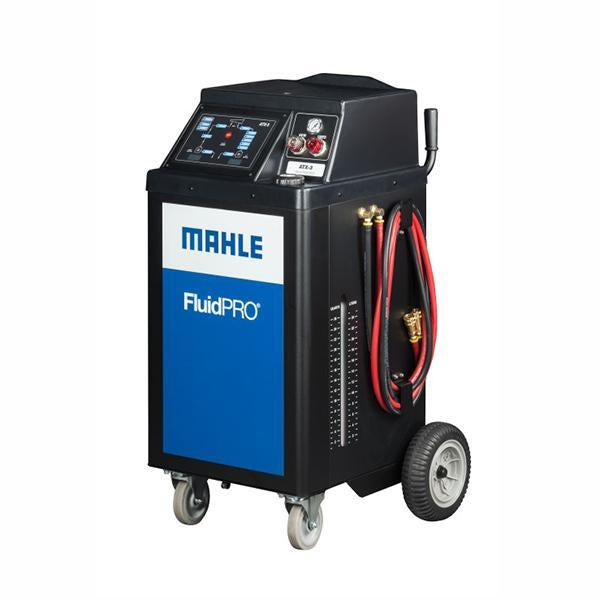

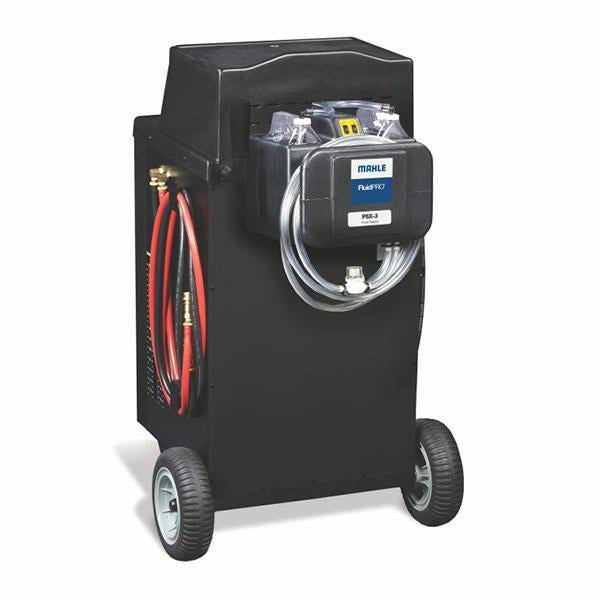

Mahle ATX-3+Boost FluidPRO™ Automatic Transmission Fluid Exchanger with Dipstick Tube-Cooler Line Option

Part Number: 400 80009 00

FluidPRO® ATX Automatic Transmission FluidExchangers offer the complete package with the utmost accuracy during fluid exchange combined with multitasking to ensure the fastest service.

FluidPRO equipment from MAHLE Service Solutions offers a range of choices in fluid exchange equipment. The ATX+Boost offers technicians fully-automatic operation with precise fluid measurement to maximize efficiency. The added feature of the high output boost pump yields faster service times of 2 to 5 minutes. The FluidPRO series goes beyond standards; for our customers, quality means failure-free assembly, satisfied end customers, and no product recalls — thus a strong brand. MAHLE Service Solutions is an industry leader when it comes to technical and training support. Whether our customers want on-site technical assistance in making their business more efficient or just have a question regarding our products, we’re here for them!

Designed for ease of operation, the FluidPRO® ATX is technologically advanced with:

• Fully automatic operation
• Precision fluid measurement to minimize technician input
• Electronic keypad
• Digital weight scale technology for accurate fluid exchange
• Logical intuitive command functions
• Transmission pressure diagnostics
• Patented bypass circuit for vehicle protection if power is interrupted

Features

• ‘Dipstick’ or ‘Cooler’ mode selector, start engine indicator (on ATX-3 only)
• Start Engine Indicator
• Electronic diode illuminated keypad – fluid flow direction indicator verifies correct hook-up
• Transmission diagnostic pressure gauge
• New and used fluid sight glasses
• Push button drain function
• Automatic fluid level adjustment +/- ½ quarts
• Color coded adapters for ease of use with determining vehicle application
• Digital weight scale technology for accurate fluid exchange
• Patented bypass circuit for vehicle protection
• Caster style front wheels for easy maneuverability
• Cushioned, non-inflatable rear wheels require no maintenance

Specifications

• Adapters Cooler line connection. Valve couplers for minimum spill. Standard adapters for Ford, GM, Chrysler, & Universal (most Asian).
• Controls Microprocessor with digital keypad & light emitting diodes
• Dimensions (H x W x D) 45 in x 28 in x 26.5 in (112 cm x 70 cm x 67 cm)
• Fluid Tanks / Types 26 quarts (24.6 liters) each for both new & used fluids / Multiple fluid capability
• Hoses 10 ft. (3 m) black & red (exchange); 8 ft. (2.5 m) black (empty used tank) ATX-3+Boost also includes 5 ft. (1.5 m) clear, attached to 8 ft. (2.5 m) lack hose for dipstick mode.
• New Fluid Pump Positive displacement gear pump, 4 quarts (3.8 liters) per minute/includes diaphragm pump, 7.2 quarts (6.84 liters) per min. Diaphragm pump increases fluid suction rate in low-flow/temperature controlled transmission in both ATX-2+Boost & ATX-3+Boost units.
• Operating Range Cooler Mode: 32° to 122°F (0° to 50°C) Dipstick Mode: 42° to 122°F (5.5° to 50°C)
• Power Source 12 VDC - 10 Amp
• Process Time 3 to 6 minutes average full exchange. Dipstick Mode is available on the ATX-3+Boost with 8 to 14 minutes* average full exchange.
• Scale Accuracy ±0.03% over usable range
• Warranty 1 Year– & labor
• Weight ATX-3+Boost: 244 lbs. (111 kg)

*Based on 12 quart exchange
