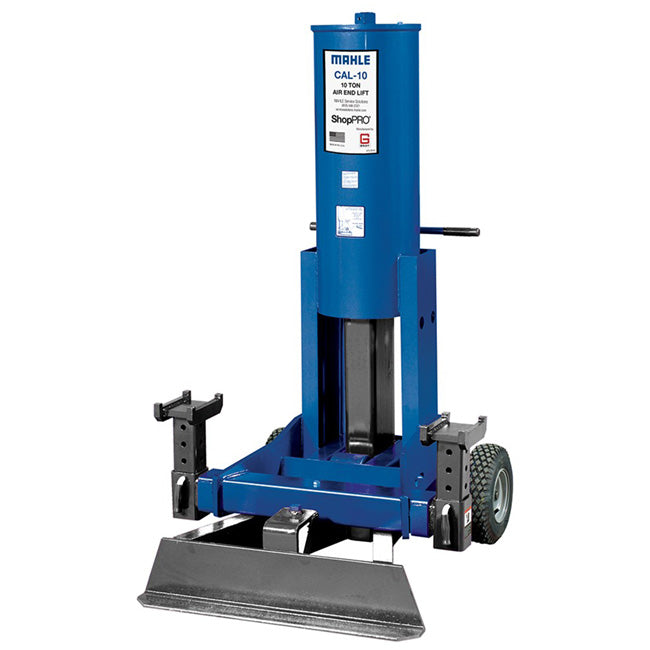

MAHLE CAL-10 - 10 Ton Air Lift | PN 485 80120 00
Part Number: 485 80120 00
Heavy-Duty 10 Ton Air Lift
The MAHLE CAL-10 is a powerful 20,000 lb air-operated lifting system engineered for heavy-duty vehicle applications. Designed with a 30 in. stroke and a maximum lift height of 50 in., the CAL-10 combines robust pneumatic operation with optimal reach and stability, making it ideal for lifting and positioning heavy components. PN 485 80120 00
Key Features
- 20,000 lb Capacity. Designed to handle heavy-duty lifting tasks.
- Long 30 in. Stroke. Enables higher lift range in a compact format.
- Air Powered. Operates efficiently using 200 psi of shop air.
- Adjustable Saddle Spread. From 32 in. to 43 in. for diverse vehicle fitment.
- Heavy Steel Frame. Provides rugged support in demanding environments.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Capacity 20,000 lb
- Stroke 30 in.
- Minimum Start Height 14 in.
- Maximum Lift Height 50 in.
- Power Air
- Required Air Pressure 200 psi
- Forward Reach (CL to CL) 17 in.
- Overall Length 43 in.
- Overall Width 37 in.
- Overall Height 66 in.
- Saddle Spread 32 in. to 43 in.
- Shipping Weight 755 lb
