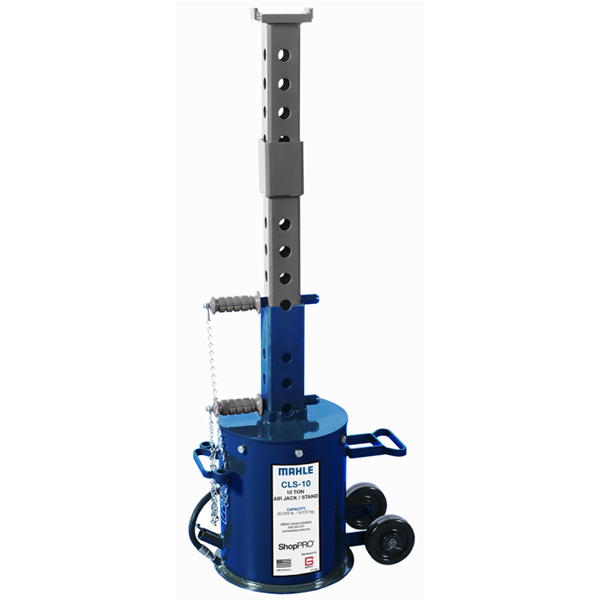

MAHLE CLS-10 | 10 ton Commercial Vehicle Air Lift and Support Stand

Description

MAHLE CLS-10 - 10 ton Commercial Vehicle Air Lift and Support Stand

Part Number: 485 80017 00

• Built-in vehicle support stand feature
• 100% air operated
• Removable handle along with two wheels allows ease in spotting and portability
• Optional air valve tee connector available

Specifications

• Capacity 20,000 lb (9,072 kg)
• Minimum Start Height 17.5 in (44 cm)
• Maximum Lift Height w/ Extension 52.5 in (133 cm)
• Maximum Lift Height w/o Extension 37.5 in (95 cm)
• Cylinder Bore 12 in (30 cm)
• Required Air Pressure 200 psi (13.8 bar)
• Overall Length w/ Handle 48 in (122 cm)
• Overall Length w/o Handle 19 in (48 cm)
• Wheel Diameter 5 in (13 cm)
• Stroke 10 in (25 cm)
• Inside Saddle Width 4.5 in (11 cm)
• Overall Saddle Width 5.3 in (13 cm)
• Extension Tubes Square
• Handle Length 29 in (74 cm)
• Shipping Weight 138 lb (63 kg)
