MAHLE CML-7 -7 Ton Commercial Vehicle Mobile Column Lift | Wireless

Description

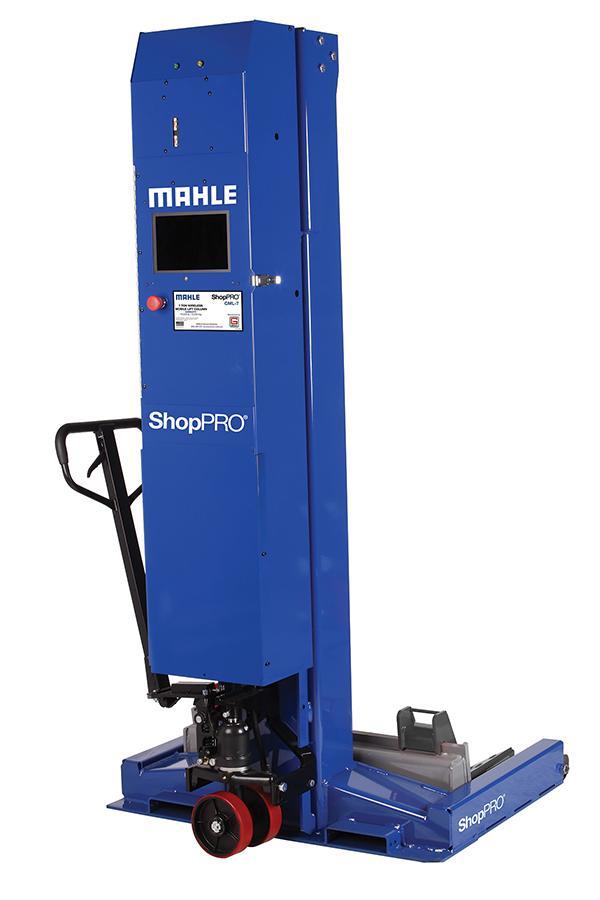

CML-7 - 7 ton (14,000 lb.) Commercial Vehicle Mobile Column Lift - Wireless

Part Number: 485 80094 00

The patented Gray Wireless Portable Lift System improves a shop's safety, productivity and flexibility. The wireless lift system family will lift a wide variety of vehicles allowing technicians to safely and efficiently complete preventative maintenance tasks prior to major component repair.

• Heavy Duty Lifting Capacity. 14,000 lb (CML-7) and 19,000 lb (CML-9) per column capacity options. Wide base available in 19,000 lb capacity (CML-9W).
• Intelligent. Patented wireless smart lift technology.
• Simple. Tablet-based touch screen with on-board manuals, videos and internet.
• Broad Application. Heavy duty through light duty vehicles.
• Fully Adjustable Carriage. 12" forks supports wheel diameter from 5" to 24.5"
• Patent Pending. Down-stop visual safety system.
• Adjustable. Lift height 69" (1753 mm)
• 24 volt mobile column, with a wide, adjustable carriage for over-sized tire engagement
• Features the industry's original wireless communication system, state of the art touch screen graphic control system, and a patented self-centering adjustable carriage, providing the user with the most reliable and safe lifting environment
• No external wires or cords providing clear and safe access to the undercarriage of the vehicle
• When used at full operating height the user is provided with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with singe and paired operation make easy work of axle, brake, and wheel work

Specifications

• Certification ALI Certified
• Capacity (Each) 14,000 lb (6,350 kg)
• Max. Hydraulic Operating Pressure 2,180 psi (15 MPa)
• Min/Max Wheel Diameter 5 in / 24.5 in (127 mm / 622 mm)
• Min (2)/Max (4) Lift Height 32 in / 69 in (813 mm / 1,753 mm)
• Lift Speed (Max Load) 60 in/min (1,524 mm/min)
• Weight 1,485 lb (674 kg)
• Height 88.5 in (2,248 mm)
• Height at Full Lift (157.13 in (3,991 mm)
• Operating Peak Power 4 HP (3 kW)
• Operating Voltage 24 VDC Nominal
• Charger Voltage Required 70-130 VAC @50-60 Hz

Shipping

This Item Qualifies for FREE LTL SHIPPING  (via Truck)  it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

• Lift Gate Is Required.(+$150.00)
• I have a forklift for unloading Freight at My Business location
• I have a way of unloading Freight at my location
• Deliver to local freight terminal for pickup.

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Flyer

Manual
