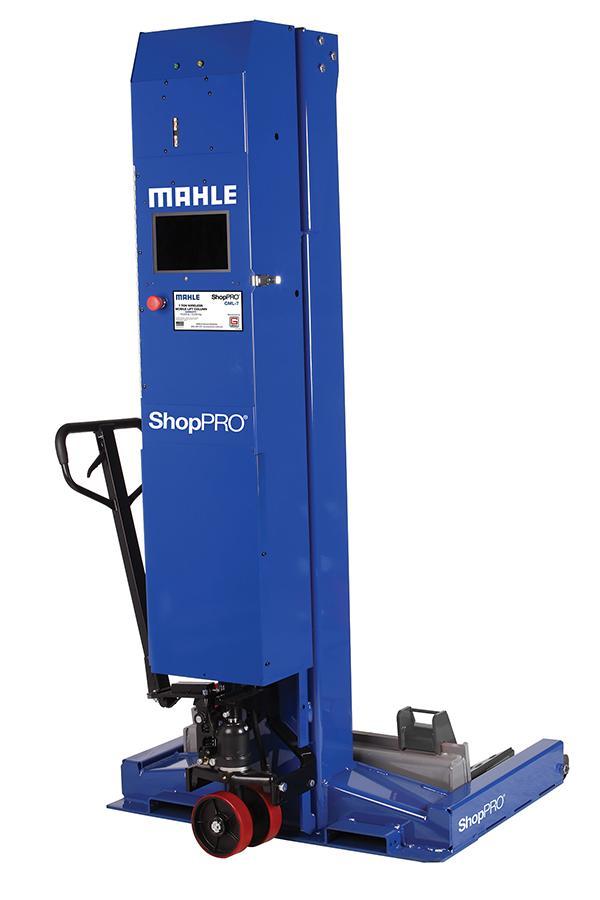

MAHLE CML-7x4 - 28 ton Commercial Vehicle Mobile Column Lift - Wireless (Set of 4)


Mobile Column Lift

MAHLE CML-7x4 | 28 ton Commercial Vehicle Mobile Column Lift | Wireless (Set of 4)

  • VENDOR:-   MAHLE
  • SKU#   CML-7x4
In Stock
  • $37,503.44
    Unit price per

- +
Only 0 left!

Description

CML-7x4 - 28 ton (56,000 lb.) Commercial Vehicle Mobile Column Lift - Wireless (Set of 4)

Part Number: 485 80095 00

Wireless Mobile Vehicle Column Lifts

The patented Gray Wireless Portable Lift System improves a shop's safety, productivity and flexibility. The wireless lift system family will lift a wide variety of vehicles allowing technicians to safely and efficiently complete preventative maintenance tasks prior to major component repair.

  • Heavy Duty Lifting Capacity. 14,000 lb (CML-7) and 19,000 lb (CML-9) per column capacity options. Wide base available in 19,000 lb capacity (CML-9W).
  • Intelligent. Patented wireless smart lift technology.
  • Simple. Tablet-based touch screen with on-board manuals, videos and internet.
  • Broad Application. Heavy duty through light duty vehicles.
  • Fully Adjustable Carriage. 12" forks supports wheel diameter from 5" to 24.5"
  • Patent Pending. Down-stop visual safety system.
  • Adjustable. Lift height 69" (1753 mm)
  • 24 volt mobile column, with a wide, adjustable carriage for over-sized tire engagement
  • Features the industry's original wireless communication system, state of the art touch screen graphic control system, and a patented self-centering adjustable carriage, providing the user with the most reliable and safe lifting environment
  • No external wires or cords providing clear and safe access to the undercarriage of the vehicle
  • When used at full operating height the user is provided with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with singe and paired operation make easy work of axle, brake, and wheel work
WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Certification ALI Certified
  • Capacity (Each) 14,000 lb (6,350 kg)
  • Max. Hydraulic Operating Pressure 2,180 psi (15 MPa)
  • Min/Max Wheel Diameter 5 in / 24.5 in (127 mm / 622 mm)
  • Min (2)/Max (4) Lift Height 32 in / 69 in (813 mm / 1,753 mm)
  • Lift Speed (Max Load) 60 in/min (1,524 mm/min)
  • Weight 1,485 lb (674 kg)
  • Height 88.5 in (2,248 mm)
  • Height at Full Lift (157.13 in (3,991 mm)
  • Operating Peak Power 4 HP (3 kW)
  • Operating Voltage 24 VDC Nominal
  • Charger Voltage Required 70-130 VAC @50-60 Hz
