MAHLE CSP-75 Shop Press with out Accessory Kit - 75 Ton | PN 485 80066 00
MAHLE CSP-75 Shop Press with out Accessory Kit - 75 Ton | PN 485 80066 00
Ships within (1 - 3 Business Days)
SKU: 485 80066 00
Couldn't load pickup availability
Description

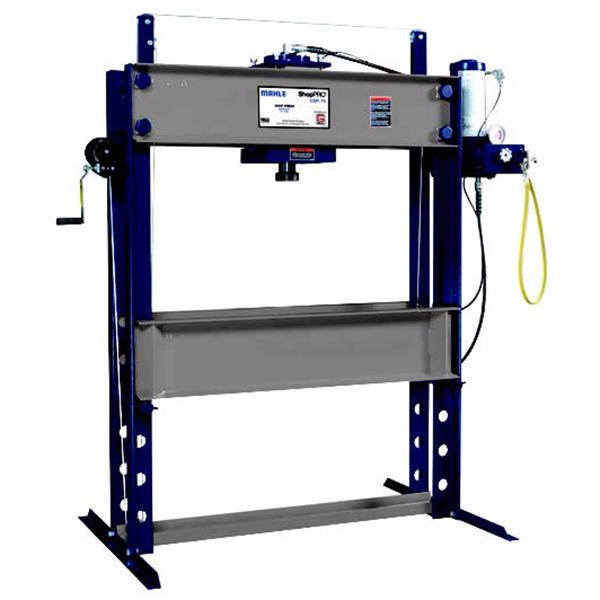

MAHLE CSP-75 75 Ton Shop Press | PN 485 80066 00
Part Number: 485 80066 00
Heavy-Duty Hydraulic Shop Press with Industrial Power
The MAHLE CSP-75 is a 75-ton hydraulic shop press engineered for professional applications requiring high force and precision. Designed with a two-speed hydraulic system and a joystick-controlled ram, this press is ideal for straightening, bending, pressing, and other fabrication tasks. Built with an electro-welded steel frame and adjustable workbed, the CSP-75 is a versatile solution for fleet garages, manufacturing, and commercial shops. PN 485 80066 00
Key Features
- 75 Ton Capacity. Provides 150,000 lb of pressing force for large components.
- Joystick-Controlled Operation. Ensures precise and controlled ram movement.
- Fully Welded Frame. Steel construction for durability and stability during heavy-duty cycles.
- Adjustable Steel Bed. Allows flexibility across various component sizes and tasks.
Optional Accessories (Not Included)
- PN 485 80068 00 – Mountable Guard: Side safety shield for added protection (each side sold separately).
- PN 485 80069 00 – Accessory Kit: Includes press plates and specialty tooling for CSP-75 series.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Model CSP-75
- Part Number 485 80066 00
- Capacity 75 tons (150,000 lb / 68,039 kg)
- Cylinder Stroke 8.8 in (22.2 cm)
- Horizontal Ram Travel 32 in (81 cm)
- Throat Width 50 in (127 cm)
- Inside / Outside Throat Depth 8 in / 14 in (20 cm / 25 cm)
- Adjustment Increments 6 in (15 cm)
- Vertical Throat Min / Max 9.5 in – 39.5 in (24.1 cm – 100.3 cm)
- Required Air Pressure 120–200 psi (8.3–13.8 bar)
- Overall Dimensions (H × W × D) 85 in × 78 in × 44 in (216 cm × 198 cm × 112 cm)
- Weight 1,098 lb (498 kg)
Documents
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options
- LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
- I have a forklift for unloading Freight at My Business location
- Deliver to local freight terminal for pickup.
- Lift Gate Is Required.(+$150.00)
- Residential Delivery.(+ $85.00)
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email or call (321)-423-5290 so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
