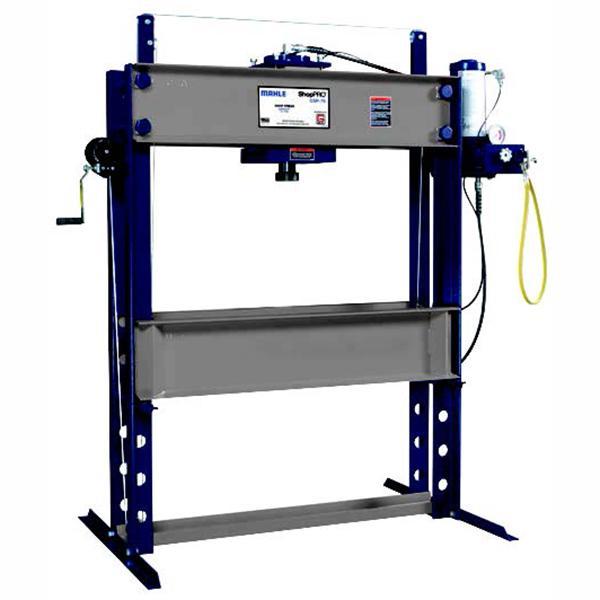

MAHLE CSP-75K 75 Ton Shop Press with Accessory Kit | PN 485 80067 00
Part Number: 485 80067 00
Heavy-Duty Shop Press with Accessory Kit and Adjustable Bolster
The MAHLE CSP-75K is a 75-ton industrial-grade shop press engineered for precision and power. Designed for heavy-duty applications, it includes a complete accessory kit with press plates and V-blocks. This press features a six-position adjustable bolster, side-to-side ram travel, and a four-way mountable air/hydraulic pump. Operators benefit from quick exhaust functionality and a winch-assisted bolster height adjustment, ensuring safer and more efficient operation. PN 485 80067 00
Key Features
- 75 Ton Capacity. Robust power for demanding straightening and pressing tasks.
- Accessory Kit Included. Equipped with press plates and V-blocks for added versatility.
- Adjustable Bolster. Six height positions for accommodating different workpiece sizes.
- Side-to-Side Ram Movement. Full-width travel improves setup and alignment.
- Air/Hydraulic Cylinder. Double-acting design delivers smooth and controlled operation.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Model CSP-75K
- Part Number 485 80067 00
- Capacity 75 Tons (68,039 kg)
- Power Source Air/Hydraulic
- Stroke 8.8 in (22.2 cm)
- Horizontal Ram Travel 32 in (81 cm)
- Throat Width 50 in (127 cm)
- Inside Throat Depth 8 in (20 cm)
- Outside Throat Depth 14 in (25 cm)
- Required Air Pressure 120 to 200 psi (8.3 to 13.8 bar)
- Adjustment Increments 6 in (15 cm)
- Vertical Throat Min / Max 9.5 in – 39.5 in (24.1 cm – 100.3 cm)
- Overall Dimensions (H × W × D) 85 in × 78 in × 44 in (216 cm × 198 cm × 112 cm)
- Shipping Weight 1,098 lb (498 kg)
