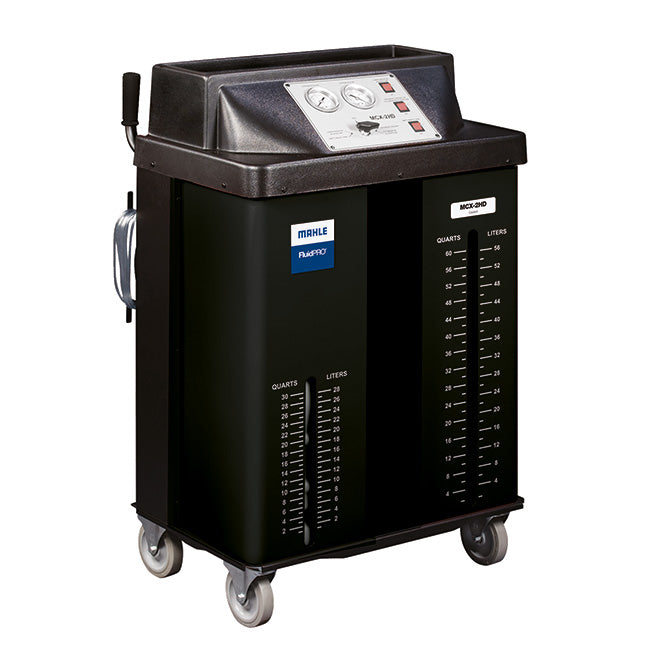

MAHLE MCX-2 Multi-Coolant Exchange System PN 470 80030 00

Description

MAHLE MCX-2 Multi-Coolant Exchange System PN 470 80030 00

Part Number: 470 80030 00

The MAHLE MCX-2 Multi-Coolant Exchange System is engineered for rapid and efficient coolant replacement. Equipped with dual 7.5-gallon new coolant tanks and a single 15-gallon waste tank, it enables quick switching between different coolant types. With exchange efficiency ranging from 92% to 98% in a single pass, and average service times under three minutes, it’s a high-performance solution for automotive shops. Automatic pump shut-off, drip-proof tank connectors, and easy-to-read pressure gauges enhance safety and user convenience. Powered via 12VDC clips, the MCX-2 is compatible with all coolant types and includes universal adapters for flexible vehicle servicing.

Optional Adapters (Not Included)

• 370 80252 00 – MCX Fill Tank, 7 gal – includes fitting, tube, filter, check valve
• 370 80204 00 – MCX Waste Tank, 15 gal – includes fitting, float switch, auto shut-off
• 370 80019 00 – Standard kit – hoses, adapters, hose clamps, wand
• 370 80033 00 – MCX Flush Hose Assembly

Specifications

• Coolant Exchange: 92% to 98% single pass, average exchange
• Fluid Tanks / Types: Two 7.5 gal new coolant tanks, one 15 gal waste tank with integrated output tube, debris filter, and check valve
• Power Source: 12 VDC, 15 Amp
• Process Time: Less than 3 minutes (average full exchange)
• Pumps: 2 gal/min – Fill: Diaphragm Type / Drain: Impeller Type
• Pressure Switch: 6 to 12 psi (0.4 to 0.8 bar)
• Operating Range: 32°F to 122°F (0°C to 50°C)
• Hoses: 3/8 in. (9.5 mm), quick-connect/disconnect, brass with chrome sleeve and silicone seal
• Adapters: Step Adapters (1-1/4 in. to 1-3/4 in. diameter); Hose Adapters (1-1/4 in. to 1-3/8 in. and 1-1/2 in. to 1-3/4 in. diameter)
• Gauges: Easy-to-read for monitoring pressure and vacuum
• Dimensions: 45 in. H x 38 in. W x 22.5 in. D
• Warranty: 1 year (parts & labor)
• Weight: 170 lb.
