MARTINS TC-15 15' Tire conveyor
MARTINS TC-15 15' Tire conveyor
Ships within (1 - 3 Business Days)
SKU: TC-15
Description

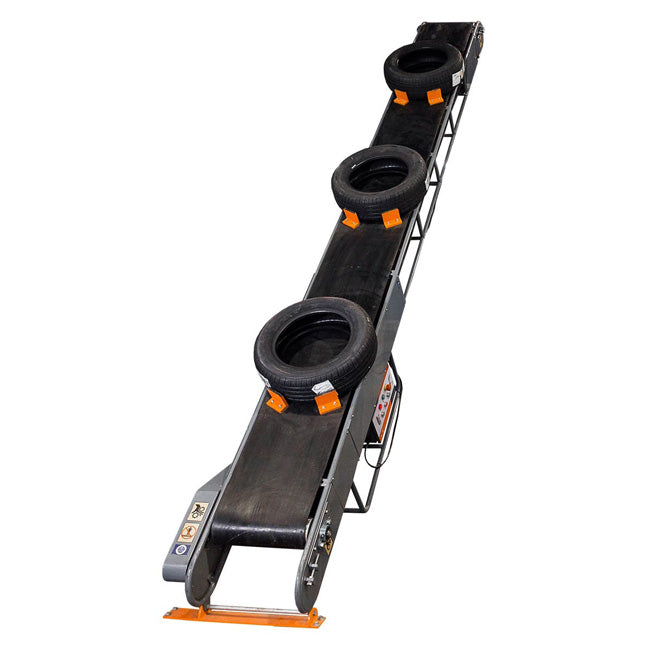

MARTINS TC-15 15' Tire conveyor
Model: TC-15

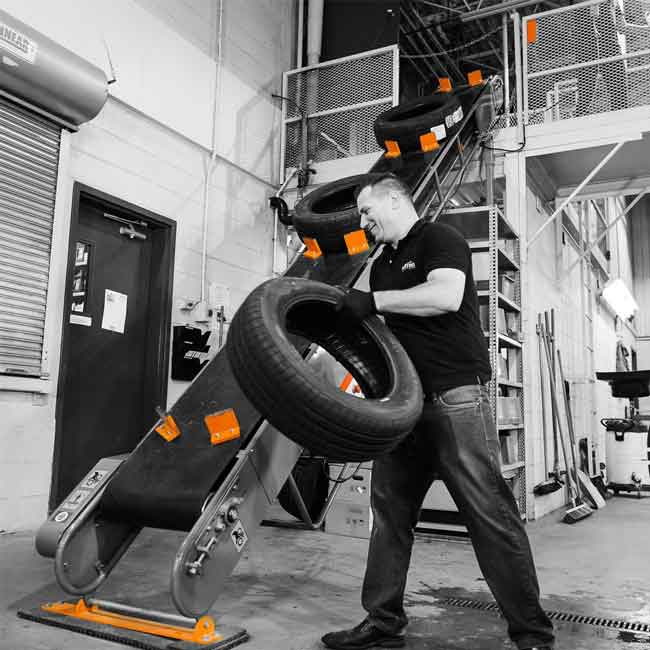

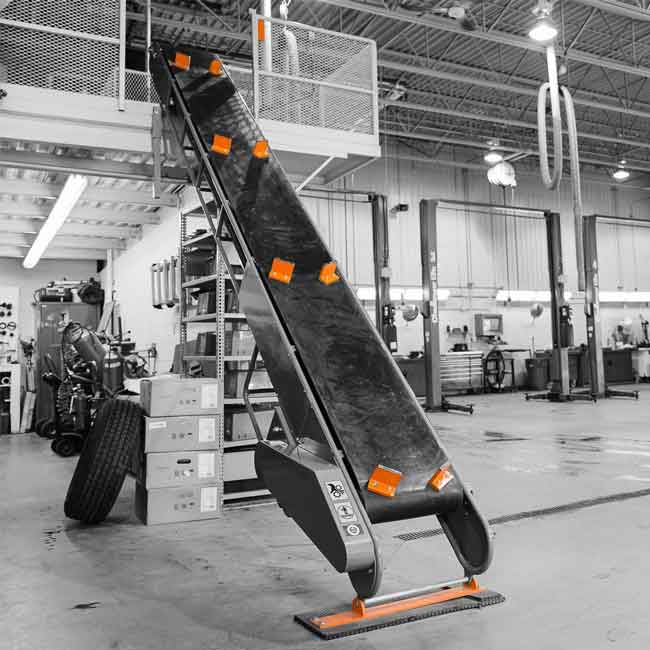

Increase your tire handling productivity with the 15 ft. tire conveyor. Its raised base, firmly anchored to the ground, provides an ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. The conveyor works as soon as you plug it in. Two control boxes are at arms' reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10 ft.. Powered by a 1-HP motor with magnetic brakes, the 15 ft. Tire conveyor will maintain your tires perfectly still when stopped. * Also available in 18 ft., 21 ft. & 24 ft.
Features and Benefits

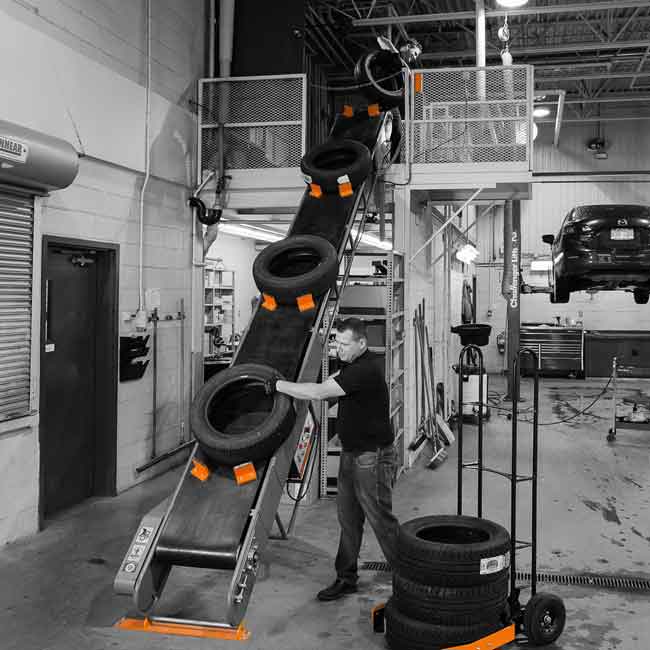

- Speed up tire handling up to and down from your mezzanine at a pace as fast as 12 tires per minute.
- Tough enough for all your tire/wheel assemblies-Heavy duty rubber belt that can support up to 500 lb.

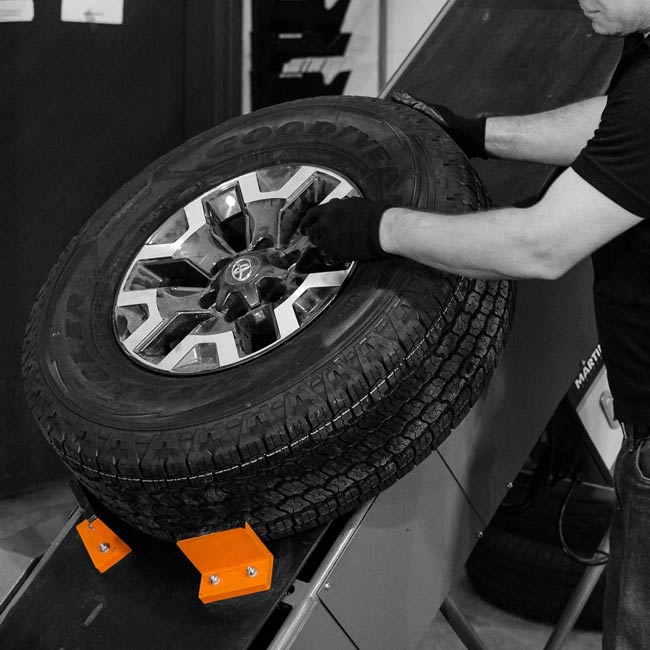

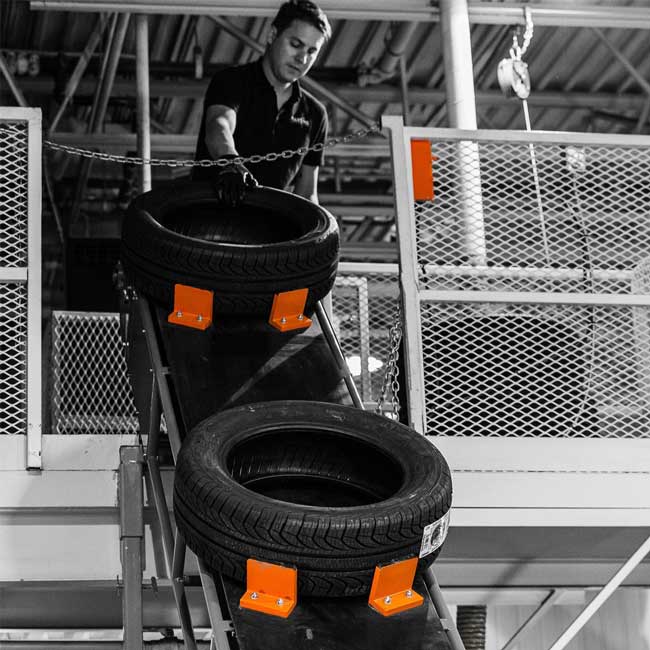

- Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.

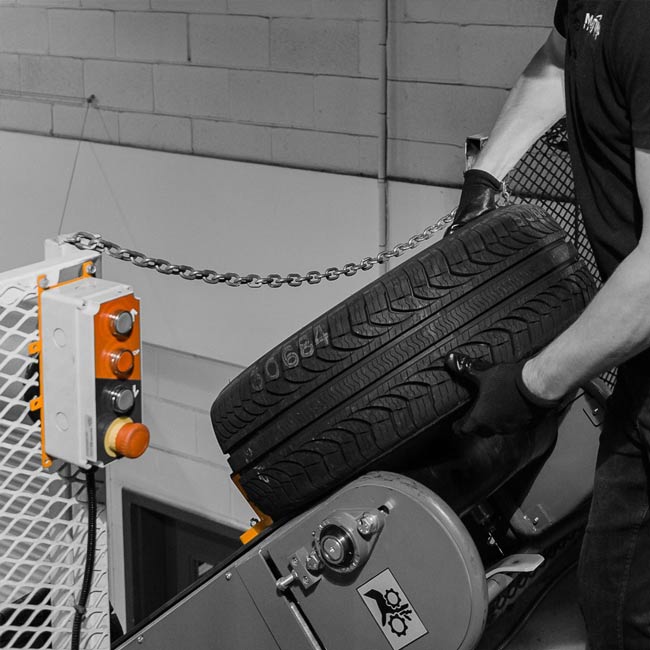

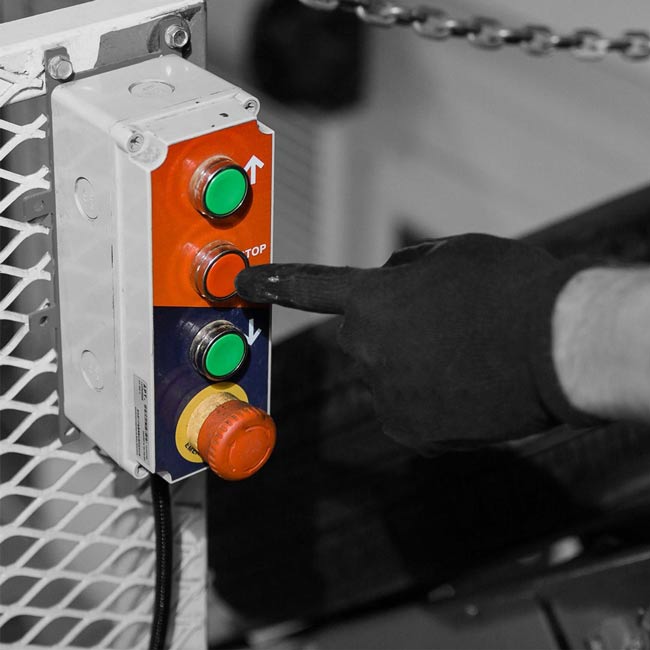

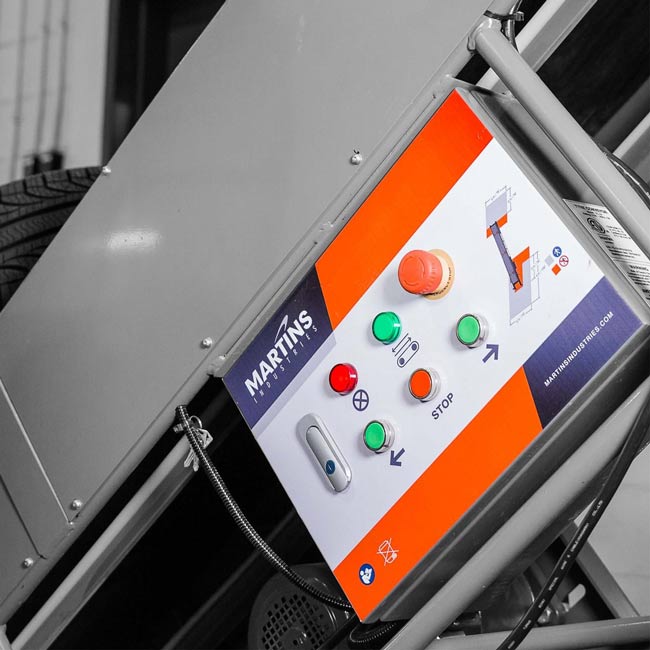

- Control box at both ends of the tire conveyor - On, Off, Reverse & Emergency stop.
- Requires no maintenance with its sealed precision ball bearing.
Included
- Rubber belt - 2 ply (3/8 in. - 8 mm)
- PVC cleats
- Main control box
- Secondary control box
- 1-HP motor with magnetic brakes
- User manual
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Controls: On / Off / Reverse / Emergency stop at each end
- Certifications: CE, cETLus, UKCA, CSA Z432-16
- Warranty: 1 year warranty
- Product dimensions - LxWxH (inches): 180 x 29 1/2 x 11
- Load capacity (lb): 500
- Net weight (lb): 750
- Speed (m/min): 17.7
- Distance between cleats center-to-center (inches): 60
- Belt material: Rubber
- Belt width (inches): 18
- Belt thickness (inches): 3/8
- Bearing type: Sealed precision ball bearing (no maintenance)
- Energy type: Electricity
- Motor (HP): 1.0000
- Amp: 12
- Hertz: 60
- Phase: 1.0000
- Volt: 115
- Watts: 750
- Materials: Steel
- Finish: Powder coated paint
- Color: Grey and orange
- Gross weight (lb): 926
- Package dimensions - LxWxH (inches): 190 x 39 x 40
