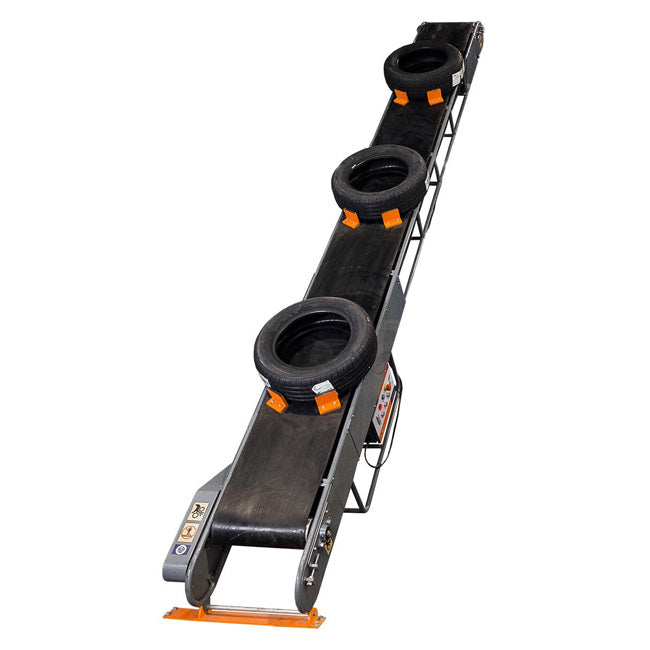

MARTINS TC-18 18' Tire conveyor
MARTINS TC-18 18' Tire conveyor
Ships within (1 - 3 Business Days)
SKU: TC-18
Description
MARTINS TC-18 18' Tire conveyor
Model: TC-18

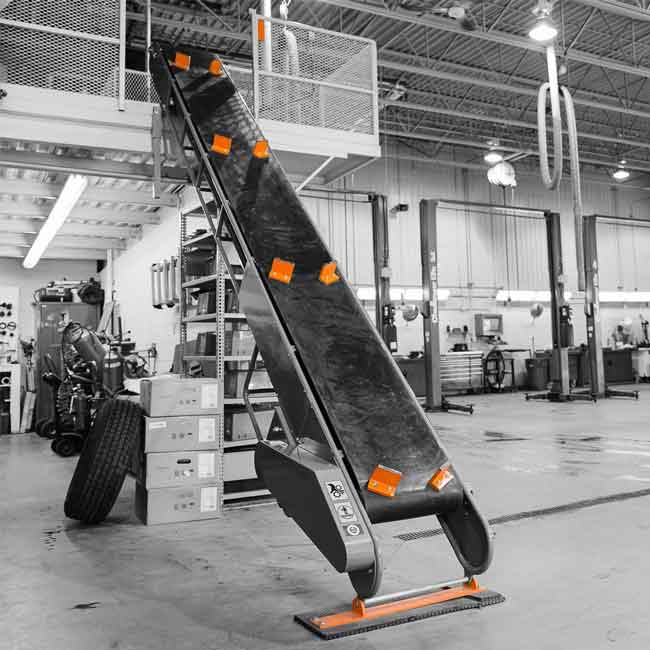

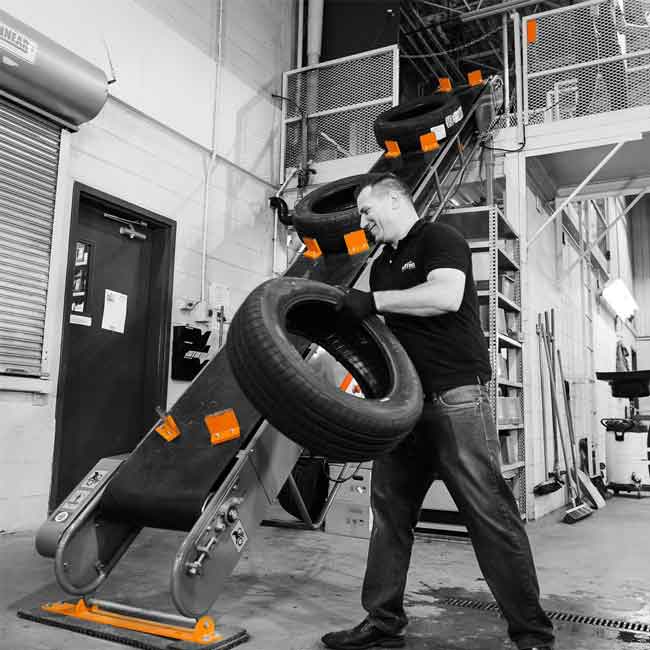

Increase your tire handling productivity with the plug & play tire conveyor. Its raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arm's reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10 ft./3 m. Powered by a 1-HP motor with magnetic brakes, the floor-to-floor 18 ft./5.5 m Tire conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.
Features and Benefits

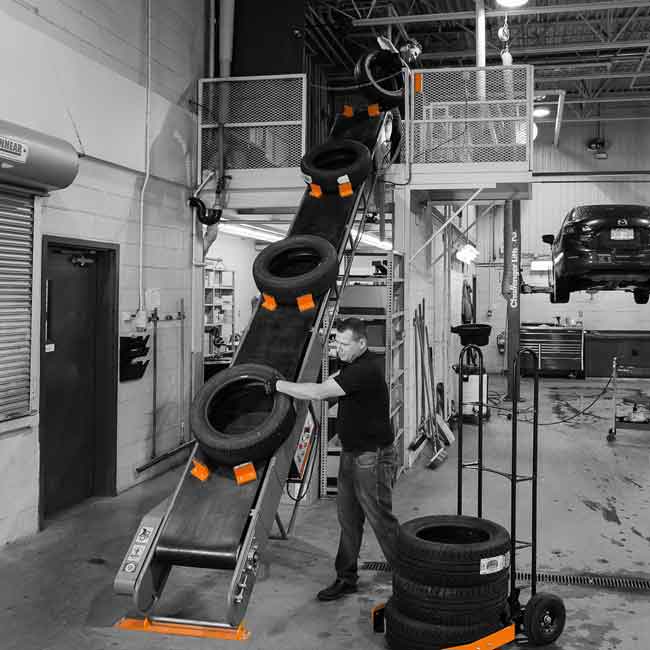

- Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute.
- Tough enough for all your tire/wheel assemblies - Heavy-duty rubber belt that can support up to 500 lb.

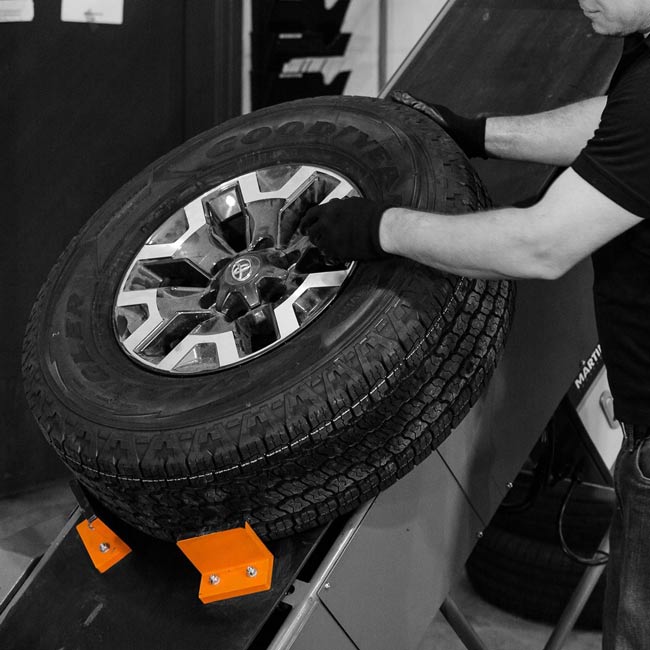

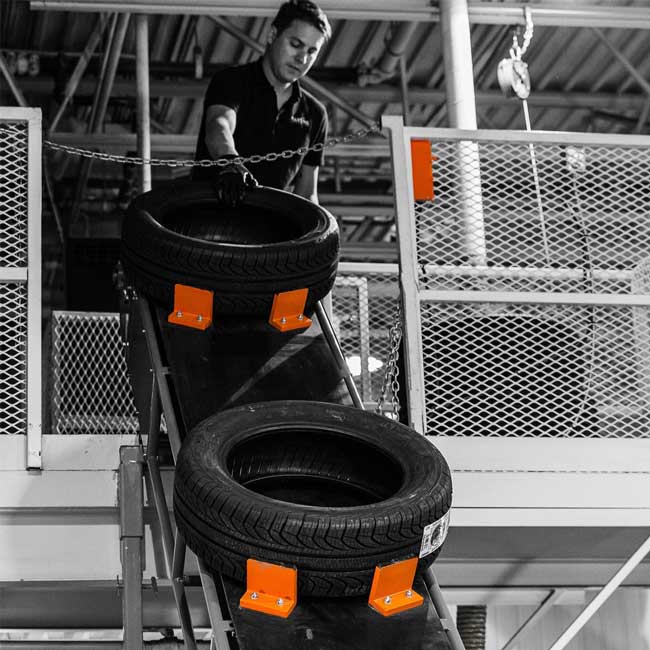

- Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.

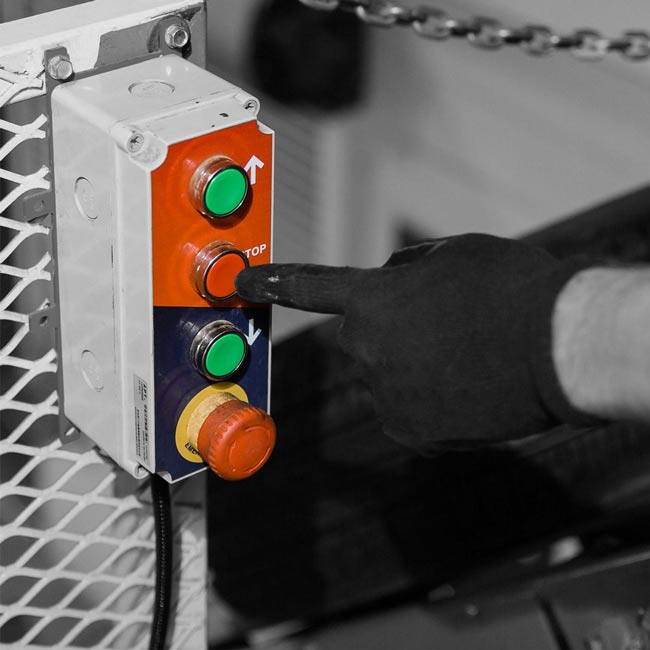

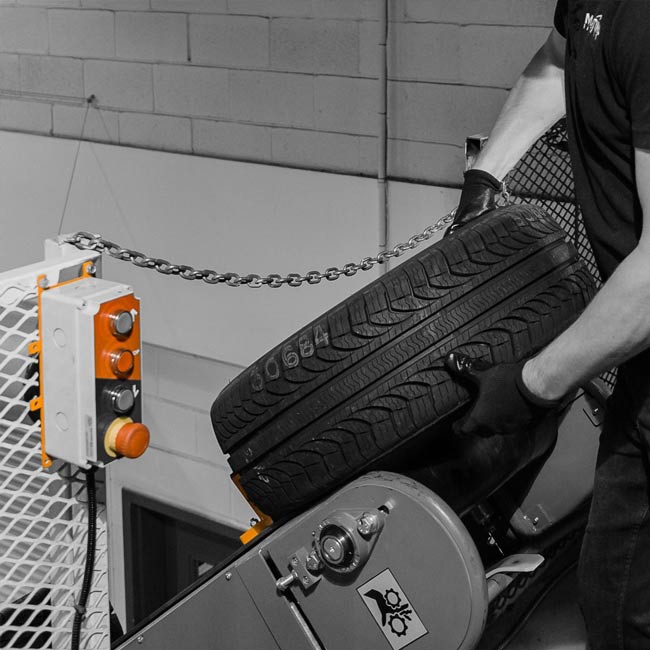

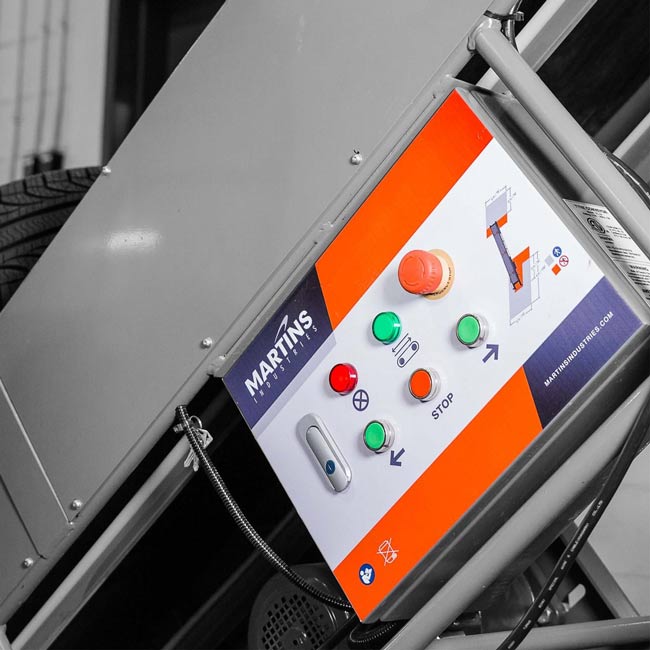

- Control box at both ends of the tire conveyor - On, Off, Reverse & Emergency stop.
- Requires no maintenance with its sealed precision ball bearing.
Included
- Rubber belt - 2 ply (3/8 in.)
- PVC cleats
- Main control box
- Secondary control box with 10 ft. power cable
- 1 HP motor with magnetic brakes
- User manual
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Controls: On / Off / Reverse / Emergency stop at each end
- Certifications: CE, cETLus, UKCA, CSA Z432-16
- Warranty: 1 year warranty
- Product dimensions - LxWxH (inches): 216 x 29 1/2 x 11
- Load capacity (lb): 500
- Net weight (lb): 825
- Speed (m/min): 17.7
- Distance between cleats center-to-center (inches): 60
- Belt material: Rubber
- Belt width (inches): 18
- Belt thickness (inches): 3/8
- Bearing type: Sealed precision ball bearing (no maintenance)
- Energy type: Electricity
- Motor (HP): 1.0000
- Amp: 12
- Hertz: 60
- Phase: 1.0000
- Volt: 115
- Watts: 750
- Materials: Steel
- Finish: Powder coated paint
- Color: Grey and orange
- Gross weight (lb): 1037
- Package dimensions - LxWxH (inches): 225 x 39 x 40
