MARTINS TC-24 24' Tire conveyor
MARTINS TC-24 24' Tire conveyor
Ships within (1 - 3 Business Days)
SKU: TC-24
Description

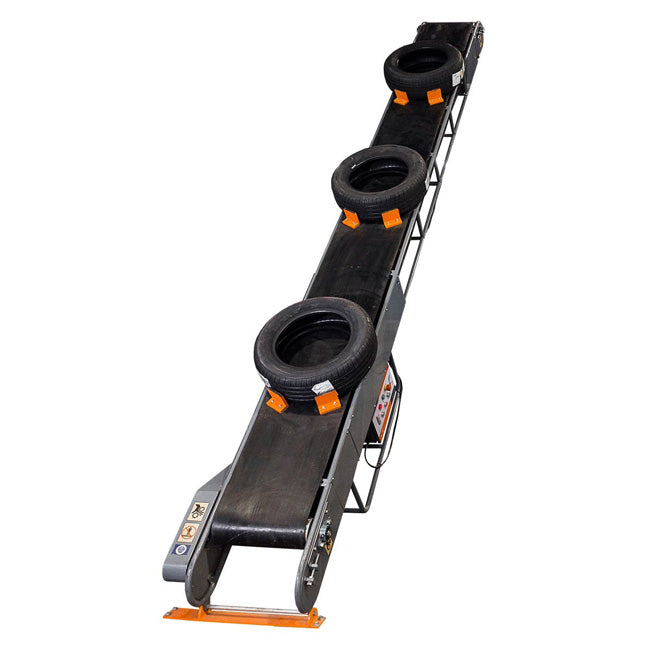

MARTINS TC-24 24' Tire conveyor
Model: TC-24

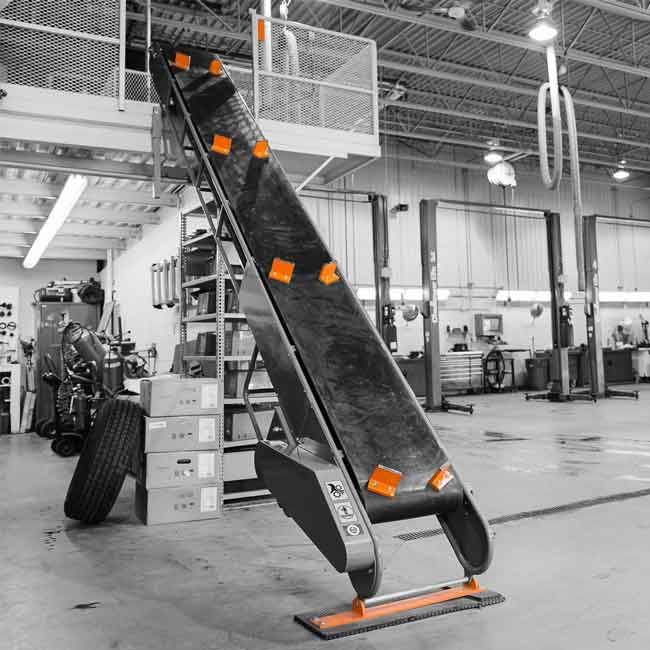

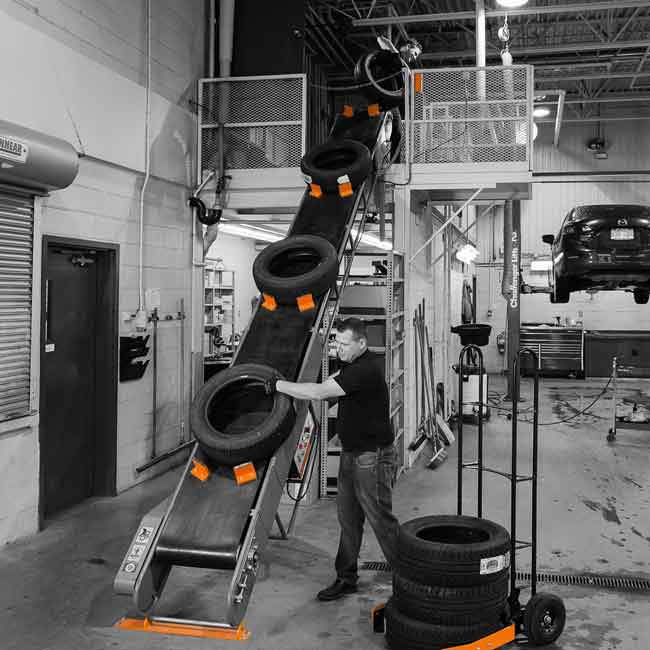

Increase your tire handling productivity with the plug & play tire conveyor. Its raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arms reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10 ft.. Powered by a 2 HP motor with magnetic brakes, the floor-to-floor 24 ft. Tire conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.
Features and Benefits

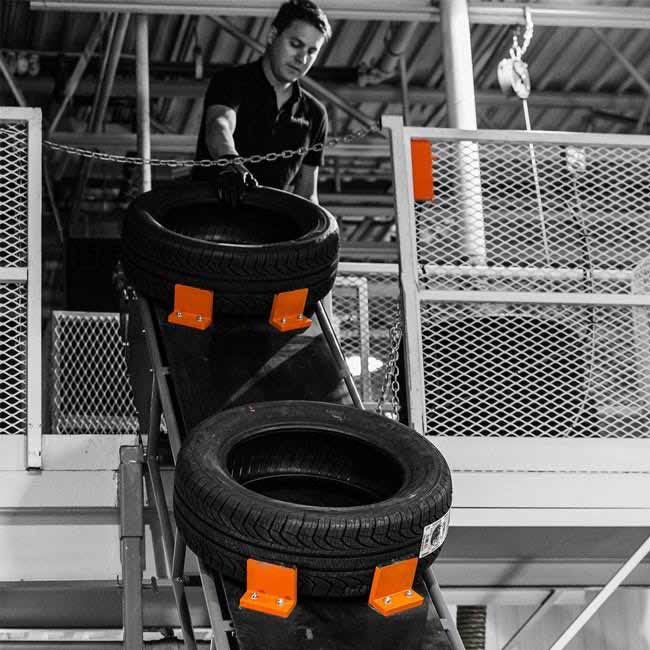

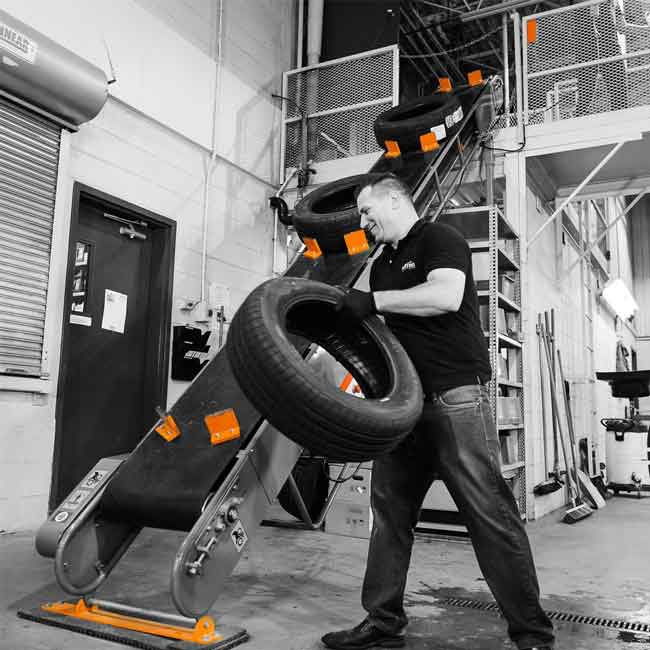

- Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute.

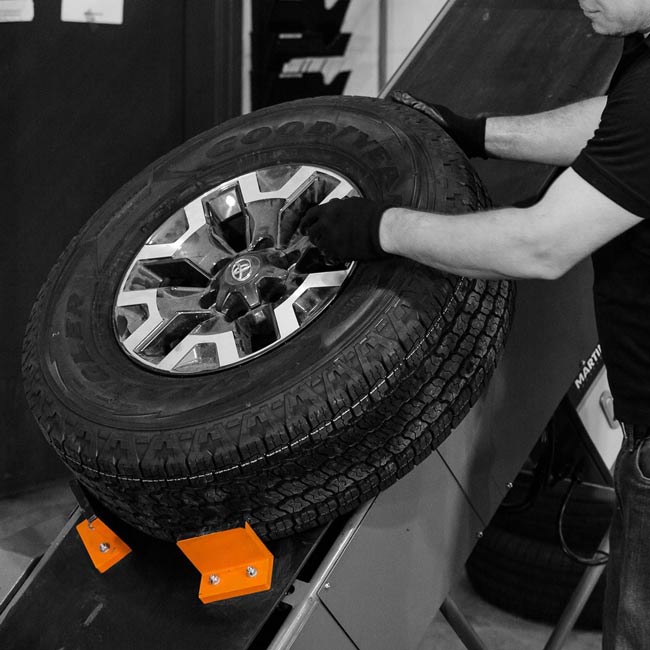

- Tough enough for all your tire/wheel assemblies-Heavy duty rubber belt that can support up to 500 lb.
- Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.

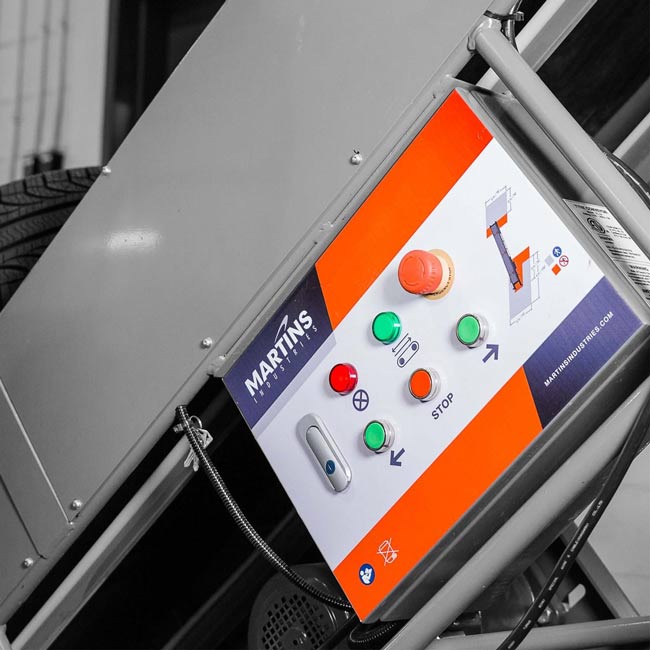

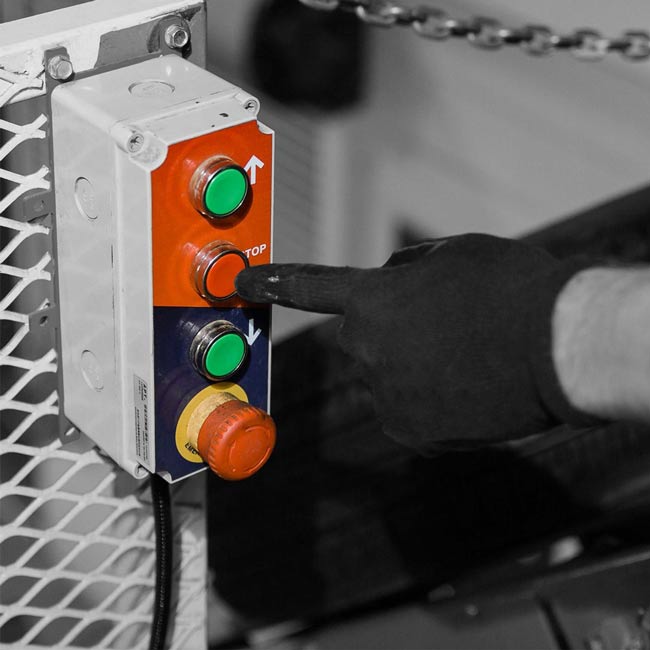

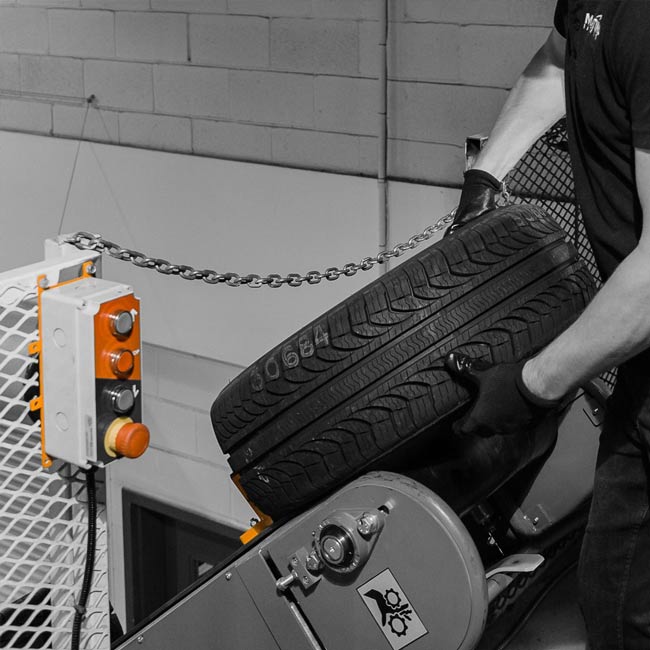

- Control box at both ends of the tire conveyor - On, Off, Reverse & Emergency stop.
- Requires no maintenance with its sealed precision ball bearing.
Included
- Rubber belt - 2 ply (3/8 in.)
- PVC cleats
- Main control box
- Secondary control box with 10 ft. power cable
- 2 HP motor with magnetic brakes
- User manual
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Controls: On / Off / Reverse / Emergency stop at each end
- Certifications: CE, cETLus, UKCA, CSA Z432-16
- Warranty: 1 year warranty
- Product dimensions - LxWxH (inches): 288 x 29 1/2 x 11
- Load capacity (lb): 500
- Net weight (lb): 957
- Speed (m/min): 17.7
- Distance between cleats center-to-center (inches): 60
- Belt material: Rubber
- Belt width (inches): 18
- Belt thickness (inches): 3/8
- Bearing type: Sealed precision ball bearing (no maintenance)
- Energy type: Electricity
- Motor (HP): 2.0000
- Amp: 12
- Hertz: 60
- Phase: 1.0000
- Volt: 230
- Watts: 1500
- Materials: Steel
- Finish: Powder coated paint
- Color: Grey and orange
- Gross weight (lb): 1323
- Package dimensions - LxWxH (inches): 305 x 38 x 40
Documents
Video
MARTINS TC-24 24' Tire conveyor
Shipping
SHIPPING QUOTE
This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".
Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at (321)-423-5290. We will be more than happy to assist you.
Warranty Information
RETURN POLICY
Looking to return your order completely or partially?
Whatever the reason may be, Martins Industries allows you to return your order within 30 days after receiving it. Another proof of our pledge to your complete satisfaction!
The following conditions apply to returns made within the 30 days window:
Transportation fees back to our closest warehouse are at the client’s expense.
Items must be sent back in their original packaging with all their included parts, hardware or accessories.
Items will undergo thorough inspection by our team to ensure they remained in good condition. Items showing traces of damage will not get refunded.
What happens if you want to return the product(s) after 30 days?
The following conditions apply to returns made after the 30 days window:
40% inspection / restocking / refurbishing / repacking charge applies.
Transport fees back to our closest warehouse remain at the client’s expense.
Error or non-compliance on your order?
No problem, Martins Industries will arrange the pickup of the merchandise at your location and will assume all related charges.
How to submit a return request?
Contact our customer service team at Martins Checkpoint to obtain your Return Merchandise Authorization (RMA) number.
See the full details in our Terms and conditions on the manufactures website.
*The return policy does not apply to discontinued items. They cannot be exchanged either.
WARRANTY
LIMITED PRODUCT WARRANTY
Martins Industries warrants to the original purchaser that its products are free from defects in material and workmanship. This coverage is valid for a period of 6 months to 3 years, depending on the product, starting from the billing date. The warranty will be voided if the product has sustained damage due to misuse, improper assembly, poor maintenance, any accident or any non-authorized modifications / repairs.
Spare parts
When it comes to spare parts for its products, MARTINS INDUSTRIES’ responsiveness and reliability as a commercial partner are what makes its customers come back for more. Please contact us for more information on Parts Requests.
Warranty Registration should be done direct on the Manufacturers website.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Martins Industries directly.
