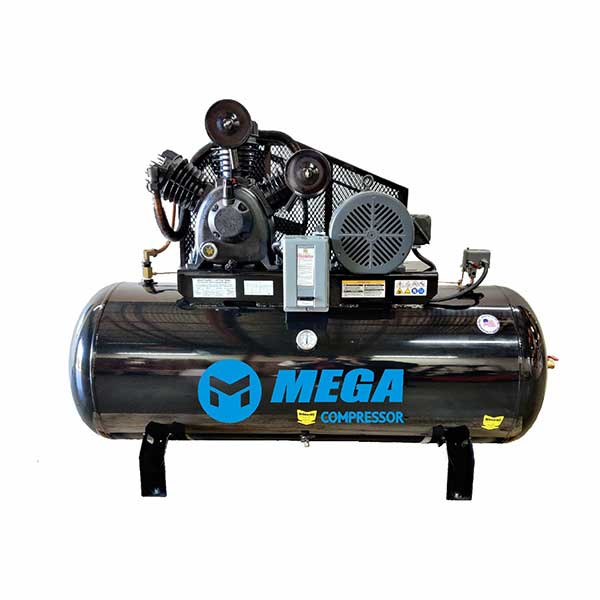

MEGA Compressor MP-10120H3 Horizontal Electric air Compressor 3 PHASE / 10 HP / 120 GAL

Financing From Low As $103 per Month
- Instant Approval - No hard credit pull - $500-$20,000



Electric Air Compressor

MEGA Compressor MP-10120H3-U Horizontal Electric air Compressor 3 PHASE / 10 HP / 120 GAL

  • VENDOR:-   Mega Compressor
  • SKU#   MP-10120H3-U
In Stock
  • $3,786.55

  • - +
    Only 0 left!




    Important Shipping Information:-
    • Orders received on Fridays after 11am EST will be processed the next business day
    All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
    What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More



    Description

    Mega Power MP-10120H3-U 208/230v 10 HP Horizontal Air Compressor 35 CFM @ 175 psi (200 psi max ) 3 Phase Power 208/230 Volt Two Stage.
  • 120 Gallon Horizontal Industrial Air Compressor, 10 HP, 230V 3 Phase – MP-10120H-U
  • Heavy Duty Industrial Motor – US MOTOR TEFC 3 Phase 230/460V Motor
  • Square D magnetic Starters
  • Less than 5 ppm oil carry over
  • Pump RPM 850 RPM
  • 3 Cylinder Design
  • 2 Stage Belt Driven with Solid Cast Iron Cylinder
  • Finned Inter cooler
  • Aluminum Head Gasket
  • 80 oz oil Capacity for extra cooling with oil sight glass
  • Cast iron Fly wheel
  • Splash Lubricated
  • Low oil shut down – this one we don’t recommended due to it is always a problem 6 month into usage on every compressors out there
  • Heavy Duty After cooler
  • Automatic Drain
  • UL & CSA approval on all electrical Components
  • ASME Coded pressure relief and Tanks – High Flow Coded ASME Safety Valve – Made in USA Tank
  • WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Specifications

    • US Motor – TEFC 10 HP Three-phase 230V/460V electric motor
    • Requires 30 Amp circuit
    • Full cast iron pump for long service life
    • W-style cylinder design for superior cooling
    • Pump head made of FC20 Cylinder FC25 Grade cast iron
    • FC25 Valve Plate Swedish steel valves deliver much longer valve life
    • Operates at slower RPM to run cooler and last longer
    • Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
    • One-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft
    • design 82% duty cycle
    • Delivers 34 @ 175 PSI
    • 200 max. PSI
    • Synthetic Lubricant Industrial 100
    • Oversized flywheel for cooler operation
    • Heavy cast iron flywheel provides extra momentum
    • Step-type piston rings ensure piston ring overlap for better compression
    • Sight glass for quick viewing of oil level
    • Replaceable crank journals and wrist pin journal/needle bearings
    • Two-piece connecting rods can be rebuilt for superior serviceability
    • High pressure piston wrist pins have needle bearings
    • Durable steel belt guard
    • Liquid Filed Pressure Gauge
    • Square D Magnetic starter
    • META – Bearing on Connection Rod
    • After cooler provides dry, high-quality air for your tools
    • Automatic tank drain means user does not have to reach under tank to drain
    • 3/4in. NPT outlet
    • 120-gallon ASME-certified vertical tank
