Electric Air Compressor

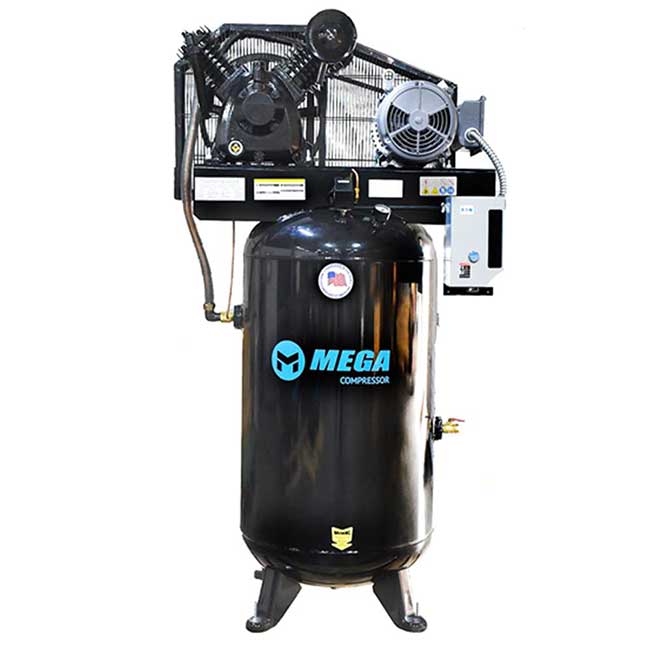

Mega Compressor MP-5080VMBA | 230V 5 HP Vertical Compressor 19 CFM, 80 Gallon
- VENDOR:- Mega Compressor
- SKU# MP-5080VMBA
Description
Mega Power MP-5080VMBA 1 Phase, 2 Stage 5.0 hp 230V Vertical Compressor, 80 gallon
FULL PACKAGE
The Mega 80-Gal. two-stage, electric air compressor is equipped with a 5 HP 1725 RPM single Phase 230 volt motor. The pump is a heavy duty, oil lubricated, Cast Iron 2 stage pump that produces 19 CFM at 175 PSI, (Max 175 PSI)
This unit is designed for heavy shop or industrial use the reliability and performance is ideal for most applications and users including automotive services and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance, repair shops and farms. It also features an A.S.M.E. Certified air tank, providing the professional with the highest quality safety standards.
- HORSE POWER 5 HP Industrial
- Auto Drain included
- Belt Guard After Cool included
- 4 x Vibration Pads included
- CFM DISPLACED 24 CFM
- CFM DELIVERED 19 CFM @ 175 PSI
- MOTOR RPM 1755 RPM
- Splash Lubrication
- 34 oz. PUMP OIL CAPACITY
- TANK CAPACITY 80 Gallons ASME
- SHIPPING WEIGHT 550 lb.
Specifications
- HORSE POWER 5 HP Industrial
- Auto Drain included
- Belt Guard After Cool included
- 4 x Vibration Pads included
- CFM DISPLACED 24 CFM
- CFM DELIVERED 19 CFM @ 175 PSI
- MOTOR RPM 1755 RPM
- Splash Lubrication
- 34 oz. PUMP OIL CAPACITY
- TANK CAPACITY 80 Gallons ASME
- SHIPPING WEIGHT 550 lb.
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options- Lift Gate Is Required.(+$150.00)
- I have a forklift for unloading Freight at My Business location
- I have a way of unloading Freight at my location
- Deliver to local freight terminal for pickup.
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.
