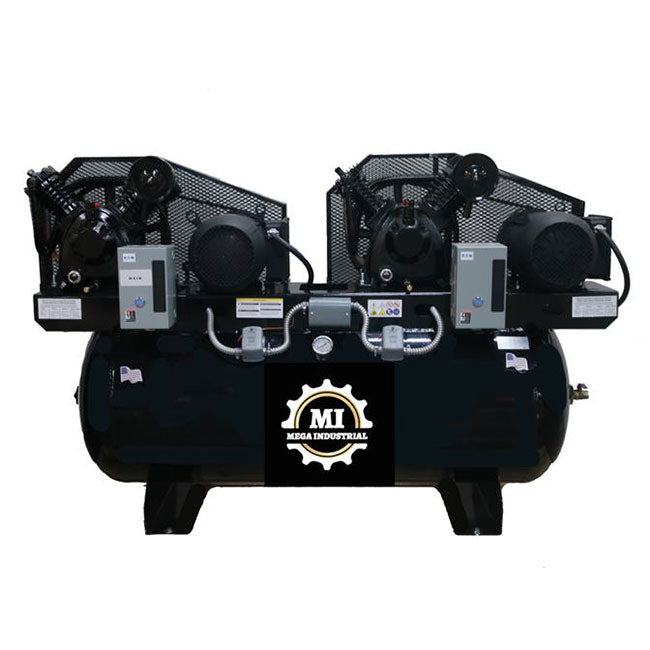

MEGA MP-75120DP3BA Industrial Duplex Electric Air Compressor 120 gal Horizontal Tank

Description

MEGA Industrial Duplex Electric Air Compressor MP-75120DP3BA -120 gal Horizontal Tank.

Model: MP-75120DP3BA

FEATURES & BENEFITS

• Cast iron, V cylinder, oil lubricated pump features
• One-piece cast iron crankcase
• Thermally stable cast iron cylinder body
• Aluminum head & machined cast iron valve plate
• Automotive style ball bearings
• Durable stainless steel reed valves
• Oil level sight glass
• Easily accessible oil fill
• Ball Valves included
• Heavy duty induction motor for maximum performance and efficiency
• 120 gallon Horizontal Tank
• 208 - 230 or or 460V Three Phase Motors
• Shipped with 100% full synthetic air compressor oil for optimum performance and long life
• Alternator Included
• After Cooler & Auto Drain Included.
• Square D Heavy Duty Pressure Switch

• Ability to choose 1 incoming or 2 incoming power.
• Build In USA

Please note this is 208 - 230 or 460V Three Phase Motors

Specifications

• Tank Size: 120 Gallon
• Maximum Pressure: 175 PSI
• CFM @ 175 PSI: 45 / 22
• Voltage: 208-230V or 460V
• Running HP: 15HP / 7.5HP
• Warranty: 1 Year Limited
• 208 - 230 Single Phase Motors or 460V Three Phase Motors
• Build In USA

Shipping

This Item Qualifies for FREE LTL SHIPPING  (via Truck)  it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

• Lift Gate Is Required.(+$150.00)
• I have a forklift for unloading Freight at My Business location
• I have a way of unloading Freight at my location
• Deliver to local freight terminal for pickup.

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Flyer
