Mi-T-M ACS-46305-80H Air Compressor 460V, 3 Ph, 6.9A
Mi-T-M ACS-46305-80H Air Compressor 460V, 3 Ph, 6.9A
Ships from Manufacturer
SKU: ACS-46305-80H
Couldn't load pickup availability
Description

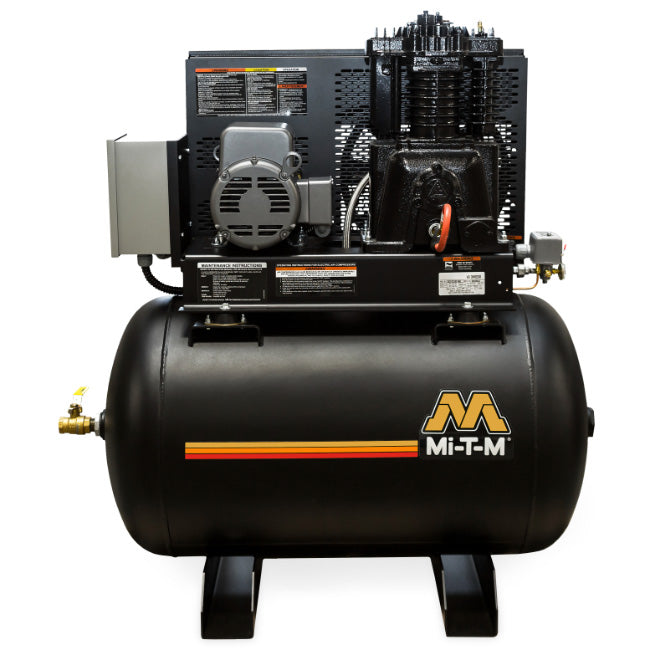

Mi-T-M ACS-46305-80H - 460V, 3Phase, 6.9A - ACS Series 5.0 HP Simplex Horizontal - 80-Gallon Air Compressor
MODEL ACS-46305-80H
80-Gallon
ACS Series – 5.0 HP Simplex Horizontal
These horizontal 80-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve
Models Available
ACS-23105-80H 230V, 1Phase, 23.0A 660 lb. ship wt./556 lb. net wt.
ACS-20305-80H 200V, 3Phase, 16.1A 630 lb. ship wt./526 lb. net wt.
ACS-23305-80H 230V, 3Phase, 13.8A 616 lb. ship wt./512 lb. net wt.
ACS-46305-80H 460V, 3Phase, 6.9A 616 lb. ship wt./512 lb. net wt.
Accessories (Not Included)
OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout
- IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
- IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank
- IX-0052 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
- IX-0056 Pneumatic Tank Drain – Automatically drains liquid from compressor tank; unit cannot include an after cooler
- IX-0057 Pneumatic Tank Drain – Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
- IX-0061 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0062 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0063 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
Warranty Information
- 1 Year Electric Motor
- 2 Year Pump Exchange
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- CFM @ PSI: 18.0 @ 175
- Pump RPM: 860
- Tank Size: 80-gallon
- Bolt Down (LxW): 20.75 x 23.5 in.
- Net Weight: 512 lb.
- Shipping Weight: 616 lb.
- Length: 52.00 in.
- Width: 26.50 in.
- Height: 53.00 in.
