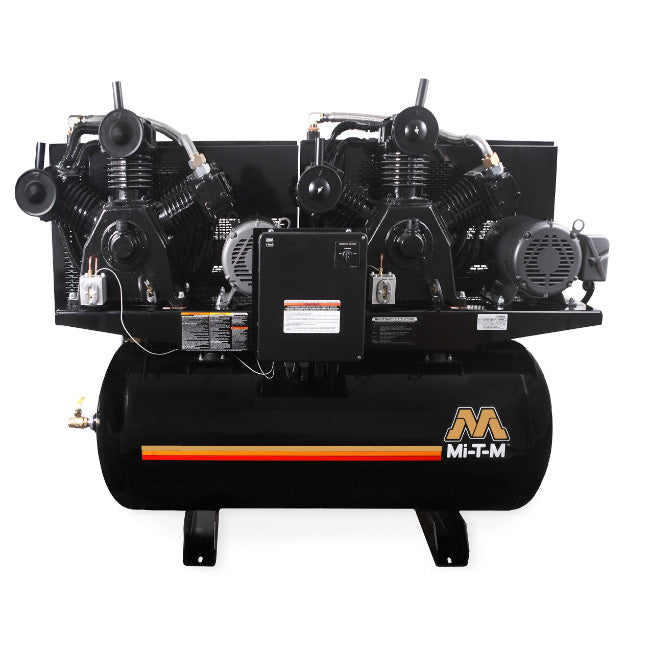

Mi-T-M AED-46315-120H Air Compressor 460V, 3 Ph, 38A
Mi-T-M AED-46315-120H Air Compressor 460V, 3 Ph, 38A
Ships from Manufacturer
SKU: AED-46315-120H
Couldn't load pickup availability
Description
Mi-T-M AED-46315-120H - 460V, 3Phase, 38.0A - AED Series 15.0 HP Duplex Horizontal - 120-Gallon Air Compressor
MODEL AED-46315-120H
120-Gallon
AED Series – 15.0 HP Duplex Horizontal
These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Models Available
AED-20315-120H 200V, 3Phase, 88.0A 1736 lb. ship wt./1586 lb. net wt.
AED-23315-120H 230V, 3Phase, 76.0A 1706 lb. ship wt./1556 lb. net wt.
AED-46315-120H 460V, 3Phase, 38.0A 1706 lb. ship wt./1556 lb. net wt.
Accessories (Not Included)
OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout
- IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
- IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank
- IX-0032 Pneumatic Tank Drain – Automatically drains liquid from compressor tank
- IX-0035 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
- IX-0064 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0065 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0066 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
Warranty Information
- 1 Year Electric Motor
- 2 Year Pump Exchange
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- CFM @ PSI: 93.0 @ 175
- Pump RPM: 810
- Tank Size: 120-gallon
- Bolt Down (LxW): 34.5 x 23.5 in.
- Net Weight: 1556 lb.
- Shipping Weight: 1706 lb.
- Length: 74.00 in.
- Width: 26.50 in.
- Height: 58.00 in.
