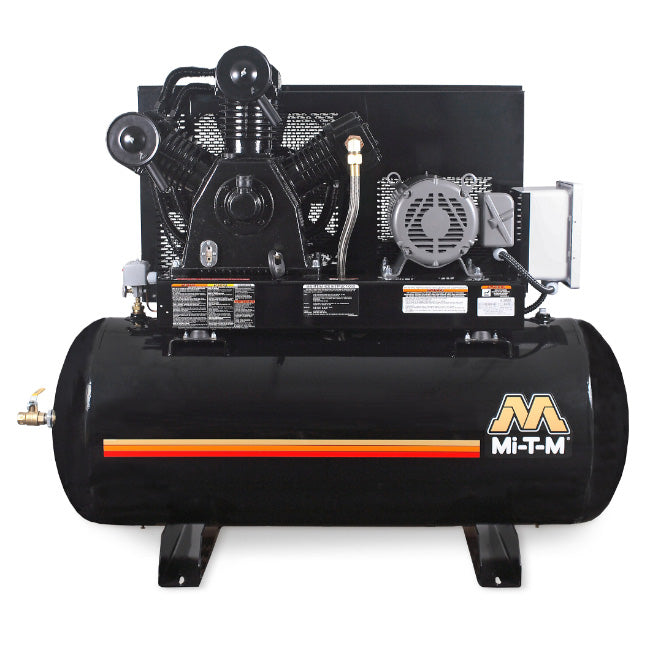

Mi-T-M AES-20315-120H Air Compressor 200V, 3 Ph, 44A
Mi-T-M AES-20315-120H Air Compressor 200V, 3 Ph, 44A
Ships from Manufacturer
SKU: AES-20315-120H
Couldn't load pickup availability
Description
Mi-T-M AES-20315-120H - 200V, 3Phase, 44.0A - AES Series 15.0 HP Simplex Horizontal - 120-Gallon Air Compressor
MODEL AES-20315-120H
120-Gallon
AES Series – 15.0 HP Simplex Horizontal
These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve
Models Available
AES-20315-120H 200V, 3Phase, 44.0A 1178 lb. ship wt./1028 lb. net wt.
AES-23315-120H 230V, 3Phase, 38.0A 1163 lb. ship wt./1013 lb. net wt.
AES-46315-120H 460V, 3Phase, 19.0A 1163 lb. ship wt./1013 lb. net wt.
Accessories (Not Included)
OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout
- IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
- IX-0004 After Cooler – Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
- IX-0006 Electric Tank Drain – Automatically drains liquid from compressor tank
- IX-0032 Pneumatic Tank Drain – Automatically drains liquid from compressor tank
- IX-0064 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0065 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
- IX-0066 Low Oil Monitor – Low oil sensor does not allow unit to start when oil levels fall below an adequate level
Warranty Information
- 1 Year Electric Motor
- 2 Year Pump Exchange
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- CFM @ PSI: 46.5 @ 175
- Pump RPM: 776
- Tank Size: 120-gallon
- Bolt Down (LxW): 34.5 x 23.5 in.
- Net Weight: 1028 lb.
- Shipping Weight: 1178 lb.
- Length: 74.00 in.
- Width: 26.50 in.
- Height: 58.00 in.
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options
- LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
- I have a forklift for unloading Freight at My Business location
- Deliver to local freight terminal for pickup.
- Lift Gate Is Required.(+$150.00)
- Residential Delivery.(+ $85.00)
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email or call (321)-423-5290 so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
Limited Warranty; Disclaimer of Warranty. Unless otherwise provided by the Company in writing, the Company warrants that all Company manufactured Products will substantially conform to the Company’s specifications for such Products and be free of any defect in materials or workmanship (the “Standard Product Warranty”) for the period of two (2) years (the “Product Warranty Period”); such period is measured from the date of shipment from the Company’s facility. This warranty applies to all Company-provided Products purchased, installed, and used properly for the purpose for which such Product was originally designed.
a. The Buyer’s sole and exclusive remedy for any breach of the Standard Product Warranty will be, at Company’s sole discretion and option, repair or replacement of the defective Product with functionally equivalent Product. At Company’s request Components that the Buyer claims to be defective shall be made available to Company for inspection and testing by the Buyer. To be entitled to rights under the Standard Product Warranty, the Buyer shall open a service request by contacting the Company by phone within thirty (30) days after discovering a suspected defect in any Product or Component, but in any event
prior to the expiration of the applicable Product Warranty Period, and shall request authorization from Company in accordance with Section 13 of this Agreement. Notice to a Company dealer, systems integrator, sales representative or other third party is not notice to Company. Following its receipt of any such Customer notice, Company will determine whether the reported problem is covered by the Standard Product Warranty. If Company determines that the problem is covered by the Standard Product Warranty, Company will authorize return or repair and reimbursement of repair costs of the defective Product or
Component by issuing such authorization. If Company authorizes the reimbursement of repair costs, Company agrees to reimburse Buyer for reasonable direct costs, as determined by Company, associated with the repair of the Product, including labor costs associated with diagnostics, removal of the Product and repair by Buyer.
b. Product Warranty Exclusions: To the full extent permitted by law, Company does not warrant, guarantee and is not responsible for:
i. Defects, failures, damages or performance limitations caused in whole or in part by (A) power failures, surges, fires, floods, snow, ice, lightning, excessive heat or cold, highly corrosive environments, accidents, actions of third parties, or other events outside of Company’s control, or (B) the Buyer’s abuse, mishandling, misuse, negligence, improper storage, servicing or operation, or unauthorized attempts to repair or alter the Product in any way.
ii. Product built to the Buyer’s specifications that is later found not to meet the Buyer’s needs or expectations.
iii. The performance of the Product when used in combination with Product not purchased from Company, or specified or approved by Company in writing.
THE COMPANY EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ARISING FROM COURSE OF DEALING OR USAGE OF TRADE, OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED CONDITIONS AND WARRANTIES OF MERCHANTABILITY, QUALITY, FITNESS FOR A PARTICULAR PURPOSE, CORRESPONDENCE WITH DESCRIPTION OR QUALITY, TITLE, QUIET POSSESSION AND NON-INFRINGEMENT.
Warranty Registration should be done direct on the Manufacturers website Mi-T-M.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact MI-T-M directly.
