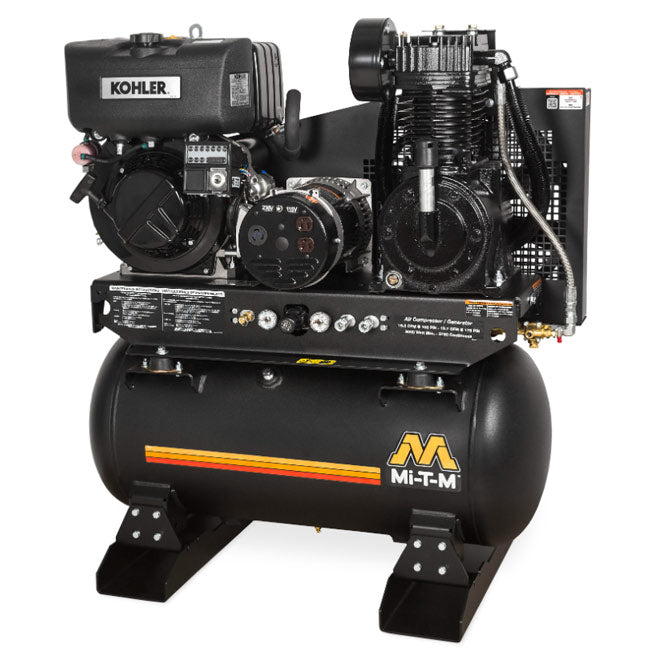

Mi-T-M AG2-SKD9-30M - 30-Gallon Two Stage Diesel Combination Air Compressor / Generator

Mi-T-M AG2-SKD9-30M - 30-Gallon Two Stage Diesel Combination Air Compressor / Generator

Ships from Manufacturer

SKU: AG2-SKD9-30M

Regular price $7,027.21 USD
$7,027.21 USD
Shipping calculated at checkout.
Total:
Quick Question
Mi-T-M Mi-T-M AG2-SKD9-30M - 30-Gallon Two Stage Diesel Combination Air Compressor / Generator | Tire Equipment Supply

Mi-T-M AG2-SKD9-30M - 30-Gallon Two Stage Diesel Combination Air Compressor / Generator

$7,027.21

Delivery Options

Description

Mi-T-M AG2-SKD9-30M - 30-Gallon Two Stage Diesel Combination Air Compressor / Generator

MODEL: AG2-SKD9-30M

AG2-SKD9-30M

This diesel combination unit has the convenience of two machines in one, providing power for most any industrial and contractor need.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Engine
Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Optional Accessoriess (Not Included)

  • IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for MODEL:s that are mounted in service truck applications
  • AX-0070 Battery Tray, Box and 2-Foot of Cables – Attaches to engine side of unit
  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables – Attaches to engine side of unit

Warranty Information

  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine

Additional Info

ASME Certification
Prop 65 Warning

WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
