Description

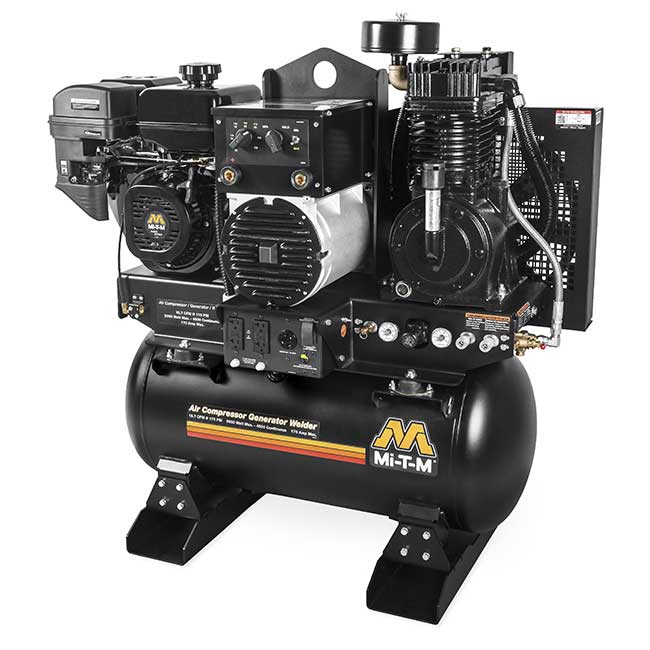

Mi-T-M AGW-SM14-30M - Welder/Generator/Air Compressor Combination

MODEL AGW-SM14-30M

Maximum performance in a single machine, the industrial air compressor, generator, welder combination can tackle any job in the shop or in the field.


Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME receiver tank · 16-gauge powder coated two-piece belt guard

Components:

  • Regulator and two gauges for tank and outlet pressure
  • Manual drain valves for proper maintenance
  • 16.5-inch fly wheel


AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle.


Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

All models sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • CFM @ 175 - 15.7
  • CFM @ 90 PSI: 16.4
  • Rated Speed: 3600 RPM
  • Displacement/ Engine: 420cc Mi-T-M OHV with Electric Start - Battery and Battery Cables Not Included
  • Tank Size: Not Applicable - 30 gallon
  • Max. AC Output: 5000 watts
  • Rated AC Output: 4500 watts
  • Alternator Wattage: Cont. On-Load @ 90 PSI: 3000 watts
  • Alternator Wattage: Cont. On-Load @ 175 PSI: 2500 watts
  • Frequency/Voltage; 60Hz/120V/240V
  • Max. Amps (120V/240V): 41.5/20.8 Off-Load
  • Cont. Amps (120V/240V): 37.5/18.8 Off-Load
  • Receptacles: (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
  • Duty Cycle (10 Min. Run Time); 150A @ 100%
  • DC Voltage: 50-170A Working Range
  • Fuel Tank: 1.85 gallon

Weights & Dimensions

  • Net Weight: 585 lbs.
  • Shipping Weight: 650 lbs.
  • Length: 46.00 in.
  • Width: 22.00 in.
  • Height: 47.00 in.
