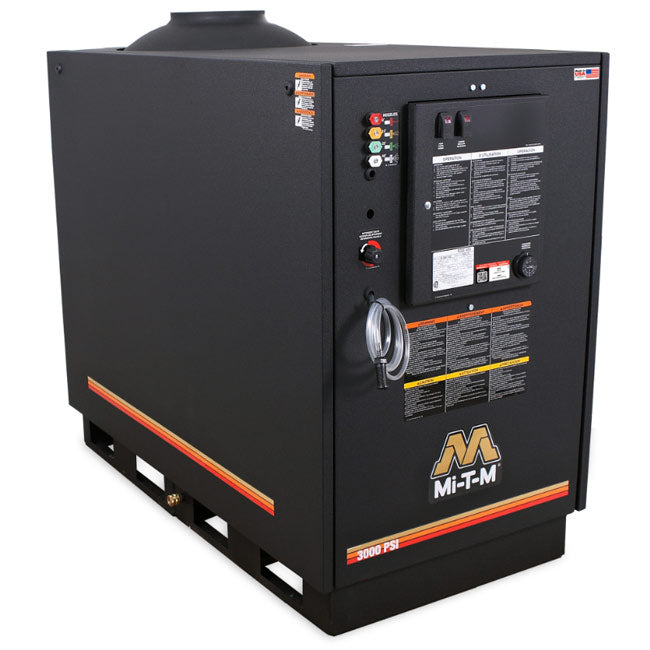

Mi-T-M HG-3004-1208 - HG Series Natural Gas/LP Belt Drive Pressure Washer
Mi-T-M HG-3004-1208 - HG Series Natural Gas/LP Belt Drive Pressure Washer
Ships from Manufacturer
SKU: HG-3004-1208
Couldn't load pickup availability
Description
Mi-T-M HG-3004-1208 - HG Series Natural Gas/LP Belt Drive Pressure Washer
MODEL: HG-3004-1208
HG-3004-1208
Providing maximum cleaning power, the stationary HG Series offers the convenience of a steady fuel source, making it the perfect solution for wash bays.
Pump
Factory preset trapping unloader · Thermal relief valve · Adjustable high pressure detergent injector
Motor
Open drip-proof motor electric motor with thermal overload protection
Frame
Powder coated steel side panels and frame
Components
Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24 volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with an intermittent pilot · Adjustable thermostat
Miscellaneous
Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
Optional Accessoriess (Not Included)
- HX-0104 K7 Unloader, Flow Activated - Auto Start/Stop N/A – Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released
- HX-0105 Liquid Propane - Vapor Only – Converts natural gas pressure washer to operate on liquid propane (vapor only)
- HX-0106 Hour Meter – Displays the number of hours unit has been in operation
- HX-0107 Time Delay Shutdown – Timer will shut unit off automatically when trigger gun is released and timer reaches setting **Consult factory before ordering this option.**
- HX-0108 (1) Remote Station - Auto Start/Stop N/A – Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
- HX-0109 Time Delay Shutdown and First Remote Box – Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
- HX-0110 Additional Remotes - Up To 3 – Additional remotes that may be added to unit after the first remote is installed
- HX-0111 Auto Start/Stop – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
- HX-0121 250°F Steam Upgrade – Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
- HX-0124 Auto Start/Stop and First Remote Option – When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
- HX-0296 Programmable Logic Controller – Includes auto start/ stop and timed lockout
- HX-0297 Programmable Logic Controller with First Remote – Includes auto start/stop, timed lockout and detergent solenoid
- HX-0299 Auto Start/Stop and First Remote Option - Metal Control Box – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; Adds metal control box, may be mounted away from unit to control on/off, burner and soap injection
- HX-0288 (1) Remote Station (Auto Start/Stop Not Available), Metal Control Box – Adds plastic control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**
- HX-0289 Time Delay Shutdown and First Remote, Metal Control Box – Timer will shut unit off automatically when trigger gun is released and timer reaches setting; adds metal control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**
- HX-0290 Addition Remotes (Up to 3), Metal Control Box – Additional metal control boxes with rocker switches, can be added to unit after the first remote is installed
- HX-0304 Programmable Logic Controller with First Remote, Metal Control Box – Includes auto start/stop and timed lockout
- HX-0305 Additional Programmable Logic Controller Remotes, Plastic Control Box – Adds additional remotes to PLC
- HX-0306 Additional Programmable Logic Controller Remotes, Metal Control Box – Adds additional remotes to PLC
Warranty Information
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year General Pump
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- PSI: 3000
- GPM: 3.9
- Horsepower/Motor: 8.0 HP, 208V, 1Ø, 40.5A
- Pump: General
- Natural Gas BTU Per Hour: 338,000
- LP Gas BTU Per Hour: 326,000
- Draft Diverter: 21 in.
- Net Weight: 759.00 lbs.
- Shipping Weight: 878.00 lbs.
- Length: 56.50 in.
- Width: 29.00 in.
- Height: 49.75 in.
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options
- LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
- I have a forklift for unloading Freight at My Business location
- Deliver to local freight terminal for pickup.
- Lift Gate Is Required.(+$150.00)
- Residential Delivery.(+ $85.00)
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email or call (321)-423-5290 so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
Limited Warranty; Disclaimer of Warranty. Unless otherwise provided by the Company in writing, the Company warrants that all Company manufactured Products will substantially conform to the Company’s specifications for such Products and be free of any defect in materials or workmanship (the “Standard Product Warranty”) for the period of two (2) years (the “Product Warranty Period”); such period is measured from the date of shipment from the Company’s facility. This warranty applies to all Company-provided Products purchased, installed, and used properly for the purpose for which such Product was originally designed.
a. The Buyer’s sole and exclusive remedy for any breach of the Standard Product Warranty will be, at Company’s sole discretion and option, repair or replacement of the defective Product with functionally equivalent Product. At Company’s request Components that the Buyer claims to be defective shall be made available to Company for inspection and testing by the Buyer. To be entitled to rights under the Standard Product Warranty, the Buyer shall open a service request by contacting the Company by phone within thirty (30) days after discovering a suspected defect in any Product or Component, but in any event
prior to the expiration of the applicable Product Warranty Period, and shall request authorization from Company in accordance with Section 13 of this Agreement. Notice to a Company dealer, systems integrator, sales representative or other third party is not notice to Company. Following its receipt of any such Customer notice, Company will determine whether the reported problem is covered by the Standard Product Warranty. If Company determines that the problem is covered by the Standard Product Warranty, Company will authorize return or repair and reimbursement of repair costs of the defective Product or
Component by issuing such authorization. If Company authorizes the reimbursement of repair costs, Company agrees to reimburse Buyer for reasonable direct costs, as determined by Company, associated with the repair of the Product, including labor costs associated with diagnostics, removal of the Product and repair by Buyer.
b. Product Warranty Exclusions: To the full extent permitted by law, Company does not warrant, guarantee and is not responsible for:
i. Defects, failures, damages or performance limitations caused in whole or in part by (A) power failures, surges, fires, floods, snow, ice, lightning, excessive heat or cold, highly corrosive environments, accidents, actions of third parties, or other events outside of Company’s control, or (B) the Buyer’s abuse, mishandling, misuse, negligence, improper storage, servicing or operation, or unauthorized attempts to repair or alter the Product in any way.
ii. Product built to the Buyer’s specifications that is later found not to meet the Buyer’s needs or expectations.
iii. The performance of the Product when used in combination with Product not purchased from Company, or specified or approved by Company in writing.
THE COMPANY EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ARISING FROM COURSE OF DEALING OR USAGE OF TRADE, OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED CONDITIONS AND WARRANTIES OF MERCHANTABILITY, QUALITY, FITNESS FOR A PARTICULAR PURPOSE, CORRESPONDENCE WITH DESCRIPTION OR QUALITY, TITLE, QUIET POSSESSION AND NON-INFRINGEMENT.
Warranty Registration should be done direct on the Manufacturers website Mi-T-M.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact MI-T-M directly.
