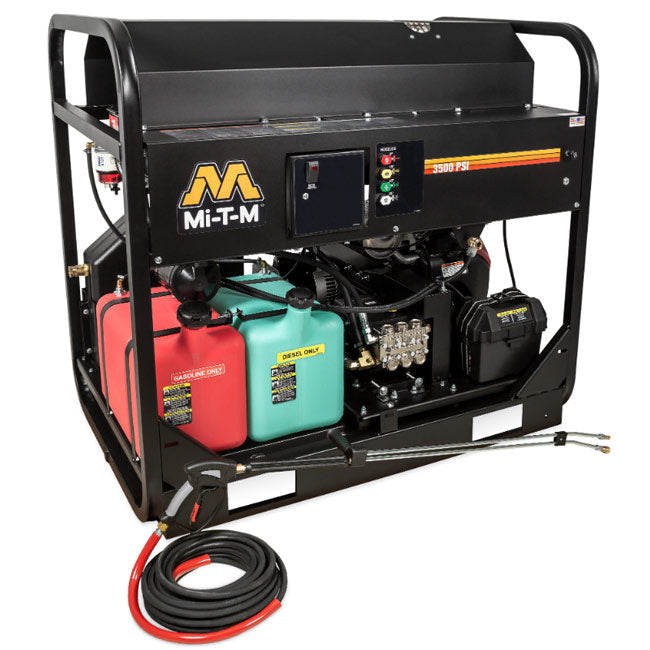

Mi-T-M HS-3505-1MGH - HS Series Gasoline Belt Drive Pressure Washer
Mi-T-M HS-3505-1MGH - HS Series Gasoline Belt Drive Pressure Washer
Ships from Manufacturer
SKU: HS-3505-1MGH
Couldn't load pickup availability
Description
Mi-T-M HS-3505-1MGH - HS Series Gasoline Belt Drive Pressure Washer
MODEL: HS-3505-1MGH
HS-3505-1MGH
Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.
Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer
Engine
Electric start - sealed battery included
Frame
Heavy-duty powder coated steel frame
Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.
Optional Accessoriess (Not Included)
- HX-0130 Three-way Ball Valve – Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
- HX-0131 High Pressure Detergent Injector, K7 – Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only
- HX-0133 Steam Combination 250°F, K7 – Increases outlet temperature to 250°F. Steam option for MODEL:s equipped with K7 flow actuated unloaders
- HX-0139 Steam Combination 250°F – Increases outlet temperature to 250°F **Requires trapping unloader. Consult factory before ordering this option**
- HX-0145 Adjustable Thermostat – Operator is able to adjust outlet water temperature between 86°F-248°F
- HX-0146 Hour Meter – Displays the number of hours unit has been in operation
- HX-0147 Four Point Lifting Capability – Allows unit to be lifted by crane
- HX-0148 Adjustable Detergent Valve – Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**
- HX-0200 Trapping Unloader – For longer hose runs and cleaning elevated areas
- HX-0252 Pressure Washer Option for PWR-10-0ME1 Trailer-Mount Package – Adds clutch drive pump option, larger 4.9 kW generator that is wired for burner and PWR-10-0ME1 with WX-0129 option
Warranty Information
- 3 Year Coil
- 3 Year Honda Engine
- 7 Year General Pump
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- PSI: 3500
- GPM: 4.7
- Displacement/ Engine: 688cc Honda GX630 OHV
- Pump: General
- Engine Fuel Tank Capacity: 10.0 gallon
- Burner Fuel Tank Capacity: 10.0 gallon
- Burner Fuel Cons.: 3.37 gph
- BTU Per Hour: 471,800
- Net Weight: 750.00 lbs.
- Shipping Weight: 854.00 lbs.
- Length: 50.00 in.
- Width: 34.00 in.
- Height: 46.00 in.
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options
- LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
- I have a forklift for unloading Freight at My Business location
- Deliver to local freight terminal for pickup.
- Lift Gate Is Required.(+$150.00)
- Residential Delivery.(+ $85.00)
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email or call (321)-423-5290 so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
Limited Warranty; Disclaimer of Warranty. Unless otherwise provided by the Company in writing, the Company warrants that all Company manufactured Products will substantially conform to the Company’s specifications for such Products and be free of any defect in materials or workmanship (the “Standard Product Warranty”) for the period of two (2) years (the “Product Warranty Period”); such period is measured from the date of shipment from the Company’s facility. This warranty applies to all Company-provided Products purchased, installed, and used properly for the purpose for which such Product was originally designed.
a. The Buyer’s sole and exclusive remedy for any breach of the Standard Product Warranty will be, at Company’s sole discretion and option, repair or replacement of the defective Product with functionally equivalent Product. At Company’s request Components that the Buyer claims to be defective shall be made available to Company for inspection and testing by the Buyer. To be entitled to rights under the Standard Product Warranty, the Buyer shall open a service request by contacting the Company by phone within thirty (30) days after discovering a suspected defect in any Product or Component, but in any event
prior to the expiration of the applicable Product Warranty Period, and shall request authorization from Company in accordance with Section 13 of this Agreement. Notice to a Company dealer, systems integrator, sales representative or other third party is not notice to Company. Following its receipt of any such Customer notice, Company will determine whether the reported problem is covered by the Standard Product Warranty. If Company determines that the problem is covered by the Standard Product Warranty, Company will authorize return or repair and reimbursement of repair costs of the defective Product or
Component by issuing such authorization. If Company authorizes the reimbursement of repair costs, Company agrees to reimburse Buyer for reasonable direct costs, as determined by Company, associated with the repair of the Product, including labor costs associated with diagnostics, removal of the Product and repair by Buyer.
b. Product Warranty Exclusions: To the full extent permitted by law, Company does not warrant, guarantee and is not responsible for:
i. Defects, failures, damages or performance limitations caused in whole or in part by (A) power failures, surges, fires, floods, snow, ice, lightning, excessive heat or cold, highly corrosive environments, accidents, actions of third parties, or other events outside of Company’s control, or (B) the Buyer’s abuse, mishandling, misuse, negligence, improper storage, servicing or operation, or unauthorized attempts to repair or alter the Product in any way.
ii. Product built to the Buyer’s specifications that is later found not to meet the Buyer’s needs or expectations.
iii. The performance of the Product when used in combination with Product not purchased from Company, or specified or approved by Company in writing.
THE COMPANY EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ARISING FROM COURSE OF DEALING OR USAGE OF TRADE, OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED CONDITIONS AND WARRANTIES OF MERCHANTABILITY, QUALITY, FITNESS FOR A PARTICULAR PURPOSE, CORRESPONDENCE WITH DESCRIPTION OR QUALITY, TITLE, QUIET POSSESSION AND NON-INFRINGEMENT.
Warranty Registration should be done direct on the Manufacturers website Mi-T-M.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact MI-T-M directly.
