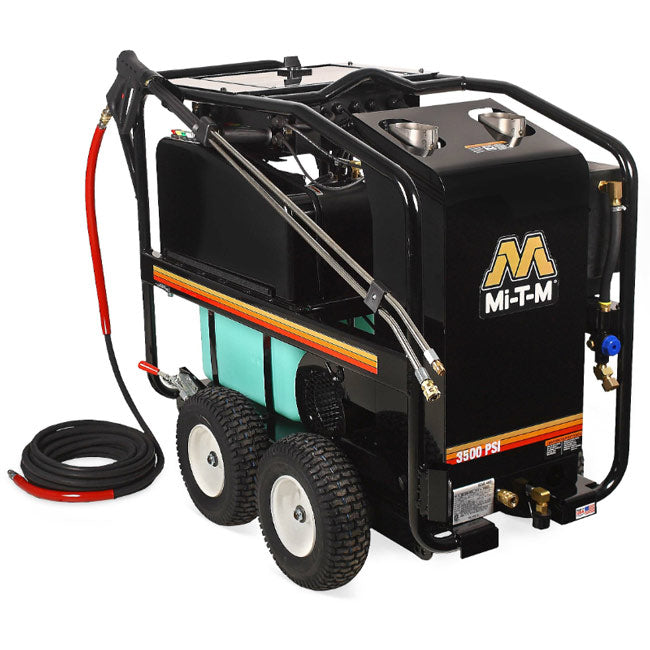

Mi-T-M HSE-3504-0M30 - HSE Series Electric Belt Drive Pressure Washer
Mi-T-M HSE-3504-0M30 - HSE Series Electric Belt Drive Pressure Washer
Ships from Manufacturer
SKU: HSE-3504-0M30
Couldn't load pickup availability
Description
Mi-T-M HSE-3504-0M30 - HSE Series Electric Belt Drive Pressure Washer
MODEL: HSE-3504-0M30
HSE-3504-0M30
Contractors rely on the HSE Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.
Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires
Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
Optional Accessoriess (Not Included)
- HX-0070 Auto Start/Stop – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
- HX-0073 Auto Start/Stop - Steam – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
- HX-0074 Auto Start/Stop - CAD Cell – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
- HX-0077 Auto Start/Stop - Steam - CAD Cell – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
- HX-0087 460V on 10.0 HP, 3 Phase MODEL:s – Upgrades 230V, 3-phase MODEL:s to operate at 460V, 3-phase
- HX-0088 Skid Feet – Stationary applications
- HX-0161 Hour Meter – Displays the number of hours unit has been in operation
- HX-0294 Adjustable Thermostat – Operator is able to adjust outlet water temperature between 86°-248°F
Warranty Information
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year General Pump
Additional Info
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- PSI: 3500
- GPM: 3.3
- Horsepower/Motor: 10.0 HP, 230-460V, 3Ø, 28.0A
- Pump: General
- Plug Type: NEMA L15-30P
- Burner Fuel Tank Capacity: 10.0 gallon
- Burner Fuel Cons.: 2.10 gph
- BTU Per Hour: 294,000
- Net Weight: 612.00 lbs.
- Shipping Weight: 742.00 lbs.
- Length: 49.50 in.
- Width: 28.00 in.
- Height: 40.50 in.
