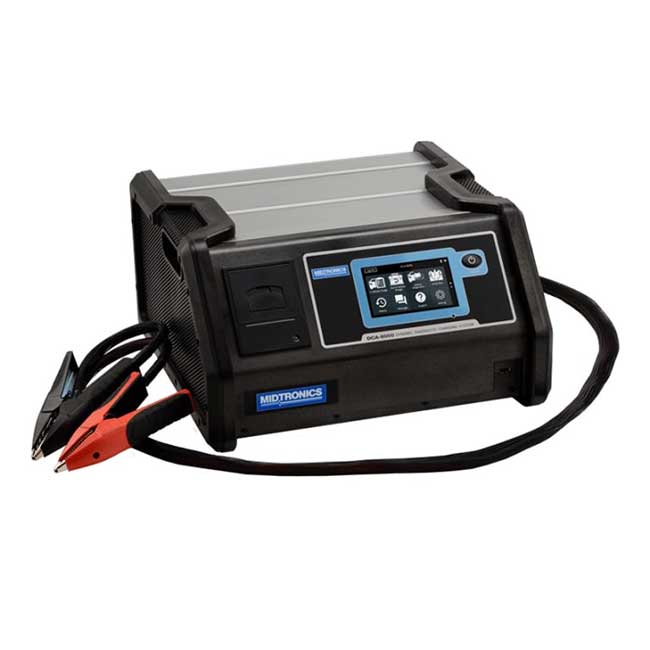

MIDTRONICS DCA-8000P BAR KIT Dynamic Diagnostic Charging System & Cart

Description

MIDTRONICS DCA-8000P BAR KIT - Dynamic Diagnostic Charging System with Printer, Wheel Cart and Barcode Scanner.

Part Number: DCA-8000P BAR KIT

The Midtronics DCA-8000P BAR KIT is a state-of-the-art Dynamic Diagnostic Charging System that incorporates innovative core technology. While Midtronics products are created to fulfill a range of battery and electrical system maintenance needs, some unique characteristics of specific products may make them a more appropriate match for your specific service needs.

This product, in particular, is ideally suited for managing batteries.

DYNAMIC CHARGE ACCEPTANCE

More Accurate Picture of True Battery Condition. Using the built in 300A (optional 500A) load, DCA-8000 mimics a start event and then charges the battery to verify the battery can support advanced vehicle system applications like start-stop. This enables DCA-8000 to more accurately judge true battery condition. Combined with Conductance Profiling, DCA-8000 ensures service readiness for emerging vehicle systems, battery types, and new points of battery failure.

Includes:

• 3M (9.8’) Test Leads
• 3M (9.8’) Power Cable
• Integrated Printer

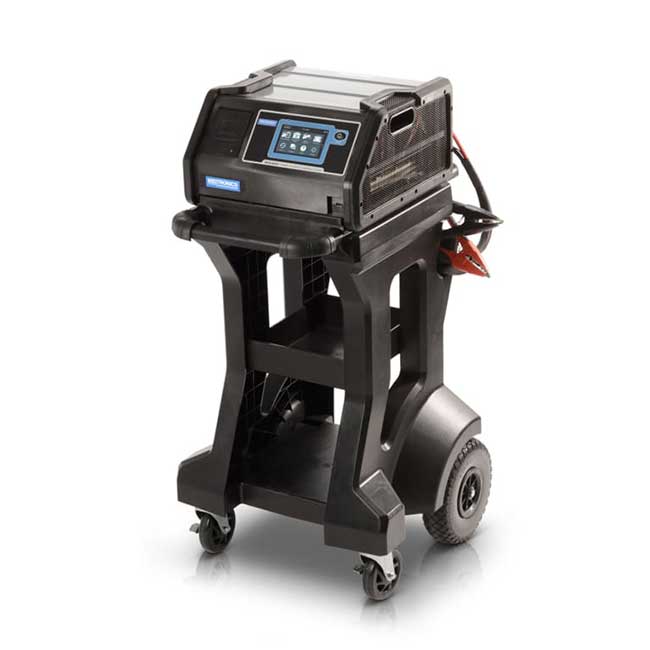

• Wheeled Cart

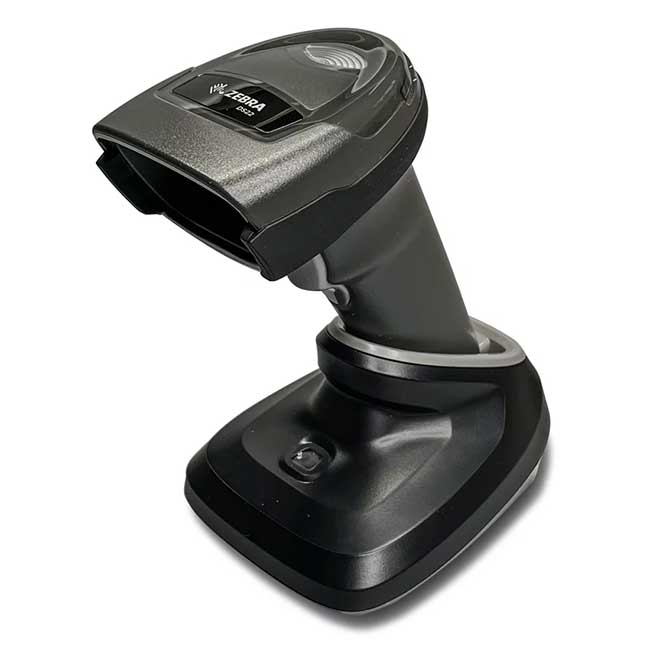

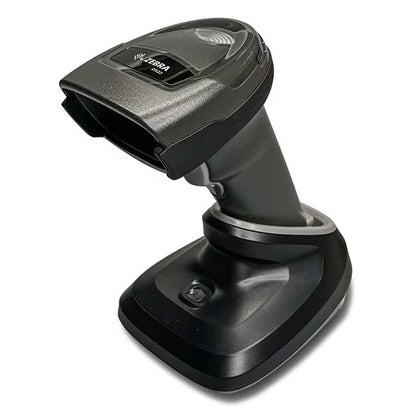

• Barcode Scanner

Features:

• Diagnoses most batteries in 2 minutes or less
• Charges as fast as possible through continuous battery monitoring
• Delivers the most accurate battery diagnostic technology
• Detects battery failures due to advanced vehicle electronics
• Supports automated over-the-air software updates and data analytics
• Enhances productivity via intuitive touchscreen user interface

DCA-8000 SELECTED FEATURES

• Dynamic Charge Acceptance
• Optimized Charging
• Configurable minimum / maximum voltage output in manual charge mode: 12.0 – 14.4 VDC in 0.1 V increments
• Improved Charge Time Calculation
• Up to 500A Load
• Dual Temperature Sensors
• Cold Battery Charging
• Field-replaceable Cables
• Corded and Wireless Barcode Scanner Options for VIN Capture

ANALYTICS AND COMMUNICATION

• BMIS integration supports automated over-the-air software updates and analytical reporting
• Capture charge session times
• Review diagnostic charge data
• Visibility into process compliance
• Reporting on self-diagnostics to improve tool uptime
• E-mail results via built-in Wi-Fi
• Print results via networked Wi-Fi printer or optional integrated printer

Specifications

DCA-8000PKIT INCLUDES:

• 3M (9.8’) Test Leads
• 3M (9.8’) Power Cable
• Integrated Printer
• Wheeled Cart
• Barcode Scanner

Charge Cables

• 3M (9.8’) Test Leads
• 3M (9.8’) Power Cable

Power Cord

• Accepts locking C19 locking connector for region-specific power cables:
• United States: NEMA 5-15 termination, rated at 15A/125V UL CSA

Applications

• Automotive
• Power Sports
• Marine

Battery Chemistries

• Flooded lead acid
• AGM (flat and spiral)
• EFB
• Gel
• Li-ion

Rating System

• CCA
• CA
• MCA
• JIS
• DIN
• SAE
• IEC
• EN
• EN2

Operating Parameters

• Input Voltage: 100-240~, 50-60 Hz,
• 12A maximum
• Output: 12VDC; 70A maximum

Temperature

• Operating temperature range: 0°C to +60°C (32°F to +140°F)
• Storage temperature range: -10°C to + 85°C (14°F to 185°F)

Humidity

• 15% to 85% R.H., non-condensing

Dimensions

• Height: 9.37” in (23.8 cm)
• Width: 17.25” in (43.81 cm)
• Depth: 17.82” in (45.26 cm)
• Weight: 37.4 lbs (21.55 kg)

Certifications

• UL CUL
• FCC ETL
• RoHS

Connectivity

• Wi-Fi
• n 802.11 b/g/n 2.4GHz
• n Security – WEP, WP, WPA-2
• Serial
• Serial CAN bus interface

Bluetooth

• n2.0

USB 2.0 connection
BTLE
Safety Features

• Reverse polarity
• Clamp connection
• Non-12V battery connection
• Battery voltage too low ( 5.5 V)
• Clamp high temperature detection

BMIS-Enabled

• Remote “over the air” software updates
• Remote diagnostics
• Enterprise asset management
• Reporting and analytic tools
• Communication with next generation
• Midtronics platforms and tools

User Interface

• Advanced navigation and charge applications
• Remote notifications
• (Wi-Fi- or Bluetooth-enabled)
• Intuitive charge cycle feedback
• 5” color touch-screen display
