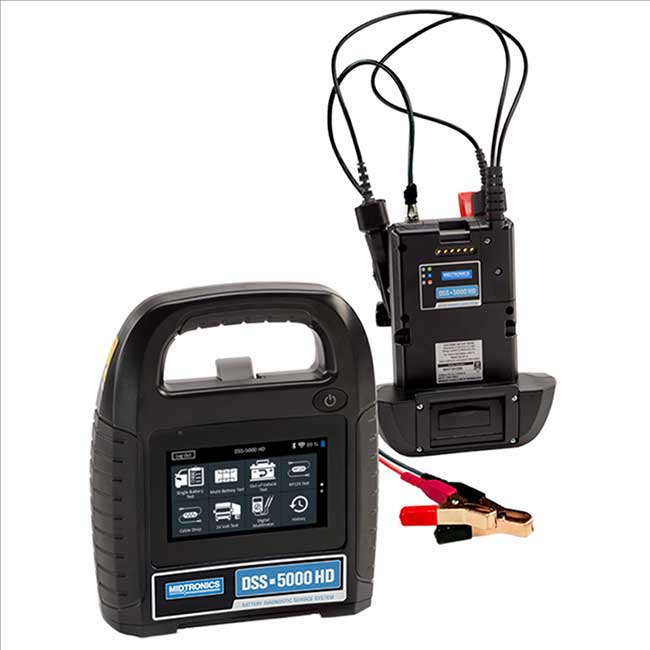

MIDTRONICS DSS-5000 HD KIT Heavy Duty Battery & Electrical System Analyzer

Description

MIDTRONICS DSS-5000 HD KIT Heavy Duty Battery & Electrical System Analyzer with Amp Clamp.

Part Number: DSS-5000 HD KIT

The DSS-5000 HD KIT has been developed to cater to the needs of Heavy-Duty Commercial Truck and Fleet applications. Midtronics, the manufacturer, has incorporated an advanced load feature in this latest version, ensuring more precise readings than previous tools.

This innovative tool provides diagnostics for 12- and 24-volt battery packs, starters, and alternators. It is also designed to comply with RP 129, a Technology & Maintenance Council Recommended Practice for electrical system diagnostics. Additionally, the DSS-5000 HD KIT comes equipped with pre-programmed service applications, including test flows that conform to RP 129 standards, pack testing, and cable drop testing procedures. These features make testing more user-friendly, reducing the risk of errors.

Includes proprietary Midtronics Conductance Profiling™ technology that loads the battery to identify batteries with poor reserve capacity that may start the vehicle, but could fail to support vehicle accessories
Saves testing time by allowing user to test the battery pack while still assembled in the vehicle. If the pack looks questionable, then the tester will prompt the user to disconnect the pack to test each battery individually.

Includes:

Tester, Charging Dock, And Amp Clamp.

Features:

• Print test results on a networked printer via built-in Wi-Fi
• Includes multimeter cable for cable drop testing
• 3-meter (9.84’) field-replaceable heavy-duty test leads
• Optional amp clamp and integrated printer available (see model options below)

• Durable three-piece design includes a detachable controller with 5-inch full-color touchscreen display, tester pod, and charging dock
• Accessories: A401 10-pack Printer Paper Rolls, A657 Amp Clamp, A658 USB Cable type A to Micro

ADVANCED SYSTEM DIAGNOSTICS:

• Conductance Profiling™ loads the battery and delivers enhanced diagnostics, providing significantly fewer ’Charge & Retest’ decisions, as well as battery reserve capacity warnings
• Supports conventional lead acid, EFB, AGM, and Pure Lead batteries
• Service apps promote quick, error-free testing
• Full-color touchscreen on removable controller provides easy system navigation, detailed reference information and test results
• On-tool Wi-Fi and Bluetooth capabilities support flexible networking capabilities

ANALYTICS AND COMMUNICATION:

• Capture and review battery testing data
• Better manage and track warranty information
• Gain visibility into process compliance
• E-mail diagnostic results
• Wireless Communications: Class 2 Bluetooth
• Wi-Fi Communications:2.4 Ghz 802.11 b, g, n

Specifications

• Group 31
• Commercial 4D / 8D
• Automotive
• Pure Lead

SUPPORTED BATTERIES / ELECTRICAL SYSTEM:

• Flooded Lead Acid
• Enhanced flooded (EFB)
• Absorbed Glass Mat (AGM) Spiral and Gel
• NorthStar and Odyssey Pure Lead
• 12- and 24-volt charging systems

BATTERY RATINGS:

• CCA
• CA
• MCA
• JIS
• DIN
• SAE
• IEC
• EN
