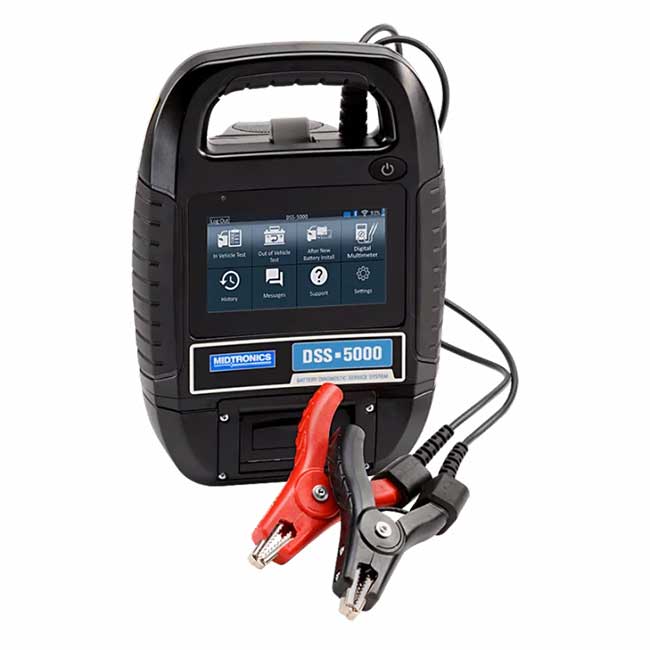

MIDTRONICS DSS-5000P Kit Battery Diagnostic Service System

Description

MIDTRONICS CPX-900PL 12v Battery & Electrical System Analyzer With Printer & Clamp Set, 10ft. Leads.

Part Number: DSS-5000P

By utilizing Conductance Profiling, the DSS-5000 Battery Service Diagnostic System provides in-depth information about battery State of Charge (SOC) and State of Health (SOH), resulting in significantly fewer Charge & Retest decisions and battery reserve capacity warnings. This versatile tool is capable of diagnosing conventional lead-acid, AGM, and EFB batteries as well as advanced vehicle systems. The base model features a detachable controller with a 5-inch touchscreen display, while the DSS-5000P adds an integrated printer and charging/storage dock.

Includes:

Testers With Integrated Printer, Charging Dock, Amp Clamp, And CVG.

Features:

• Pre-programmed service apps that promote quick error-free testing
• VIN capture through integrated camera
• Automatic software updates delivered wirelessly with Midtronics Battery Management Information System (BMIS) program maintenance
• Battery test data and tool usage / status analytics available with BMIS
• DSS-5000P KIT: Includes controller, tester pod with integrated printer, CVG-2BT convergence module, A657 amp clamp, 2-ft battery test cables, charging/storage dock, AC power adapter/charger, lead stud adapters, printer paper

Includes:

• Controller
• Tester pod with integrated printer
• CVG-2BT convergence module
• A657 amp clamp
• 2-ft battery test cables
• Charging/storage dock
• AC power adapter/charger
• Lead stud adapters

Specifications

• Warranty 1 YEARS
• Warranty Details This limited warranty applies only to Midtronics products and does not cover any other equipment, static damage, water damage, overvoltage damage, dropping the unit, or damage resulting from extraneous causes including owner misuse.
• Interfaces I/O Bluetooth, Wifi, USB
• Shipping Weight 10 LBS
• HTS/Schedule B Number 9030.33.0040
• Battery Type Other
• Power Supply Voltage Battery Powered
• Country of Origin United States
• Shipping Height 8 IN
• Shipping Length 19 IN
• Shipping Width 10 IN

Shipping

This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

Price will be calculated at check-out.

UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

*Note: If you are having trouble checking out, please call us at  (706) 478-0072.

OR

If you have a special shipping request you need arranged, please email
 or call us.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

MIDTRONICS DSS-5000P Kit Flyer

MIDTRONICS DSS-5000P Kit Manual

Video

Midtronics DSS 5000 - Introduction.
