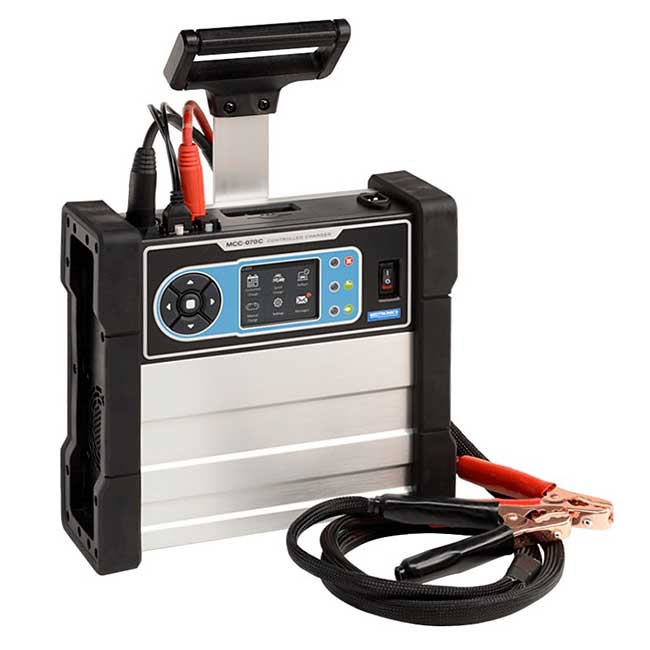

MIDTRONICS MCC-070-CH2 - Controlled Charger, 70 Amp
MIDTRONICS MCC-070-CH2 - Controlled Charger, 70 Amp
BRAND: MIDTRONICS
SKU: 070-CH2
In Stock
Couldn't load pickup availability
MIDTRONICS MCC-070-CH2 - Controlled Charger, 70 Amp
Part Number: MCC-070-CH2
Introducing the MCC-070-CH2 Battery Charger, the ultimate solution for quick and safe battery charging. This powerful charger supports a wide range of battery chemistries and charging applications, making it a must-have for any service shop or garage.
With its battery chemistry-specific charging technology, the MCC-070 adjusts its charging profile based on the selected battery type, ensuring optimal charging performance and battery life. You can choose from AGM, EFB, or standard flooded batteries and rest assured that the MCC-070 will deliver the precise charging voltage and settings for your battery.
In addition to its flexible charging capabilities, the MCC-070 also supports automated over-the-air software updates and data analytics. You can capture and review charge session data, gain visibility into process compliance, and receive reporting on self-diagnostics to improve tool uptime. You can even email the charging results via built-in Wi-Fi.
The MCC-070 is the ultimate battery charger for professionals who demand advanced capabilities and precise results. Whether you need to maintain your battery during service, charge it prior to returning a vehicle, or supply power during an ECU reflash, the MCC-070 delivers the charging performance you need. Order now and experience the power of the MCC-070 Battery Charger.
Features:
- Features selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types
- Avoid potential battery damage from drain during demos, display, or extended vehicle service
- Maintain vehicle electronic and accessory settings
- Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
- Certifications: UL, FCC, CEC (California), CUL, CE, RoHS
- MSP-070-5: Includes power supply charger, AC power cord, 5m field-replaceable charge cable
Includes:
- 70 Amp Controlled Charger With Carry Handle And 2-Meter Cables
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Charge Cables
- 2m (Standard)
- 3m
- 5m
Power Cord
- Accepts locking C13 connector for region-specific power cables:
- United States: EMA 5-15 termination, rated at 15A/125V UL CSA
- EU & Latin America: 10A/250V IEC60320 / VDE
- Japan: PSE 15A/125V
Applications
- Automotive
- Heavy-Duty
- Power Sports
- Marine
- Group 31
- Commercial 4D/8D
Battery Chemistries
- Lead acid
- AGM
- EFB
- Lithium ion
Rating System
- CCA
- CA
- MCA
- JIS
- DIN
- SAE
- IEC
- EN
Operating Parameters
- Input Voltage: 120 VAC; 60 Hz;
- 12A maximum, 240 VAC, 50 Hz,
- 10A maximum
- Output: 15VDC; 70A maximum
- Humidity
- 15% to 85% R.H., non-condensing
Temperature
- Operating temperature range: 0°C to +60°C (32°F to +140°F)
- Storage temperature range: -10°C to + 85°C (14°F to 185°F)
Certifications
- CUL • RoHS
- TUV • CEC
- FCC
Connectivity
- Wi-Fi
- n 802.11 b/g/n 2.4GHz
- n Security – WEP, WP, WPA-2 Enterprise
Bluetooth
- n 2.0 n USB 2.0 connection
- n BTLE
- CAN bus interface
Safety Features
- Reverse polarity
- Clamp connection
- Non-12V battery connection
- Battery voltage too low ( 5.5 V)
- Clamp high temperature detection
BMIS-Enabled
- Remote “over the air” software updates
- Remote diagnostics
- Enterprise asset management
- Reporting and analytic tools
- Communication with next generation
- Midtronics platforms and tools
User Interface
- Advanced navigation and charge applications
- Remote notifications (Wi-Fi- or Bluetooth-enabled)
- Intuitive charge cycle feedback
- 3.5” color display
- 5-button keypad
Dimensions
- (without handle or base)
- Height: 4.80 in (12.19 cm)
- Width: 13.1 in (33.27 cm)
- Length: 12.0 in (30.48 cm)
- Weight:18 lbs
