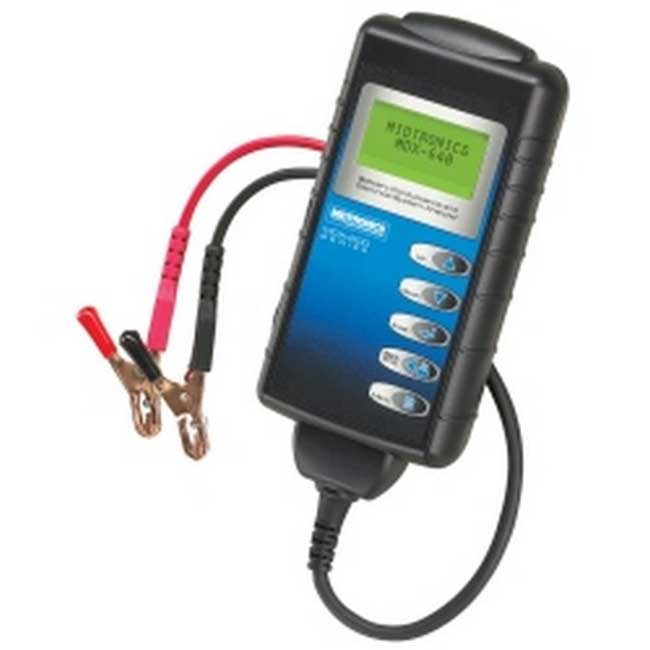

MIDTRONICS MDX-640 Battery Conductance Analyzer

Description

MIDTRONICS MDX-640 12v Battery Conductance Analyzer For 6 and 12 Volt Batteries.

Part Number: MDX-640

Get precise and hassle-free results with the Midtronics MDX-P300 Battery and Electrical System Tester. Featuring an integrated printer, this tester makes it easy and cost-effective to determine the current state of a battery and electrical system. Its patented conductance technology delivers accurate results within seconds without the risk of heat or sparks.

The MDX-P300 is a trusted tool used for warranty testing and preventative maintenance by automotive dealers and service providers worldwide. Plus, the printed results can be reviewed with customers immediately, enhancing their preventative maintenance routines and overall satisfaction.

With Industry Standard Conductance Technology For Battery Testing, The MDX Series Is:

• SAFE | Worry-free operation anywhere, even in front of customers
• FAST | Accurate testing of the battery or electrical system in seconds
• SIMPLE | Proven user interface eliminates guesswork and user error to provide an accurate analysis every time

The MDX Series Delivers Solid Benefits:

• Save time and money with improved battery and electrical diagnostic productivity
• Improve customer service by reducing wait time
• Increase sales by proactively testing batteries and electrical systems
• Promote customer satisfaction by identifying potential problems before they occur

MDX Series Advanced Features Include:

• Multiple vehicle applications, battery types, and rating systems
• Large back-lit screen and improved user interface
• Integrated printer option
• Replaceable cable design

The Complete Tool For All Vehicle And Battery Applications:

• Vehicle Applications |
• Automotive
• Motorcycle
• Marine Cranking
• Lawn and Garden
• Group 31
• Commercial 4D/8D
• Battery Type |
• Regular flooded
• AGM flat plate
• AGM spiral
• Gel
• Global Systems |
• CCA
• CA
• MCA
• JIS
• SAE
• EN
• DIN
• IEC
• 6 & 12 volt batteries

Includes:

Analyzer, Manual, Lead Stud Adapter Set, 4-Ft Cable Set.

Features:

• Integrated printer provides immediate results to review with the customer
• User-defined headers on printout
• Tests 12 volt batteries and electrical systems for cars and light trucks
• Tests starting and charging system voltage and displays results
• Tests batteries from 100 to 1400 CCA
• Bad cell detection
• Reverse polarity protection
• Tests discharged batteries down to one volt
• Multiple rating system compatible (CCA, CA, MCA, SAE, DIN, EN, IEC, JIS)
• Tests multiple battery chemistries including standard flooded, AGM, and GEL
• Multiple language

Specifications

• Model | MDX-640 Battery Conductance Analyzer for battery testing only (6 and 12 volt batteries)
• Applications |
• Automotive
• Motorcycle
• Marine Cranking
• Lawn & Garden
• Group 31
• Commercial 4D/8D
• 6 & 12 Volt batteries
• 12 & 24 Volt charging systems (650/650P Only)
• Display | 5-line Text/Graphical Backlit Display
• Operating Temperature | 0°C to +50°C (32°F to +122°F)
• Test Range |
• CCA: 100-2000 BY 5
• CA: 100-2000 BY 5
• MCA: 100-2000 BY 5
• JIS#: By Part Number
• EN: 100-2000 BY 5
• DIN: 100-1200 by 5
• SAE: 100-2000 by 5
• IEC: 100-1200 by 5
• Voltage Range | 1Vdc – 30Vdc
• Cable Length |
• 4-ft/122cm (MDX-640)
• Power Requirements | Uses the power of the battery under test and 6AA internal batteries
• Languages |
• English
• Spanish
• French-Canadian
• Portuguese
• Housing Material | Acid-resistant ABS plastic
• Dimensions | MDX-640: 7.7” x 3.9” x 2.4” (19.5cm x 10cm x 5cm)
• Weight | MDX-640: 1.2 lbs (544g)
