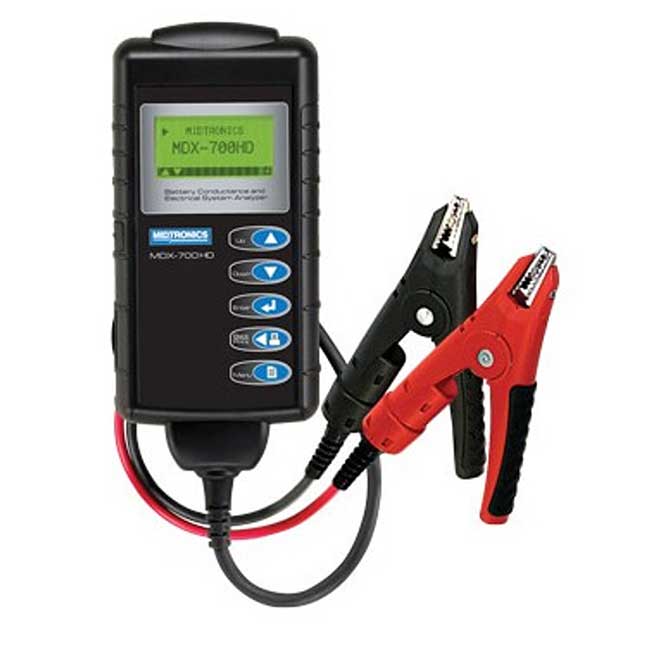

MIDTRONICS MDX-700HD Heavy Duty Battery Conductance and Electrical System Analyzer
MIDTRONICS MDX-700HD Heavy Duty Battery Conductance and Electrical System Analyzer
BRAND: MIDTRONICS
SKU: 700HD
In Stock
Couldn't load pickup availability
MIDTRONICS MDX-700HD Heavy Duty Battery Conductance and Electrical System Analyzer.
Part Number: MDX-700HD
MDX-700 HD from Midtronics - the industry leader in battery and electrical diagnostics. This battery tester is made exclusively for heavy-duty commercial fleets and is equipped with advanced conductance technology, making it super easy for you to test the entire electrical system of your heavy-duty vehicle.
What's more, the MDX-700 HD offers great testing functionality for your heavy-duty or commercial vehicle, featuring all the testing functionality of the MDX-600 series and the ability to test multiple battery systems that are commonly found in trucks and commercial equipment.
Includes:
Tester, Heavy-Duty Field-Replaceable 15’ Testing Cables, Lead Stud Adapters, Carrying Bag.
Features:
- In-vehicle capabilities for analyzing the starting and charging systems
- Complete system information in an easy-to-read format
- Starter/ Alternator testing
- Quick starter analysis without disabling the ignition
- Advanced menu-driven interface for a complete charging system analysis in seconds
- Battery pack testing
Includes:
- Controller
- Tester pod with integrated printer
- CVG-2BT convergence module
- A657 amp clamp
- 2-ft battery test cables
- Charging/storage dock
- AC power adapter/charger
- Lead stud adapters
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Models | MDX-700HD Battery Conductance and Electrical System Analyzer
- Includes | MDX-700HD Series Analyzer, MDX-700HD, Software (installed), Manual, stud adapters, 15’ cable set, tool bag.
- Applications:
- Group 31
- Automotive
- Motorcycle
- Marine
- Lawn & Garden
- Group 31
- Commercial 4D/8D
- Display | 5-line Text/Graphical Backlit Display
- Operating Temperature | 0°C to +50°C (32°F to +122°F)
- Test Range:
- CCA: 100-2000 BY 5
- CA: 100-2000 BY 5
- MCA: 100-2000 BY 5
- JIS#: By Part Number
- EN: 100-2000 BY 5
- DIN: 100-1200 by 5
- SAE: 100-2000 by 5
- IEC: 100-1200 by 5
- Voltage Range | .9Vdc – 30Vdc
- Cable Length | 15’/455cm (standard)
- Power Requirements | Uses the power of the battery under test and 6 AA Internal Batteries
- Languages:
- English
- Spanish
- French Canadian
- Housing Material | Acid resistant ABS plastic
- Dimensions | 7.7” x 3.9” x 2.4” (19.5cm x 10cm x 5cm)
- Weight | 7 lbs
Midtronics MDX-700HD: Pack Testing A Class 8 Truck
