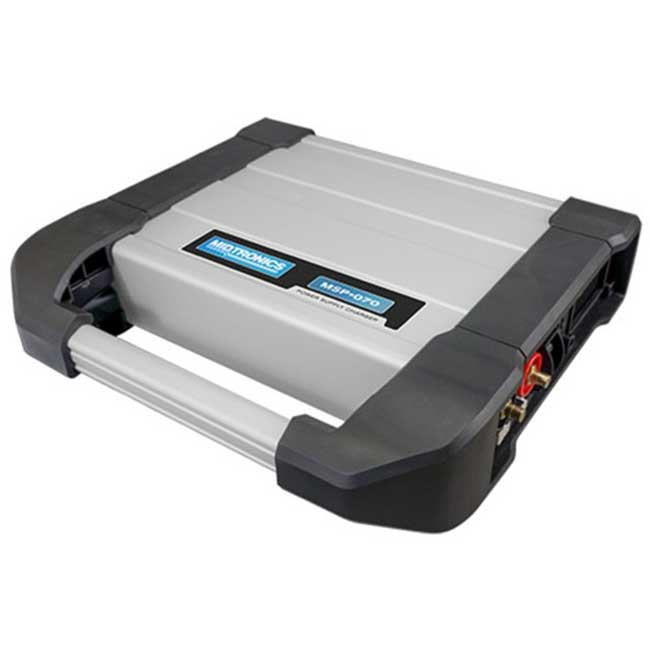

MIDTRONICS MSP-070-5 Power Supply Charger With Ac Power Cord, 5m Charge Cables
MIDTRONICS MSP-070-5 Power Supply Charger With Ac Power Cord, 5m Charge Cables
BRAND: MIDTRONICS
SKU: 070-5
In Stock
Couldn't load pickup availability
MIDTRONICS MSP-070-5 Power Supply Charger With Ac Power Cord, 5m Charge Cables
Part Number: PSC-550S KIT
Midtronics MSP-070-5 Power Supply Charger with AC power cord, 5m charge cables
Effective, easy-to-use charging solution designed for showroom & reflash applications
The Midtronics MSP-070 Power Supply Charger provides clean, reliable power for charging and maintaining battery state-of-charge during service reflash, complex maintenance, and in the showroom.
Features:
- Features selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types
- Avoid potential battery damage from drain during demos, display, or extended vehicle service
- Maintain vehicle electronic and accessory settings
- Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
- Certifications: UL, FCC, CEC (California), CUL, CE, RoHS
- MSP-070-5: Includes power supply charger, AC power cord, 5m field-replaceable charge cable
Includes:
- Power Supply Charger
- AC Power Cord

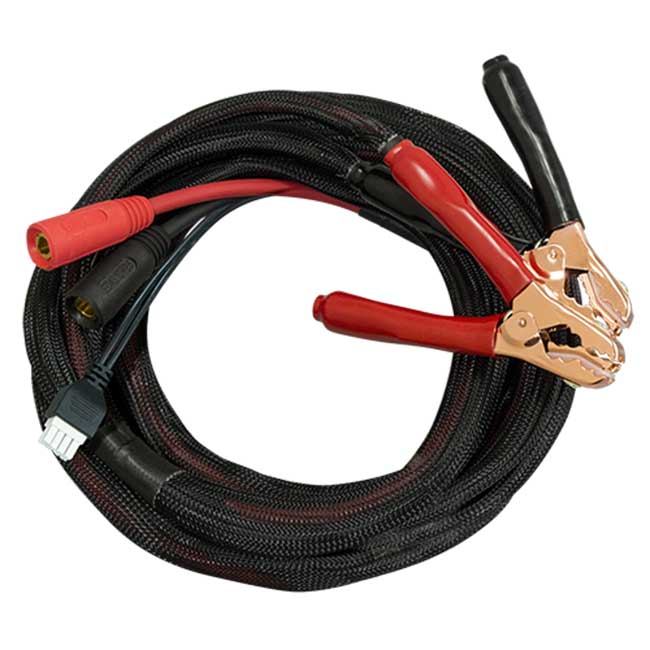

- 5m Field-Replaceable Charge Cables
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Applications
- Automotive
- Heavy-Duty
- Power Sports
- Group 31
- Commercial 4D/8D
Battery Chemistries
- Lead acid
- AGM
- EFB
Certifications
- UL • RoHS
- CUL • FCC
- CEC • CE
Operating Parameters
- Input Voltage: 110 - 240 VAC; 50 - 60 Hz; 12A max
- Output: 14.4 VDC; 70A maximum
Temperature
- Operating temperature range: 0°C to +60°C (32°F to +140°F)
- Storage temperature range: -10°C to + 85°C (14°F to 185°F)
Humidity
- 15% - 18% RH, non-condensing
Charge Cables (Field-replaceable)
- 2m (6.6 ft.) Standard
- 3m (9.8 ft.)
- 5m (16.4 ft.)
Power Cord
- Accepts locking C13 connector for
- region-specific power cables: United States: EMA 5-15 termination, rated at15A/125V UL CSA - EU & Latin America: 10A/250V
- IEC60320 / VDE
- Japan: PSE 15A/125V
Dimensions
- Height: 3.40 in (86.36 mm)
- Width: 10.24 in (260.00 mm)
- Length: 15.35 in (390.00 mm)
- Weight: 15.55 lbs (7.05 kg) w/o cables
- Weight: 19.43 lbs (8.78 kg) with cables
