MIDTRONICS PSC-550S KIT Fully Automatic 12v 55a Regulated Dc Power Supply & Case

MIDTRONICS PSC-550S KIT Fully Automatic 12v 55a Regulated Dc Power Supply & Case.

Part Number: PSC-550S KIT

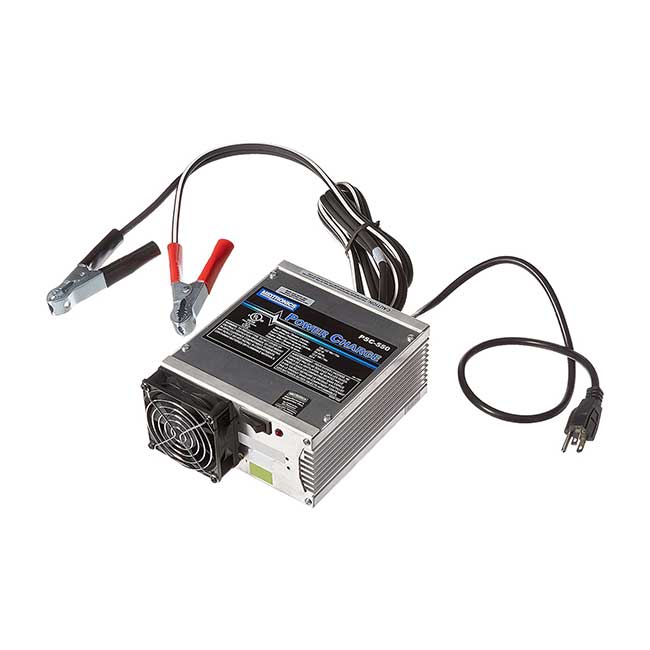

Midtronics PSC Power Supply Chargers are capable of providing a dependable and clean power source for both charging and maintaining the state-of-charge of batteries. These chargers have been specifically designed for utilization during service reflashing, complex maintenance tasks, or on the showroom floor. In power supply mode, the PSC effectively converts a 120 volt AC line input into a virtually noise-free and consistent 13.4 volt DC output.

When operating in battery charger mode, the PSC can provide a current up to the rated value for charging any 12 volt lead-acid battery that has been depleted of voltage. Upon completion of charging, the PSC detects the condition of the battery and reduces current output to maintain accessory loads, or offset any parasitic drain.

Features:

• Advanced switch-mode design
• Provides a cleaner, more reliable power source than using a standard charge
• Fully-regulated DC output prevents overcharging of the battery and provides precise control to maintain the necessary battery voltage during complex service and reflash
• Multiple protection features for a long, trouble-free life:
• Reverse battery polarity protection via replaceable fuses
• Brownout input protection
• Over-current protection; cycle-by-cycle peak limiting and rated current-limiting to maximize the life of the converter
• Over-temperature protection
• Quiet, small, and compact for portability
• Commercial design and heavy-duty internal components ensure years of continuous use
• Unique proportional fan control circuit
• Sets the fan speed directly proportional to the converters internal ambient temperature
• Enables the fan to turn on and off very slowly, minimizing unwanted fan-starting noise
• High quality, detachable cables for easy field service

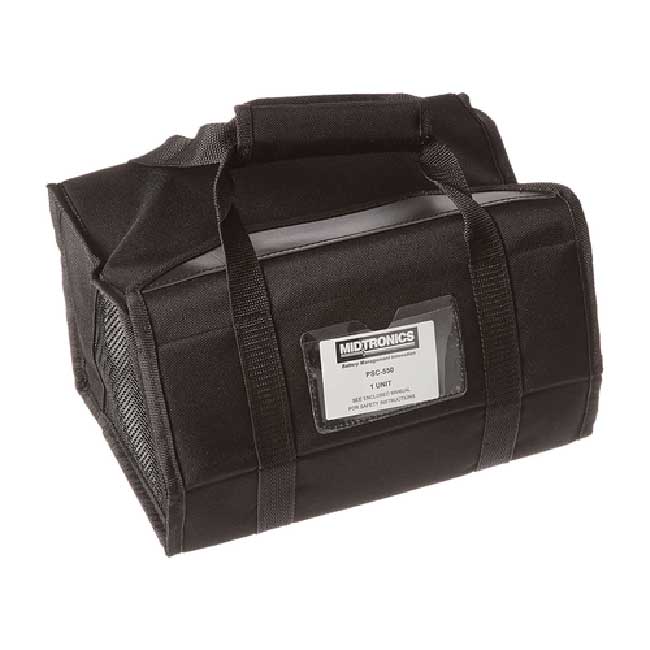

• Optional protective carrying case for storage or during use

Specifications

• Maximum amps output at regulated voltage: 55 A
• Output voltage tolerance (no load) + or - .7%
• Output voltage (full load) approx. 13.4 V (DC)
• Ripple and noise 50 mV rms
• Typical efficiency >100%
• Line regulation 100 mV rms
• Load regulation 1%
• Thermal protection
• Working temperature range 0-40C
• On/off switch with power LED indicator
• Fuse Protection: Internal breaker
• 3-stage charge controller
• 6 ft Removable clamp set
• Includes carrying case
