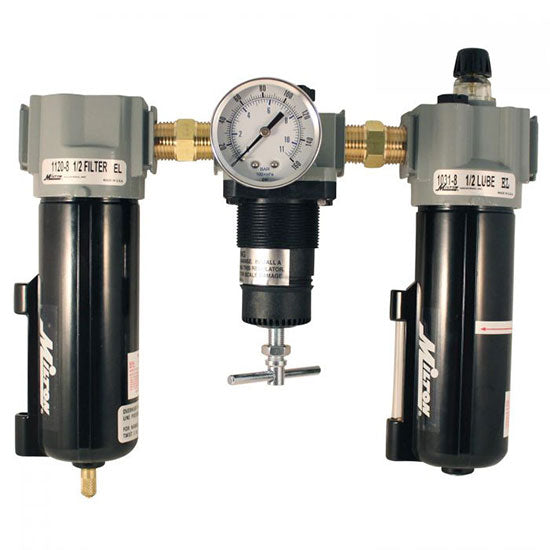

Milton Industries 1102 – 1/2 in. NPT Deluxe Polycarbonate FRL Trio
Part No. 1102
This 1/2 in. NPT deluxe FRL trio combines a filter, regulator, and lubricator into one pre-assembled system. The filter features an automatic overnight drain that activates when liquid accumulates. The relieving-type regulator exhausts downstream pressure above the preset level, while the drip-style lubricator offers precise control. Equipped with polycarbonate bowls and metal bowl guards, the unit also includes a pressure gauge and a 40-micron filter element. Provides up to 100 SCFM and supports up to 250 PSI.
Replacement bronze filter element: P1120-17
Key Features
- 1/2 in. NPT inlet and outlet
- Filter, regulator, and lubricator combined in one unit
- Automatic overnight drain in filter bowl
- Relieving-type regulator with pressure gauge
- Drip-style lubricator for accurate oil control
- Polycarbonate bowls with metal guards
- 40-micron bronze filter element
- Maximum working pressure: 250 PSI
- Flow rate: 100 SCFM
- Temperature range: 40°F to 150°F
- 100% tested before leaving the factory
- Made in the USA
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- FRL type: Filter/Regulator/Lubricator Trio
- Connection size: 1/2 in. NPT
- Maximum pressure: 250 PSI
- Flow rate: 100 SCFM
- Filter element: 40-micron bronze
- Drain type: Automatic overnight drain
- Dimensions: 7.5 in. L × 8.875 in. W × 2.75 in. H
- Made in USA: Yes
- Weight: n/a
- UPC: 30937303561
