Milton 1102m F-R-L Trio 1-2 in. NPT with Metal Bowls
Milton 1102m F-R-L Trio 1-2 in. NPT with Metal Bowls
Ships within (1 - 3 Business Days)
SKU: 1102m
Couldn't load pickup availability
Description

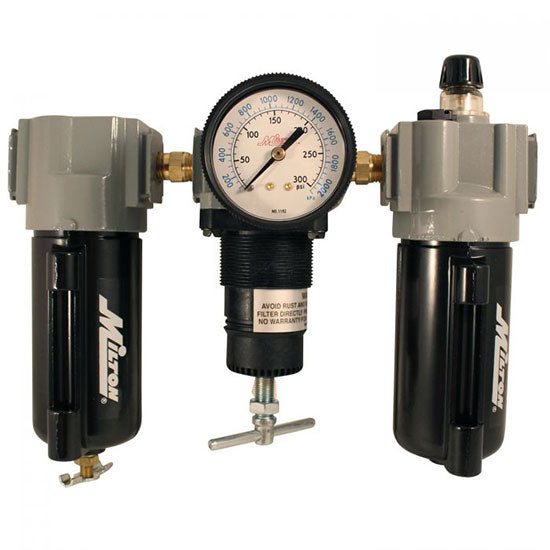

Milton Industries 1102M – FRL Trio 1/2 in. NPT with Metal Bowls
Part No. 1102M
This deluxe 1/2 in. NPT FRL trio includes a filter, regulator, and lubricator in one pre-assembled unit. The filter features an automatic overnight drain and a 40-micron bronze filter element. The relieving-type regulator and drip-style lubricator are housed in metal bowls for durability. The unit comes complete with a gauge and brass fittings, delivering up to 100 SCFM at a maximum pressure of 250 PSI.
Replacement bronze filter element: P1120-17
Key Features
- 1/2 in. NPT inlet and outlet
- Filter, regulator, and lubricator combined in one compact unit
- Automatic overnight drain on filter
- Relieving-type regulator with included gauge
- Drip-style lubricator
- 40-micron bronze filter element
- Metal bowls for increased durability
- Maximum working pressure: 250 PSI
- Maximum flow rate: 100 SCFM
- Operating temperature range: 40°F to 150°F
- Made in the USA
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- FRL type: Filter/Regulator/Lubricator Trio
- Connection size: 1/2 in. NPT inlet
- Maximum pressure: 250 PSI
- Flow rate: 100 SCFM
- Filter element: 40-micron bronze
- Drain type: Automatic overnight drain
- Dimensions: 10.25 in. L × 8.5 in. W × 2.75 in. H
- Made in USA: Yes
- Weight: n/a
- UPC: 30937313713
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
Shipping Responsibility Disclaimer
Once a package is marked as "Delivered" by the carrier, we are no longer responsible for its whereabouts unless you specifically requested a signature requirement at checkout. If no signature is requested and the package goes missing after delivery, we cannot be held liable for the loss. Additionally, any delivery issues must be reported to us within 12 hours of the marked delivery time. Failure to notify us within this timeframe may result in a forfeiture of claims, as delayed reporting significantly reduces the chances of locating a misdelivered package. If you would like to add insurance to your shipment to protect against potential loss or theft, please inform us before your order ships. Insurance is not included by default.
*Note: If you are having trouble checking out, please call us at (321)-423-5290.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
Limited Information
Every Milton® product is subject to a limited warranty, to the original purchaser only, to be free from defects in material and workmanship. Subject to certain exceptions referenced herein, Milton Industries INC®. will, at its option, replace or issue credit for a Milton® product which, after examination, is determined by Milton® to be defective in material or workmanship for a period of one (1) year after the date of purchase (certain Milton® products carry a limited warranty of up to 3 years as indicated on that product). Milton® customers must contact our Global Customer Service team to obtain an “RMA” (Returned Merchandise Authorization) form before sending any product back for credit or replacement.
Return the product, copy of proof of purchase, and pre‐approved “RMA” Number listed on the outside of the box to the Milton® factory (address listed below), freight prepaid and insured. This limited warranty does not apply to damage Milton® determines to be from repairs made or attempted by anyone other than Milton Industries INC®. authorized personnel, misuse, abuse, normal wear and tear, lack of maintenance, or accidents. Milton® products which have been damaged due to being dropped, with a cracked or broken housing are considered misuse versus normal wear and tear and NOT covered under the terms of this limited warranty. Product deemed in need of replacement due to being ‘worn out’ and/or due to the product having ‘reached its end of life’ from high use application that would ‘wear out’ the product within course of one (1) year or less is excluded and NOT covered under the terms of this limited warranty.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED. MILTON INDUSTRIES, INC®., MAKES NO EXPRESS OR IMPLIED WARRANTY WHATSOEVER OF MERCHANTABILITY, FITNESS FOR ANY PURPOSE OR OTHERWISE. THE LIABILITY OF MILTON INDUSTRIES, INC®., UNDER THIS LIMITED WARRANTY IS LIMITED TO THE REPLACEMENT OR ISSUANCE OF CREDIT FOR A DEFECTIVE PRODUCT AS DETAILED ABOVE, AND UNDER NO CIRCUMSTANCES SHALL MILTON INDUSTRIES, INC®., BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING, WITHOUT LIMITATION, LIABILITY FOR LOST PROFITS.
Warranty Registration should be done direct on the Manufacturers website Milton Industries, INC®.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Milton Industries, INC® directly.
