Milton 1139-1 - 1/4 in. FNPT Electronic Compressor Tank Drain
Milton 1139-1 - 1/4 in. FNPT Electronic Compressor Tank Drain
Ships within (1 - 3 Business Days)
SKU: 1139-1
Couldn't load pickup availability
Description

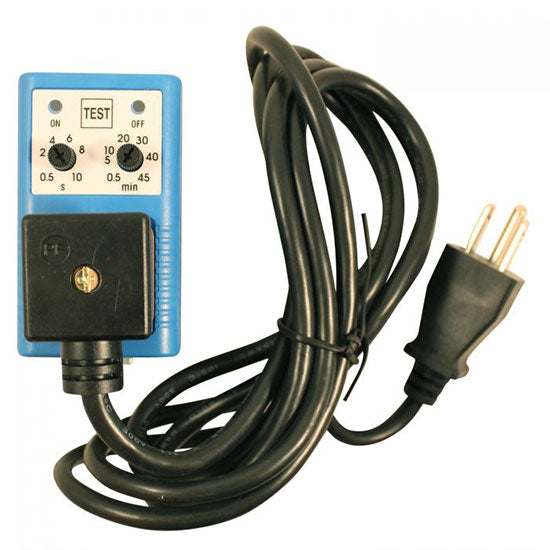

Milton Industries 1139-1 - 1/4 in. FNPT Electronic Compressor Tank Drain
Part No. 1139-1
This electronically adjustable compressor tank drain helps maintain dry air by automatically purging water from the tank. It features two 2-way direct-acting forged brass valves with a manual test switch. Mountable in any position, the unit includes a 6 ft. power cord and operates at 115V / 1 phase / 60 Hz with a pressure range of 0 to 230 PSI.
Key Features
- 1/4 in. female NPT connection
- Automatically drains compressor tank to maintain dry air
- Adjustable discharge interval: 0.5 to 45 minutes
- Adjustable discharge duration: 0.5 to 10 seconds
- Temperature range: 40°F to 140°F
- Manual test switch included
- 6 ft. power cord, 115V / 1 phase / 60 Hz
- Working pressure range: 0 to 230 PSI
- Mountable in any position
- Made in the USA
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Connection size: 1/4 in. FNPT
- Power: 115V, 1 phase, 60 Hz
- Pressure range: 0 to 230 PSI
- Discharge interval: Adjustable 0.5 to 45 minutes
- Discharge duration: Adjustable 0.5 to 10 seconds
- Temperature range: 40°F to 140°F
- Mounting: Any position
- Dimensions: 3.5 in. L × 3 in. W × 1.75 in. H
- Made in USA: Yes
- Weight: n/a
- UPC: 30937308436
