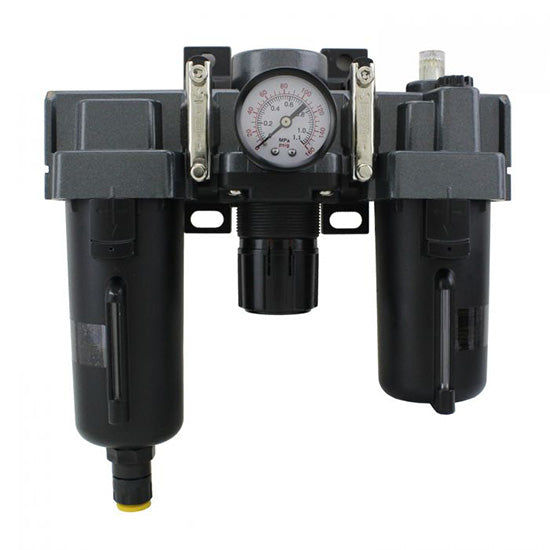

Milton EX45FRL40A-02M FRL, 1/4" NPT Metal Bowl w/ 5 to120 PSI Gauge
Milton EX45FRL40A-02M FRL, 1/4" NPT Metal Bowl w/ 5 to120 PSI Gauge
BRAND: Milton Industries
SKU: EX45FRL40A-02M
In Stock
Couldn't load pickup availability
Milton Industries EX45FRL40A-02M – 1/4 in. NPT FRL Air Filter, Regulator & Lubricator System with Metal Bowl
Part No. EX45FRL40A-02M
The EXELAIR by Milton Simply Better Air® system combines a 1/4 in. NPT air filter, regulator, and lubricator in one space-saving assembly. The cast aluminum body includes a metal bowl with sight glass, a 7.4 oz. filter bowl capacity, and 4.56 oz. lubricator bowl capacity. The automatic float drain can be manually emptied via the shut-off valve. The regulator features a locking adjustment knob and large 1-5/8 in. dial gauge (PSI/MPa). The lubricator allows for top-fill or bowl removal and delivers a steady mist of oil through the airline. Offers a maximum air flow of 110 CFM and up to 145 PSI operating pressure. Comes fully assembled with bracket and hardware. Use Milton filter S-1118-1RP for replacements.
Key Features
- 1/4 in. NPT inlet and outlet
- Filter, regulator, and lubricator combined
- Cast aluminum body with metal bowl and sight glass
- 7.4 oz. filter bowl and 4.56 oz. lubricator bowl capacities
- Locking pressure knob and large dial gauge (0-160 PSI)
- Automatic float drain with manual shut-off option
- Push-to-connect tubing drain port
- Oil fill cap accessible from the top
- Max air flow: 110 CFM
- Operating pressure range: 5 to 145 PSI
- Temperature range: 25°F to 140°F
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Connection size: 1/4 in. NPT
- Body material: Cast aluminum
- Filter bowl capacity: 7.4 oz.
- Lubricator bowl capacity: 4.56 oz.
- Drain type: Automatic float with manual override
- Pressure gauge range: 0–160 PSI / 0–1.1 MPa
- Adjustment range: 5–120 PSI
- Max operating pressure: 145 PSI
- Max air flow: 110 CFM
- Temperature range: 25°F to 140°F
- Weight: n/a
- UPC: 030937307934
