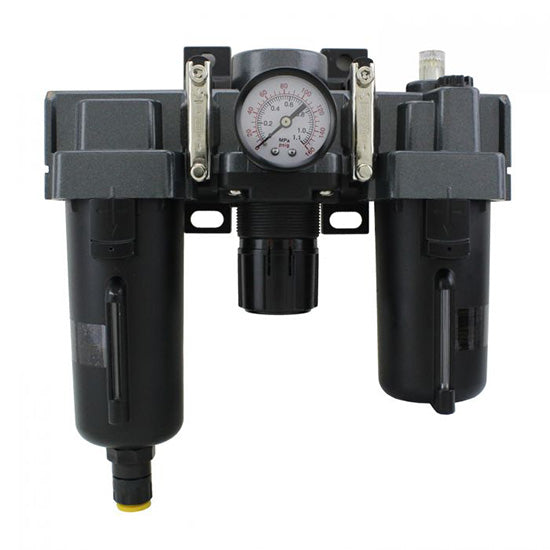

Milton Industries EX45FRL40A-04M – FRL Air Filter, Regulator, and Lubricator System – 1/2 in. NPT
Part No. EX45FRL40A-04M
EXELAIR by Milton’s Simply Better Air® system offers a compact and reliable solution for compressed air management. This 1/2 in. NPT FRL trio includes a filter, regulator, and lubricator in a single pre-assembled unit. The metal bowl filter includes a 7.4 oz. capacity, sight glass, and automatic drain (with manual override). The center-mounted regulator includes a locking adjustment knob and 1 5/8 in. dual-scale dial gauge. The lubricator delivers a consistent oil mist with a 4.56 oz. bowl and top-fill capability. Ideal for extending tool life while maintaining air line efficiency.
System handles up to 140 CFM with a max pressure of 145 PSI. Includes mounting bracket and hardware. Use Milton replacement filter #S-1118-1RP. Install FR unit 20 ft. downstream of compressor to optimize performance.
Key Features
- 1/2 in. NPT inlet and outlet
- Integrated FRL system saves space and improves performance
- Filter bowl: 7.4 oz. capacity with sight glass and auto/manual drain
- Regulator with lockout knob and PSI/MPa dial gauge
- Lubricator with 4.56 oz. bowl and top oil fill cap
- Consistent oil mist for extending tool life
- Max airflow: 140 CFM
- Max operating pressure: 145 PSI
- Temperature range: 25°F to 140°F
- Includes mounting bracket and hardware
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Connection size: 1/2 in. NPT inlet and outlet
- Filter bowl capacity: 7.4 oz
- Lubricator bowl capacity: 4.56 oz
- Adjustment range: 5 to 120 PSI
- Max pressure: 145 PSI
- Max airflow: 140 CFM
- Temperature range: 25°F to 140°F
- Includes: Mounting bracket and hardware
- Made in USA: n/a
- Weight: n/a
- UPC: 030937320605
