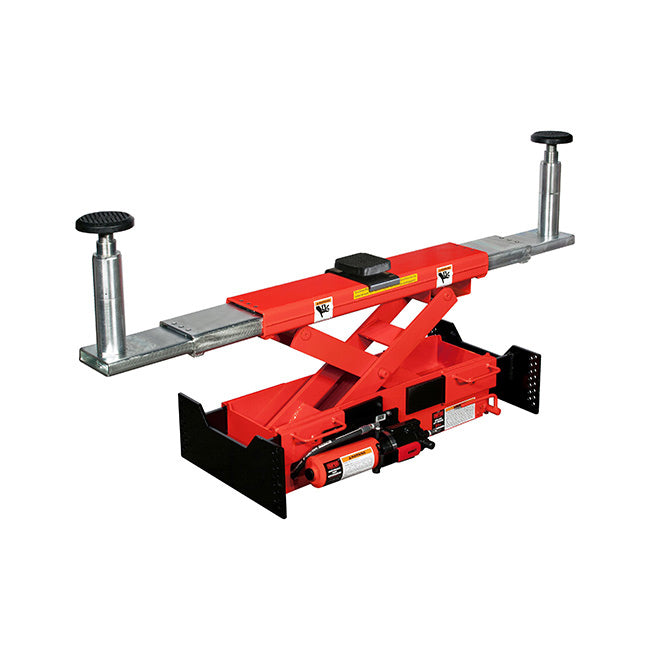

Norco Lifting 79324G – 3 Ton Capacity Air / Hydraulic Pump Operated Rolling Lift Bridge
Norco Lifting 79324G – 3 Ton Capacity Air / Hydraulic Pump Operated Rolling Lift Bridge
Ships within (1 - 3 Business Days)
SKU: 79324G
Couldn't load pickup availability
Description
Norco Lifting 79324G – 3 Ton Capacity Air / Hydraulic Pump Operated Rolling Lift Bridge
Model Number: 79324G
- Push button air/hydraulic pump provides safe, quick lifting up to 9 in. which allows for a maximum lift height of 18-3/8 in. when using both adapters and extension screw extended.
- The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 63 in..
- Universal mounting brackets adjust to a lift rail range of 32 in. to 46-1/2 in..
- Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails. These brackets are sold separately.
- Mechanical stop prevents accidental lowering of bridge.
- Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop.
- Equipped with rubber faced saddle for differential lifting.
- Included lift adapters: (2) 3-1/2 in. Adapters, (2) 5 in. Adapters, and (2) Padded Saddles w/ Extension Screws
- Available mounting adapters: 79326D : Flat-End Adapter Bracket Kit 79327D : Hook-End Adapter Bracket Kit
- Overall width from outside edge of lift pad: - Arms retracted: 39-7/8 in. - Arms extended: 63 in.
Used in quick lube pit applications or in conjunction with above ground lifts. The bridge straddles the lift rails and raises the vehicle's tires off the rails for wheel alignment, brake, tire and suspension work.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Stroke: 9 in
- Length: 39.875 in
- Width: 21.5 in
- Height: 34.6875 in
- Shipping Weight: 325 lbs
