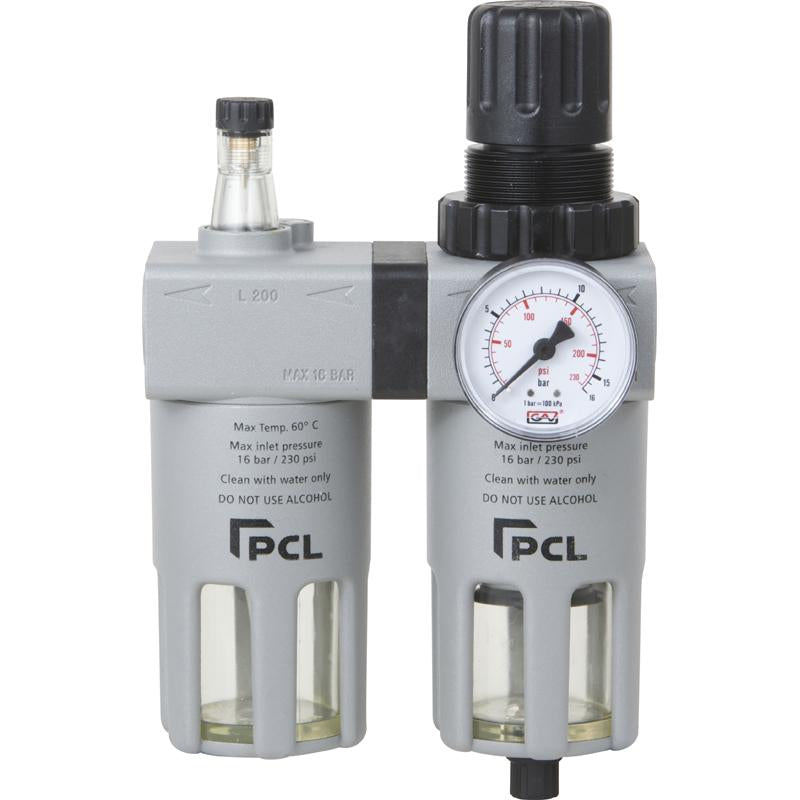

PCL Tire Inflation ATCFRL12 Filter-Regulator-Lubricator, 1/2 in. NPT (16 Bar)
Part Number: ATCFRL12
The PCL ATCFRL12 FRL unit combines filtering, regulation, and lubrication to deliver optimal compressed air treatment. It removes contaminants, regulates pressure from 0–232 psi, and supplies consistent lubrication for pneumatic tools. This unit features a 10-micron filter, locking adjustment knob, polycarbonate bowl with metal guard, and includes a wall bracket and pressure gauge.
Key Features & Benefits
- Manual/semi-automatic drain
- 10 micron filter element
- Locking pressure adjustment knob
- Polycarbonate bowl with metal guard
- Includes wall bracket and pressure gauge
- Tool lubrication with 50 ml oil reservoir
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Air Treatment Type: Filter-Regulator-Lubricator
- Filtration Size: 10 micron
- Inlet Connection: 1/2 in. NPT
- Outlet Connection: 1/8 in. NPT
- Max Inlet Pressure: 230 psi
- Adjustment Range: 0–230 psi
- Flow Rate: 1320 gal/min @ 87 psi
- Oil Capacity: 1.69 fl. oz. (50 ml)
- Drain Type: Manual / Semi-Automatic
- Operating Temperature: 14–140°F
- Lubrication Adjustment: 10.6–21.2 CFM
- EAN: 5014875890531
- Shipping Weight: 3.21 lbs
